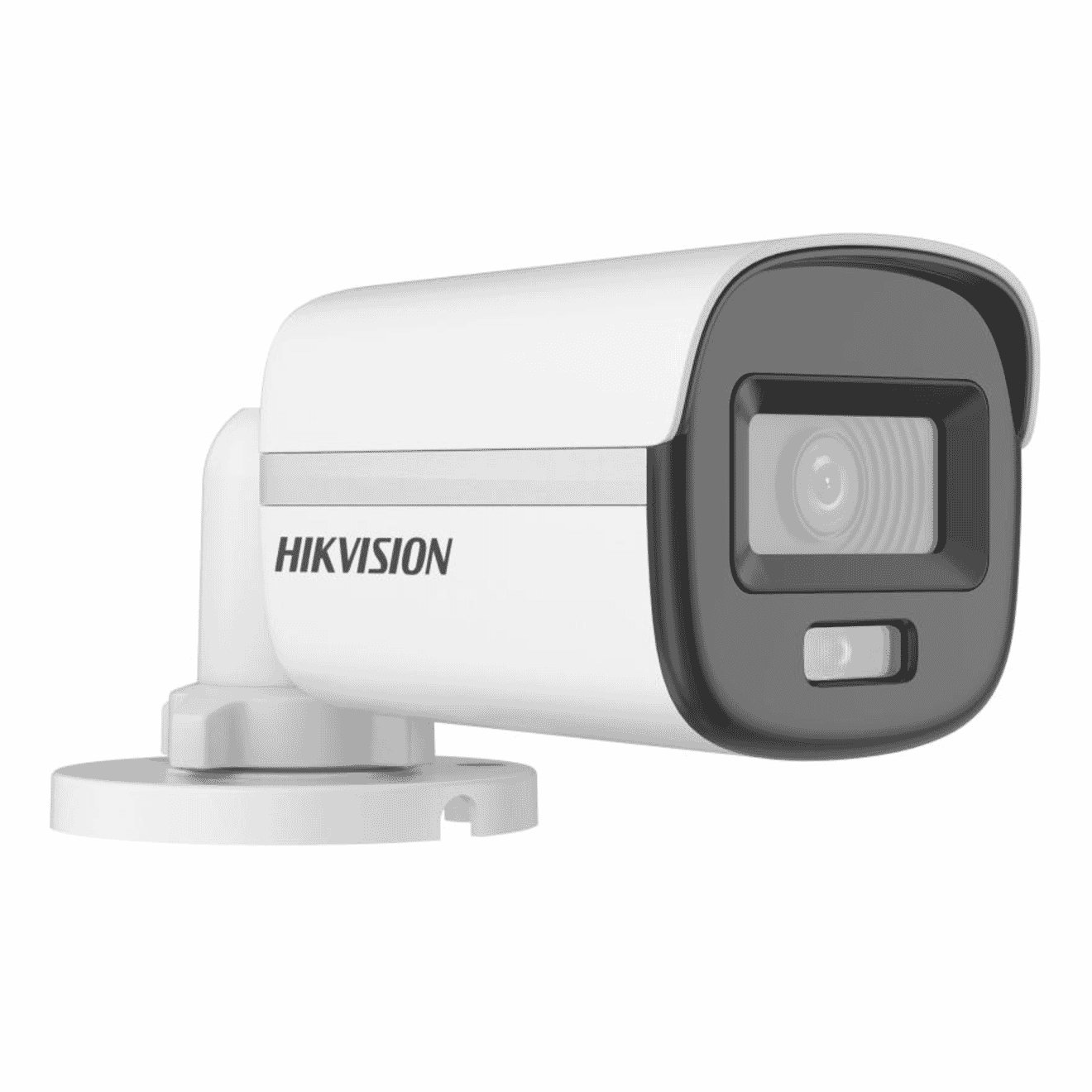

Hikvision DS-2CE10KF3T-LE(2.8mm) 3K ColorVu Smart hybrid light Fixed Bullet Camera

Hikvision DS-2CE10KF3T-LE(2.8mm) 3K ColorVu Smart hybrid light Fixed Bullet Camera

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 5MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE10KF3T-LE(2.8mm) 3K ColorVu Smart hybrid light Fixed Bullet Camera
Login to View Price

Specifications

  • Image Sensor: 3K CMOS
  • Max. Resolution: 2960 (H) × 1665 (V)
  • Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
  • Lens Type: 2.8 mm and 3.6 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 105°, vertical FOV: 59°, diagonal FOV: 139°3.6 mm, horizontal FOV: 80°, vertical FOV: 49°, diagonal FOV: 105°
  • Lens Mount: M12
  • Supplement Light Type: Smart, IR, White Light
  • Supplement Light Range: IR: Up to 20 m,White Light: Up to 20 m
  • Smart Supplement Light: Yes
  • Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
  • Image Settings: Anti-Banding;Mirror;Contrast;Brightness;Smart Light
  • Wide Dynamic Range (WDR): =130 dB
  • Image Enhancement: WDR;BLC;HLC;Global;HLS
  • Privacy Mask: 4 programmable privacy masks/8programmable privacy masks
  • Power: 12 VDC±25%, PoC.af, max. 5.7 W,*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: 161.1 mm × 68.4 mm × 65.2 mm (6.34" × 2.69" × 2.57")
  • Weight: Approx. 440 g (0.97 lb.)
  • Language: English
  • Protection: IP67
  • Signal System: PAL/NTSC
  • Frame Rate: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
  • AGC: Yes
  • Day/Night Mode: Auto/Color
  • White Balance: Auto/Outdoor/Global/Manual
  • Noise Reduction: 3D DNR/2D DNR
  • Video Output: 1 HD analog output
  • Motion Detection: 4 programmable motion areas
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
  • Material: Metal
  • Communication: HIKVISION-C

Camera
  • Image Sensor: 3K CMOS
  • Max. Resolution: 2960 (H) × 1665 (V)
  • Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

Lens
  • Lens Type: 2.8 mm and 3.6 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 105°, vertical FOV: 59°, diagonal FOV: 139°3.6 mm, horizontal FOV: 80°, vertical FOV: 49°, diagonal FOV: 105°
  • Lens Mount: M12

Illuminator
  • Supplement Light Type: Smart, IR, White Light
  • Supplement Light Range: IR: Up to 20 m,White Light: Up to 20 m
  • Smart Supplement Light: Yes

  • Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
  • Image Settings: Anti-Banding;Mirror;Contrast;Brightness;Smart Light
  • Wide Dynamic Range (WDR): =130 dB
  • Image Enhancement: WDR;BLC;HLC;Global;HLS
  • Privacy Mask: 4 programmable privacy masks/8programmable privacy masks

General
  • Power: 12 VDC±25%, PoC.af, max. 5.7 W,*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: 161.1 mm × 68.4 mm × 65.2 mm (6.34" × 2.69" × 2.57")
  • Weight: Approx. 440 g (0.97 lb.)
  • Language: English

Approval
  • Protection: IP67

Other
  • Signal System: PAL/NTSC
  • Frame Rate: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
  • AGC: Yes
  • Day/Night Mode: Auto/Color
  • White Balance: Auto/Outdoor/Global/Manual
  • Noise Reduction: 3D DNR/2D DNR
  • Video Output: 1 HD analog output
  • Motion Detection: 4 programmable motion areas
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
  • Material: Metal
  • Communication: HIKVISION-C
