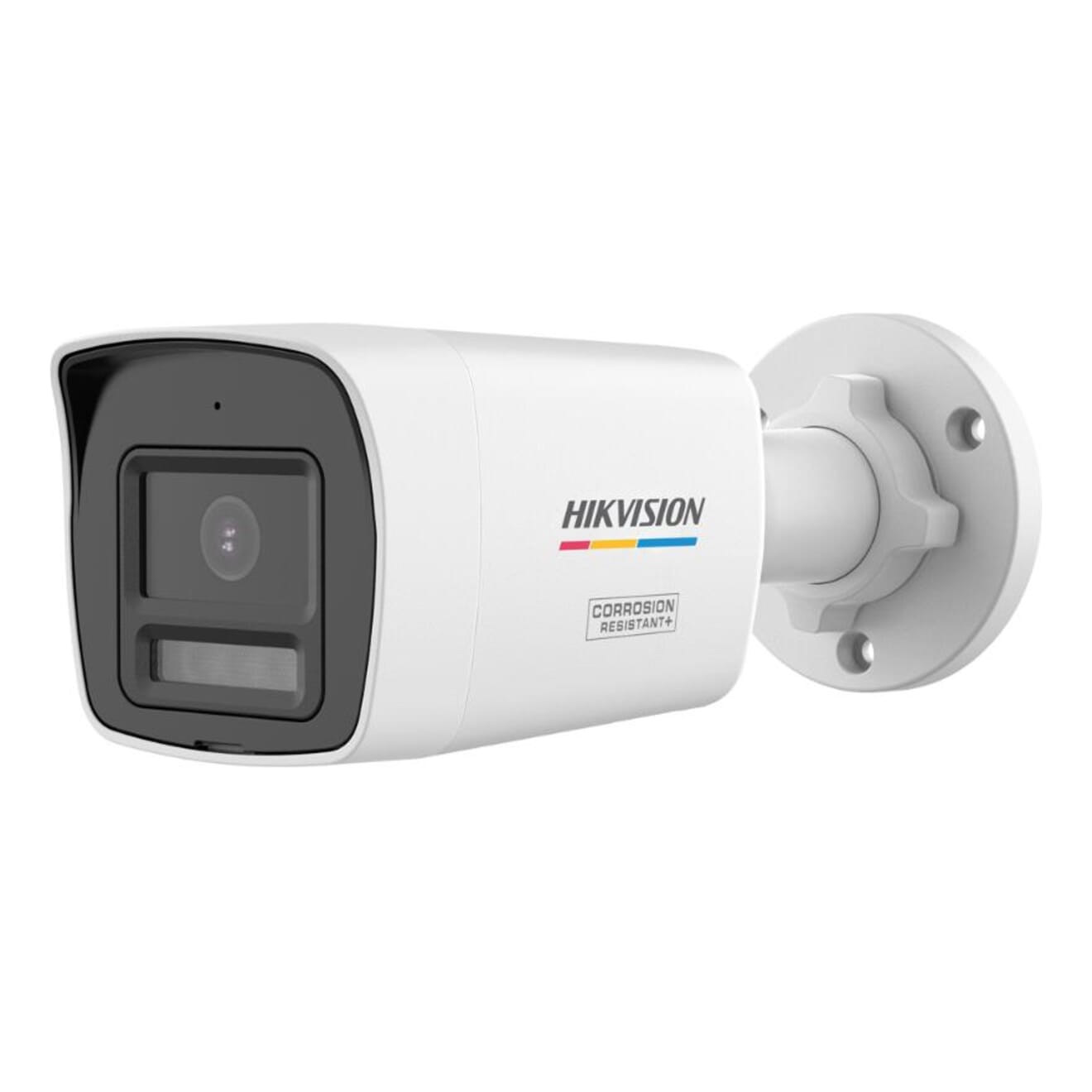

Hikvision DS-2CE10KF3T-LSYE (2.8mm) 3K Smart Hybrid ColorVu Mini Bullet Camera

Hikvision DS-2CE10KF3T-LSYE (2.8mm) 3K Smart Hybrid ColorVu Mini Bullet Camera

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 5MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE10KF3T-LSYE (2.8mm) 3K Smart Hybrid ColorVu Mini Bullet Camera
Login to View Price

Specifications

  • Image Sensor: 3 K CMOS
  • Max. Resolution: 2960 (H) × 1665 (V)
  • Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0° to 360°,Tilt: 0° to 90°,Rotate: 0° to 360°
  • Lens Type: 2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 112°, vertical FOV: 60°, diagonal FOV: 140°3.6 mm, horizontal FOV: 90°, vertical FOV: 49°, diagonal FOV: 105°
  • Lens Mount: M12
  • Supplement Light Type: Smart,IR,White Light
  • Supplement Light Range: IR: Up to 30 m,White Light: Up to 20 m
  • Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
  • Image Settings: Saturation,Brightness,Contrast,Sharpness,Anti-banding,AGC
  • Wide Dynamic Range (WDR): =130 dB
  • Image Enhancement: BLC,HLC,Global,HLS,WDR,Face AE
  • Privacy Mask: 4 programmable polygon privacy masks
  • Power: 12 VDC ± 25%, max. 7 W, PoC.at,*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: 179 mm × 66 mm × 69.1 mm (7.05" × 2.6" × 2.72")
  • Weight: Approx. 460 g (1.01 lb.)
  • Language: English
  • Protection: IP67
  • Signal System: PAL/NTSC
  • Slow Shutter: Max. 16 times
  • Pickup Distance: In a radius of up to 5 m
  • Amount: 1
  • Frame Rate: TVI: 3K @20 fps/25 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
  • Day/Night Mode: Auto/Color
  • Noise Reduction: 3D DNR
  • White Balance: Auto,Manual
  • Video Output: 1 HD analog output
  • Material: Metal
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
  • Communication: HIKVISION-C
  • Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)

Camera
  • Image Sensor: 3 K CMOS
  • Max. Resolution: 2960 (H) × 1665 (V)
  • Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0° to 360°,Tilt: 0° to 90°,Rotate: 0° to 360°

Lens
  • Lens Type: 2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 112°, vertical FOV: 60°, diagonal FOV: 140°3.6 mm, horizontal FOV: 90°, vertical FOV: 49°, diagonal FOV: 105°
  • Lens Mount: M12

Illuminator
  • Supplement Light Type: Smart,IR,White Light
  • Supplement Light Range: IR: Up to 30 m,White Light: Up to 20 m

  • Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
  • Image Settings: Saturation,Brightness,Contrast,Sharpness,Anti-banding,AGC
  • Wide Dynamic Range (WDR): =130 dB
  • Image Enhancement: BLC,HLC,Global,HLS,WDR,Face AE
  • Privacy Mask: 4 programmable polygon privacy masks

General
  • Power: 12 VDC ± 25%, max. 7 W, PoC.at,*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: 179 mm × 66 mm × 69.1 mm (7.05" × 2.6" × 2.72")
  • Weight: Approx. 460 g (1.01 lb.)
  • Language: English

Approval
  • Protection: IP67

Other
  • Signal System: PAL/NTSC
  • Slow Shutter: Max. 16 times
  • Pickup Distance: In a radius of up to 5 m
  • Amount: 1
  • Frame Rate: TVI: 3K @20 fps/25 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
  • Day/Night Mode: Auto/Color
  • Noise Reduction: 3D DNR
  • White Balance: Auto,Manual
  • Video Output: 1 HD analog output
  • Material: Metal
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
  • Communication: HIKVISION-C
  • Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
