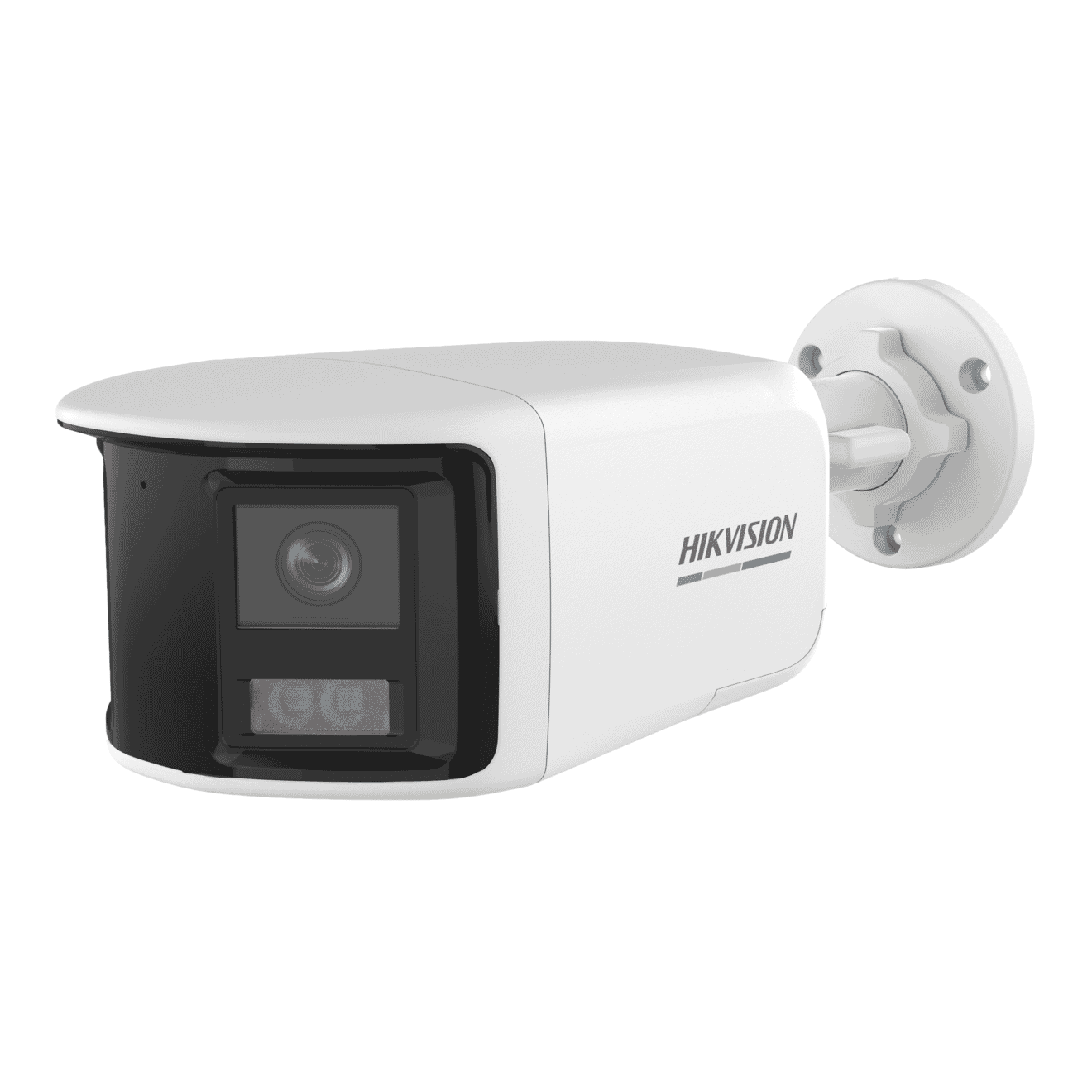

Hikvision DS-2CE12KF3TP-DLS 5MP Fixed Bullet Camera Smart Hybrid Light Audio

Hikvision DS-2CE12KF3TP-DLS 5MP Fixed Bullet Camera Smart Hybrid Light Audio

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 5MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE12KF3TP-DLS 5MP Fixed Bullet Camera Smart Hybrid Light Audio
Login to View Price

Specifications

  • Image Sensor: 3K CMOS
  • Max. Resolution: 3328 (H) × 1504 (V)
  • Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: 1/20 s to 1/50,000 s
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
  • Lens Type: 2.8 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 180°, vertical FOV: 75°
  • Lens Mount: M12
  • Supplement Light Range: IR: Up to 40 m,White Light: Up to 40 m
  • Smart Supplement Light: Yes
  • Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
  • Image Settings: Brightness;Contrast;Smart IR;Sharpness;Anti-Banding;AGC
  • Wide Dynamic Range (WDR): =130 dB
  • Image Enhancement: WDR;BLC;HLC;Global
  • Privacy Mask: 4 programmable privacy masks
  • Power: 12 VDC ± 25%, max. 8.9 W*You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.
  • Dimension: 234.46 mm × 103.58 mm × 76.01 mm (9.23" × 4.08" × 2.99")
  • Weight: Approx. 630 g (1.39 lb.)
  • Language: English
  • Protection: IP67
  • Slow Shutter: Max. 16 times
  • Frame Rate: 3K @20 dual
  • Day/Night Mode: Auto
  • White Balance: Auto/Manual
  • Noise Reduction: 3D DNR
  • Video Output: 1 HD analog output
  • Built-in Microphone: Yes
  • Motion Detection: 4 programmable motion areas
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
  • Material: Front cover: Metal, Main body: Plastic
  • Communication: HIKVISION-C

Camera
  • Image Sensor: 3K CMOS
  • Max. Resolution: 3328 (H) × 1504 (V)
  • Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: 1/20 s to 1/50,000 s
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°

Lens
  • Lens Type: 2.8 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 180°, vertical FOV: 75°
  • Lens Mount: M12

Illuminator
  • Supplement Light Range: IR: Up to 40 m,White Light: Up to 40 m
  • Smart Supplement Light: Yes

  • Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
  • Image Settings: Brightness;Contrast;Smart IR;Sharpness;Anti-Banding;AGC
  • Wide Dynamic Range (WDR): =130 dB
  • Image Enhancement: WDR;BLC;HLC;Global
  • Privacy Mask: 4 programmable privacy masks

General
  • Power: 12 VDC ± 25%, max. 8.9 W*You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.
  • Dimension: 234.46 mm × 103.58 mm × 76.01 mm (9.23" × 4.08" × 2.99")
  • Weight: Approx. 630 g (1.39 lb.)
  • Language: English

Approval
  • Protection: IP67

Other
  • Slow Shutter: Max. 16 times
  • Frame Rate: 3K @20 dual
  • Day/Night Mode: Auto
  • White Balance: Auto/Manual
  • Noise Reduction: 3D DNR
  • Video Output: 1 HD analog output
  • Built-in Microphone: Yes
  • Motion Detection: 4 programmable motion areas
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
  • Material: Front cover: Metal, Main body: Plastic
  • Communication: HIKVISION-C

Resources

Access comprehensive documentation, installation guides, and the latest updates to get the most out of your device.

Need additional support? Visit our

documentation center or contact support
