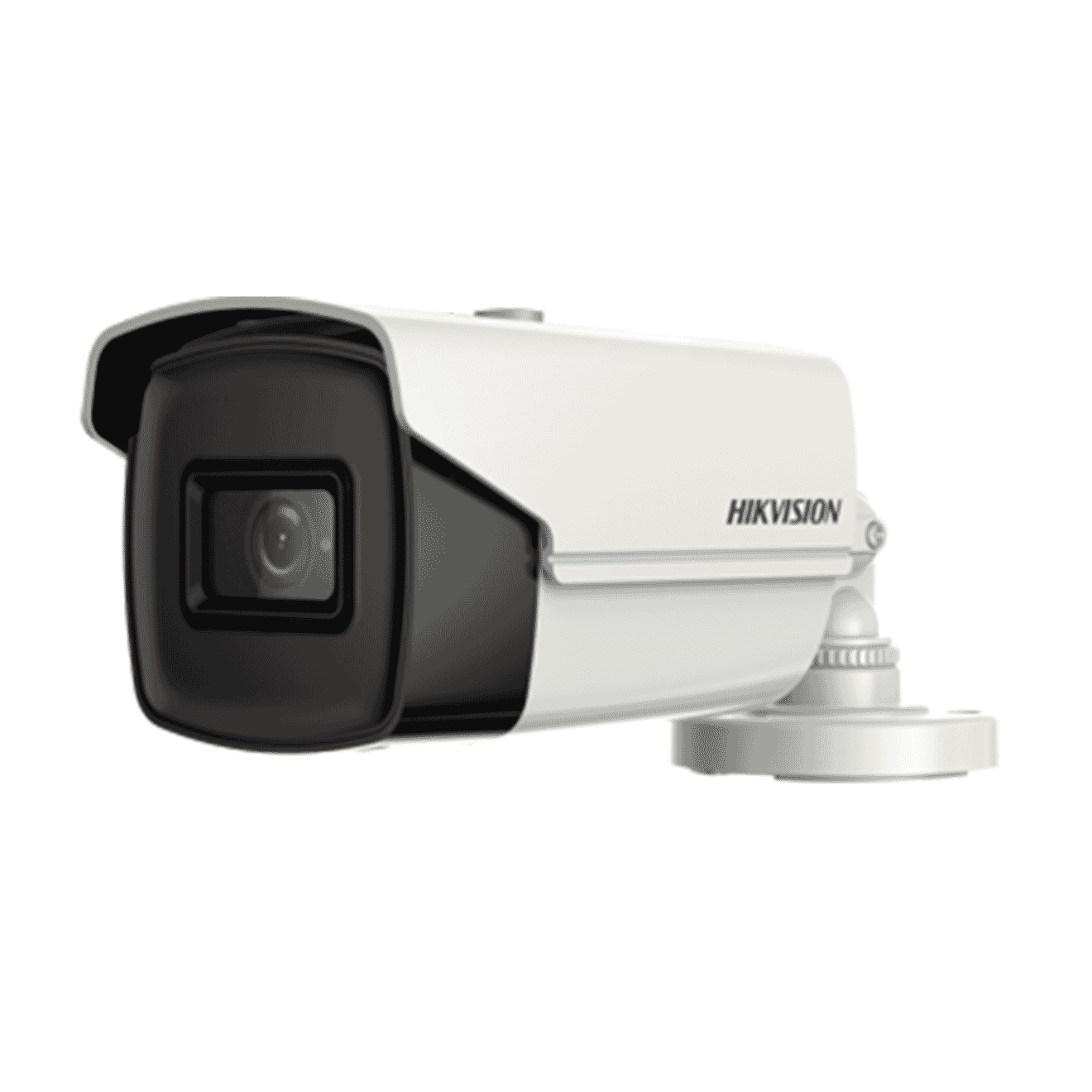

Hikvision DS-2CE16U1T-IT3F 8MP 3.6mm EXIR Fixed Bullet Analogue Camera

Hikvision DS-2CE16U1T-IT3F 8MP 3.6mm EXIR Fixed Bullet Analogue Camera

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 8MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE16U1T-IT3F 8MP 3.6mm EXIR Fixed Bullet Analogue Camera
Login to View Price

Specifications

  • Image Sensor: 8.29 MP progressive scan CMOS
  • Max. Resolution: 3840 (H) × 2160 (V)
  • Min. Illumination: 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
  • Lens Type: 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
  • Focal Length & FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm), 37.73° (8 mm), 23.96° (12 mm)
  • Lens Mount: M16
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 60 m
  • Smart Supplement Light: Yes
  • Image Settings: Brightness;Sharpness;AGC
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: BLC;HLC
  • Power: 12 VDC ± 25%, max. 5.3 W*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: 81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58" )
  • Weight: Approx. 435 g (0.96 lb.)
  • Language: English
  • Protection: IP67
  • Signal System: PAL/NTSC
  • Frame Rate: TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fpsCVI: 8MP@12.5fps, 8MP@15fpsAHD: 8M@12.5fps, 8M@15fpsCVBS: 960H P/N
  • Day/Night Mode: Auto/Color/BW (Black and White)
  • Noise Reduction: 2D DNR
  • White Balance: Auto/Manual
  • Video Output: Switchable TVI/AHD/CVI/CVBS;1 HD analog output
  • Material: Front cover: Metal, Main body: Plastic
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
  • Communication: HIKVISION-C

Camera
  • Image Sensor: 8.29 MP progressive scan CMOS
  • Max. Resolution: 3840 (H) × 2160 (V)
  • Min. Illumination: 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°

Lens
  • Lens Type: 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
  • Focal Length & FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm), 37.73° (8 mm), 23.96° (12 mm)
  • Lens Mount: M16

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 60 m
  • Smart Supplement Light: Yes

  • Image Settings: Brightness;Sharpness;AGC
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: BLC;HLC

General
  • Power: 12 VDC ± 25%, max. 5.3 W*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: 81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58" )
  • Weight: Approx. 435 g (0.96 lb.)
  • Language: English

Approval
  • Protection: IP67

Other
  • Signal System: PAL/NTSC
  • Frame Rate: TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fpsCVI: 8MP@12.5fps, 8MP@15fpsAHD: 8M@12.5fps, 8M@15fpsCVBS: 960H P/N
  • Day/Night Mode: Auto/Color/BW (Black and White)
  • Noise Reduction: 2D DNR
  • White Balance: Auto/Manual
  • Video Output: Switchable TVI/AHD/CVI/CVBS;1 HD analog output
  • Material: Front cover: Metal, Main body: Plastic
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
  • Communication: HIKVISION-C
