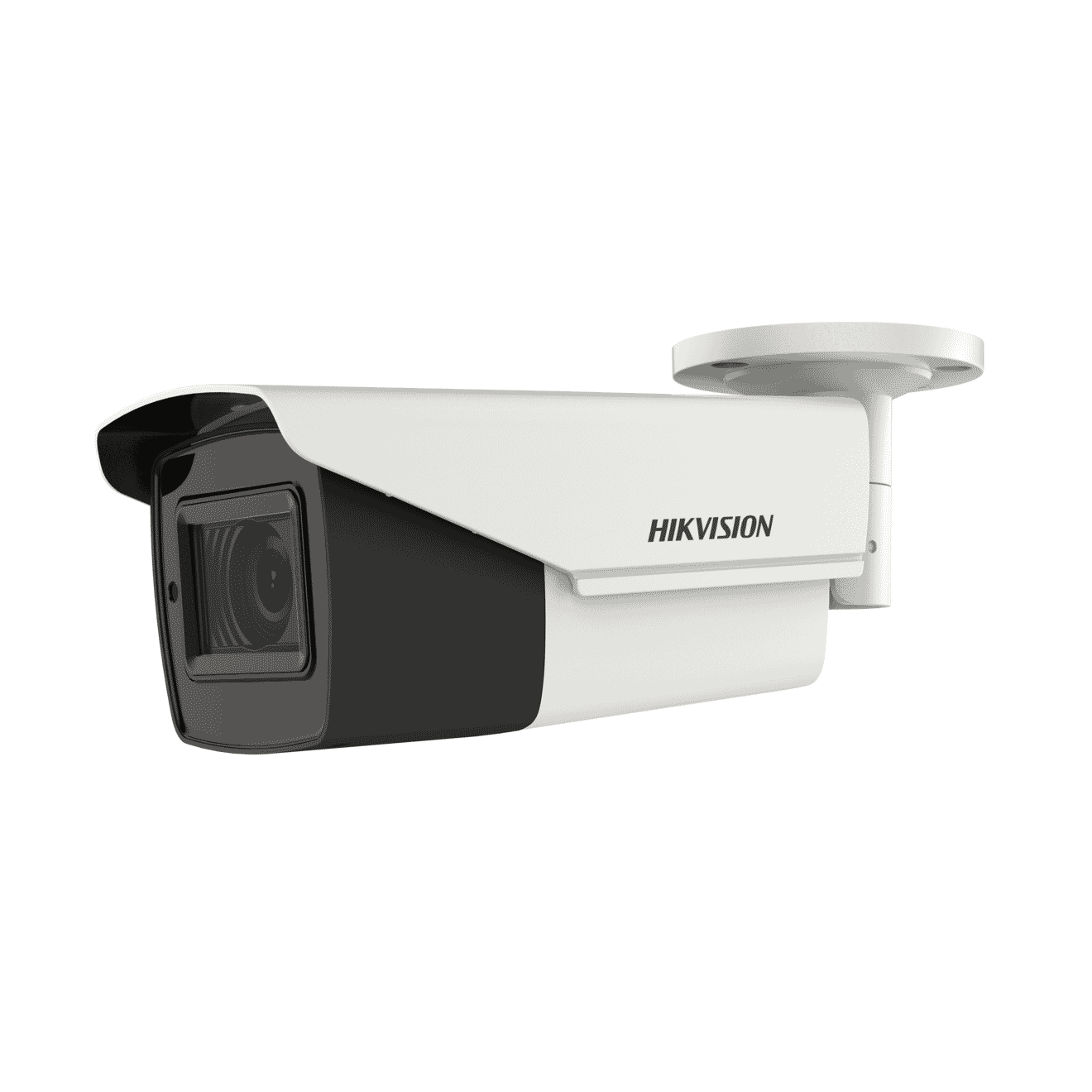

Hikvision DS-2CE19H8T-AIT3ZF 5MP 2.7-13.5mm Motorized Varifocal Lens Bullet Camera

Hikvision DS-2CE19H8T-AIT3ZF 5MP 2.7-13.5mm Motorized Varifocal Lens Bullet Camera

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 5MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE19H8T-AIT3ZF 5MP 2.7-13.5mm Motorized Varifocal Lens Bullet Camera
Login to View Price

Specifications

  • Image Sensor: 5 MP CMOS
  • Max. Resolution: 2560 (H) x 1944 (V)
  • Min. Illumination: Colour: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
  • Lens Type: 2.7 mm to 13.5 mm motorized varifocal lens
  • Focal Length & FOV: horizontal FOV: 92.3° to 29.3°
  • Lens Mount: Φ14
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 80 m
  • Smart Supplement Light: Yes
  • Image Settings: Brightness; Sharpness; Mirror; Smart IR; AGC
  • Wide Dynamic Range (WDR): =130 dB
  • Image Enhancement: WDR; BLC
  • Privacy Mask: 4 programmable privacy masks
  • Power: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC, max. 10.5 W
  • Dimension: 84.5 mm x 92 mm x 255.1 mm (3.33" x 3.62" x 10")
  • Weight: Approx. 930 g (2.05 lb.)
  • Language: English
  • Protection: IP67
  • Signal System: PAL/NTSC
  • Frame Rate: TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fpsAHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fpsCVI: 4 MP@25fps, 4 MP@30fpsCVBS: PAL, NTSC
  • Day/Night Mode: Auto/Colour/BW (Black and White)
  • Noise Reduction: 3D DNR
  • White Balance: Auto/Manual
  • Video Output: Switchable TVI/AHD/CVI/CVBS
  • Motion Detection: 4 programmable motion areas
  • Material: Metal
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
  • Communication: HIKVISION-C

Camera
  • Image Sensor: 5 MP CMOS
  • Max. Resolution: 2560 (H) x 1944 (V)
  • Min. Illumination: Colour: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°

Lens
  • Lens Type: 2.7 mm to 13.5 mm motorized varifocal lens
  • Focal Length & FOV: horizontal FOV: 92.3° to 29.3°
  • Lens Mount: Φ14

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 80 m
  • Smart Supplement Light: Yes

  • Image Settings: Brightness; Sharpness; Mirror; Smart IR; AGC
  • Wide Dynamic Range (WDR): =130 dB
  • Image Enhancement: WDR; BLC
  • Privacy Mask: 4 programmable privacy masks

General
  • Power: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC, max. 10.5 W
  • Dimension: 84.5 mm x 92 mm x 255.1 mm (3.33" x 3.62" x 10")
  • Weight: Approx. 930 g (2.05 lb.)
  • Language: English

Approval
  • Protection: IP67

Other
  • Signal System: PAL/NTSC
  • Frame Rate: TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fpsAHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fpsCVI: 4 MP@25fps, 4 MP@30fpsCVBS: PAL, NTSC
  • Day/Night Mode: Auto/Colour/BW (Black and White)
  • Noise Reduction: 3D DNR
  • White Balance: Auto/Manual
  • Video Output: Switchable TVI/AHD/CVI/CVBS
  • Motion Detection: 4 programmable motion areas
  • Material: Metal
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
  • Communication: HIKVISION-C
