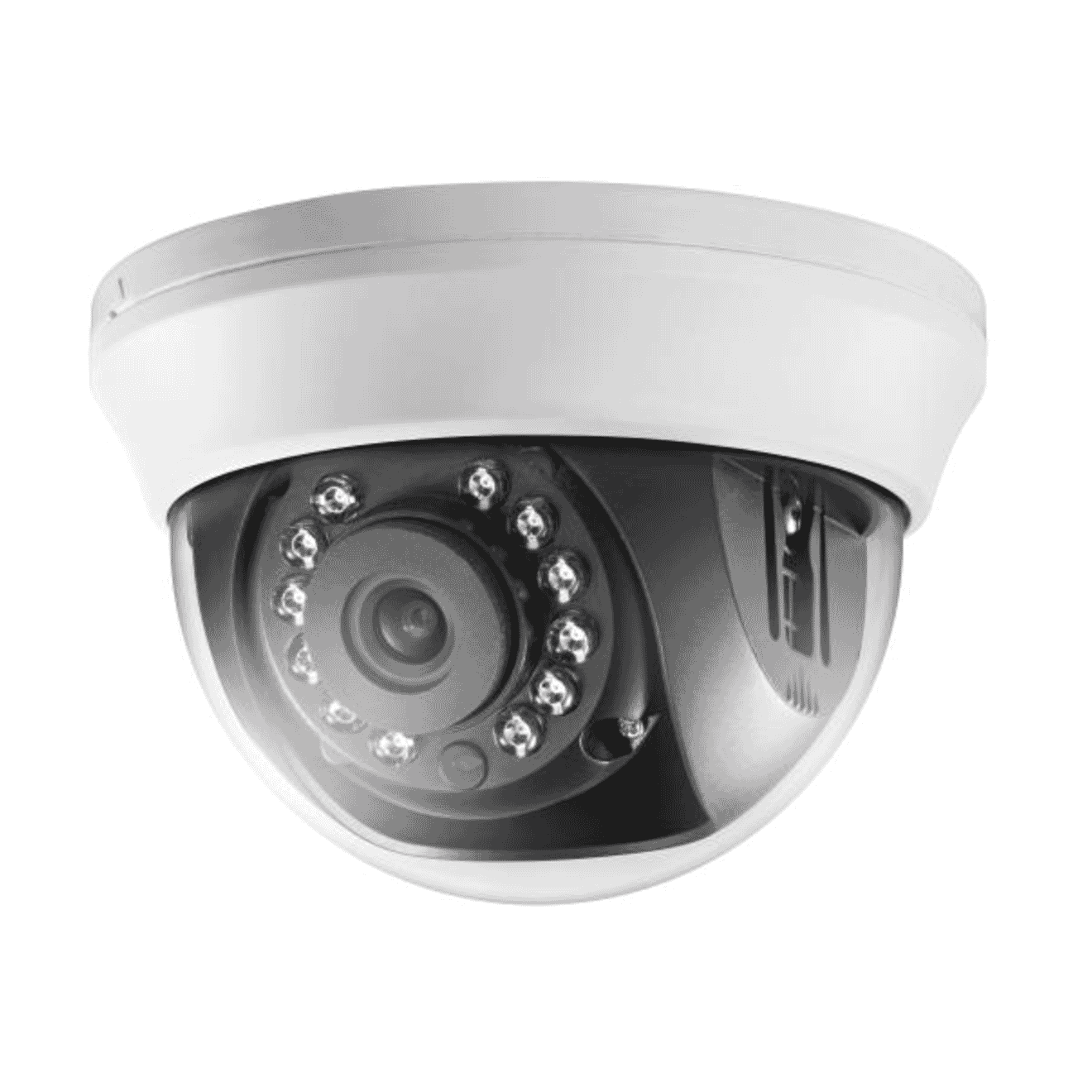

Hikvision DS-2CE56D0T-IRMMF (2.8mm) 2MP Fixed Dome Camera Compact EXIR
Hikvision DS-2CE56D0T-IRMMF (2.8mm) 2MP Fixed Dome Camera Compact EXIR
- HD COAX CCTV
- 2MP
- Fixed Lens
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-2CE56D0T-IRMMF (2.8mm) 2MP Fixed Dome Camera Compact EXIR
Specifications
- Image Sensor: 2 MP CMOS
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: 0.01Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
- Day & Night: ICR
- Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 70°, Rotation: 0 to 360°
- Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV: 2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
- Lens Mount: M12
- Image Parameters Switch: STD/HIGH-SAT
- Image Settings: Brightness, Sharpness, Smart IR
- Wide Dynamic Range (WDR): Digital WDR
- Image Enhancement: BLC, HLC
- Dimension: F 98 mm × 65.4 mm (F 3.86" × 2.57")
- Weight: Approx. 146 g (0.32 lb.)
- Language: English
- Signal System: PAL/NTSC
- Frame Rate: TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
- Day/Night Mode: Auto/Color/BW (Black and White)
- White Balance: Auto/Manual
- AGC: Yes
- Video Output: Switchable TVI/AHD/CVI/CVBS
- Material: Plastic
- Operating Condition: ‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication: HIKVISION-C
- Power Supply: 12 VDC ± 25%
- Consumption: Max. 1.8 W
- IR Range: Up to 20 m
