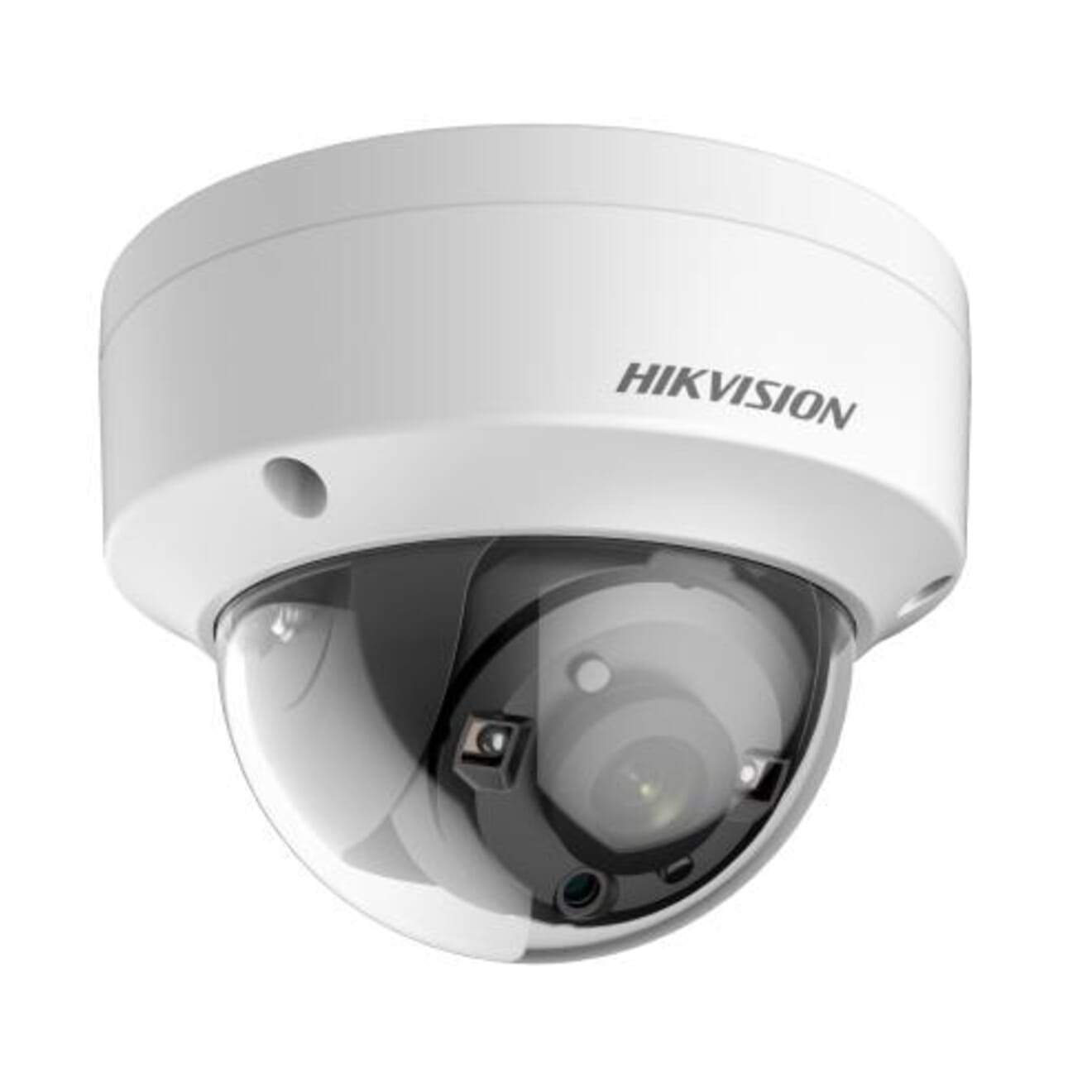

Hikvision DS-2CE57H8T-VPITF(2.8mm) 5MP Ultra-Low Light Dome Camera

Hikvision DS-2CE57H8T-VPITF(2.8mm) 5MP Ultra-Low Light Dome Camera

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 5MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE57H8T-VPITF(2.8mm) 5MP Ultra-Low Light Dome Camera
Login to View Price

Specifications

  • Image Sensor: 5 MP CMOS
  • Max. Resolution: 2560 (H) x 1944 (V)
  • Min. Illumination: Colour: 0.003 Lux@ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
  • Lens Type: 2.8 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 98°
  • Lens Mount: M12
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes
  • Image Settings: Brightness; Sharpness; Mirror; Smart IR; AGC
  • Wide Dynamic Range (WDR): =130 dB
  • Image Enhancement: WDR; BLC
  • Privacy Mask: 4 programmable privacy masks
  • Power: 12 VDC ± 25%, max. 5.8 W*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: Φ 110.8 mm x 84.7 mm (Φ 4.4" x 3.3")
  • Weight: Approx.500 g (1.10 lb.)
  • Language: English
  • Protection: IP67, IK10
  • Signal System: PAL/NTSC
  • Frame Rate: TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fpsAHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fpsCVI: 4 MP@25fps, 4 MP@30fpsCVBS: PAL, NTSC
  • Day/Night Mode: Auto/Colour/BW (Black and White)
  • Noise Reduction: 3D DNR
  • White Balance: Auto/Manual
  • Video Output: Switchable TVI/AHD/CVI/CVBS;1 HD analogue output
  • Motion Detection: 4 programmable motion areas
  • Material: Metal
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
  • Communication: HIKVISION-C

Camera
  • Image Sensor: 5 MP CMOS
  • Max. Resolution: 2560 (H) x 1944 (V)
  • Min. Illumination: Colour: 0.003 Lux@ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°

Lens
  • Lens Type: 2.8 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 98°
  • Lens Mount: M12

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes

  • Image Settings: Brightness; Sharpness; Mirror; Smart IR; AGC
  • Wide Dynamic Range (WDR): =130 dB
  • Image Enhancement: WDR; BLC
  • Privacy Mask: 4 programmable privacy masks

General
  • Power: 12 VDC ± 25%, max. 5.8 W*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: Φ 110.8 mm x 84.7 mm (Φ 4.4" x 3.3")
  • Weight: Approx.500 g (1.10 lb.)
  • Language: English

Approval
  • Protection: IP67, IK10

Other
  • Signal System: PAL/NTSC
  • Frame Rate: TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fpsAHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fpsCVI: 4 MP@25fps, 4 MP@30fpsCVBS: PAL, NTSC
  • Day/Night Mode: Auto/Colour/BW (Black and White)
  • Noise Reduction: 3D DNR
  • White Balance: Auto/Manual
  • Video Output: Switchable TVI/AHD/CVI/CVBS;1 HD analogue output
  • Motion Detection: 4 programmable motion areas
  • Material: Metal
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
  • Communication: HIKVISION-C
