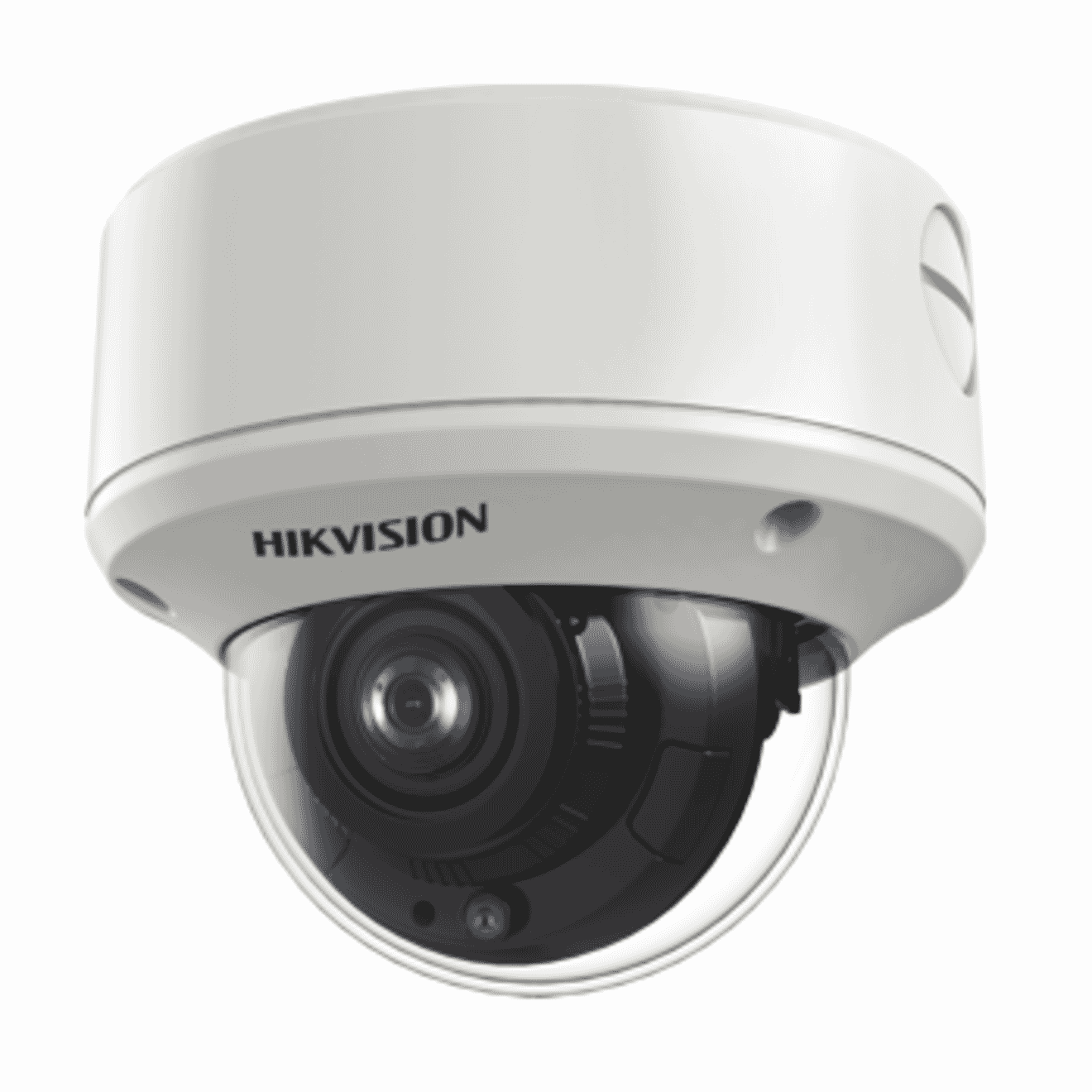

Hikvision DS-2CE59U1T-AVPIT3ZF 8MP 2.7-13.5mm Motorized Varifocal Dome Camera

Hikvision DS-2CE59U1T-AVPIT3ZF 8MP 2.7-13.5mm Motorized Varifocal Dome Camera

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 8MP
  • Verifocal
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE59U1T-AVPIT3ZF 8MP 2.7-13.5mm Motorized Varifocal Dome Camera
Login to View Price

Specifications

  • Image Sensor: 8.29 megapixel progressive scan CMOS
  • Max. Resolution: 3840 (H) × 2160 (V)
  • Min. Illumination: Color: 0.01 Lux @ (F2.4, AGC ON), B/W: 0 Lux with IR
  • Shutter Time: PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355°
  • Lens Type: PAL: 1/12.5 s to 1/50, 000 sNTSC: 1/15 s to 1/50, 000 s
  • Focal Length & FOV: Horizontal FOV 108.1° to 45.6°
  • Lens Mount: F14
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 60 m
  • Smart Supplement Light: Yes
  • Image Settings: Brightness;Mirror;Sharpness;AGC
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: BLC;HLC
  • Power: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC*You are recommended to use one power adapter to supply the power for one camera.Max. 8.2W
  • Dimension: Ø 145.2 mm × 124.1 mm (Ø 7.1" × 4.9")
  • Weight: Approx. 640 g (1.41lb.)
  • Protection: IP67
  • Frame Rate: TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fpsCVI: 8MP@12.5fps, 8MP@15fpsAHD: 8M@12.5fps, 8M@15fpsCVBS: 960H P/N
  • Day/Night Mode: Auto/Color/BW (Black and White)
  • Noise Reduction: 2D DNR
  • White Balance: Auto/Manual
  • Video Output: 1 HD analog output;Switchable TVI/AHD/CVI/CVBS
  • Material: Metal
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
  • Communication: HIKVISION-C

Camera
  • Image Sensor: 8.29 megapixel progressive scan CMOS
  • Max. Resolution: 3840 (H) × 2160 (V)
  • Min. Illumination: Color: 0.01 Lux @ (F2.4, AGC ON), B/W: 0 Lux with IR
  • Shutter Time: PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355°

Lens
  • Lens Type: PAL: 1/12.5 s to 1/50, 000 sNTSC: 1/15 s to 1/50, 000 s
  • Focal Length & FOV: Horizontal FOV 108.1° to 45.6°
  • Lens Mount: F14

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 60 m
  • Smart Supplement Light: Yes

  • Image Settings: Brightness;Mirror;Sharpness;AGC
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: BLC;HLC

General
  • Power: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC*You are recommended to use one power adapter to supply the power for one camera.Max. 8.2W
  • Dimension: Ø 145.2 mm × 124.1 mm (Ø 7.1" × 4.9")
  • Weight: Approx. 640 g (1.41lb.)

Approval
  • Protection: IP67

Other
  • Frame Rate: TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fpsCVI: 8MP@12.5fps, 8MP@15fpsAHD: 8M@12.5fps, 8M@15fpsCVBS: 960H P/N
  • Day/Night Mode: Auto/Color/BW (Black and White)
  • Noise Reduction: 2D DNR
  • White Balance: Auto/Manual
  • Video Output: 1 HD analog output;Switchable TVI/AHD/CVI/CVBS
  • Material: Metal
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
  • Communication: HIKVISION-C
