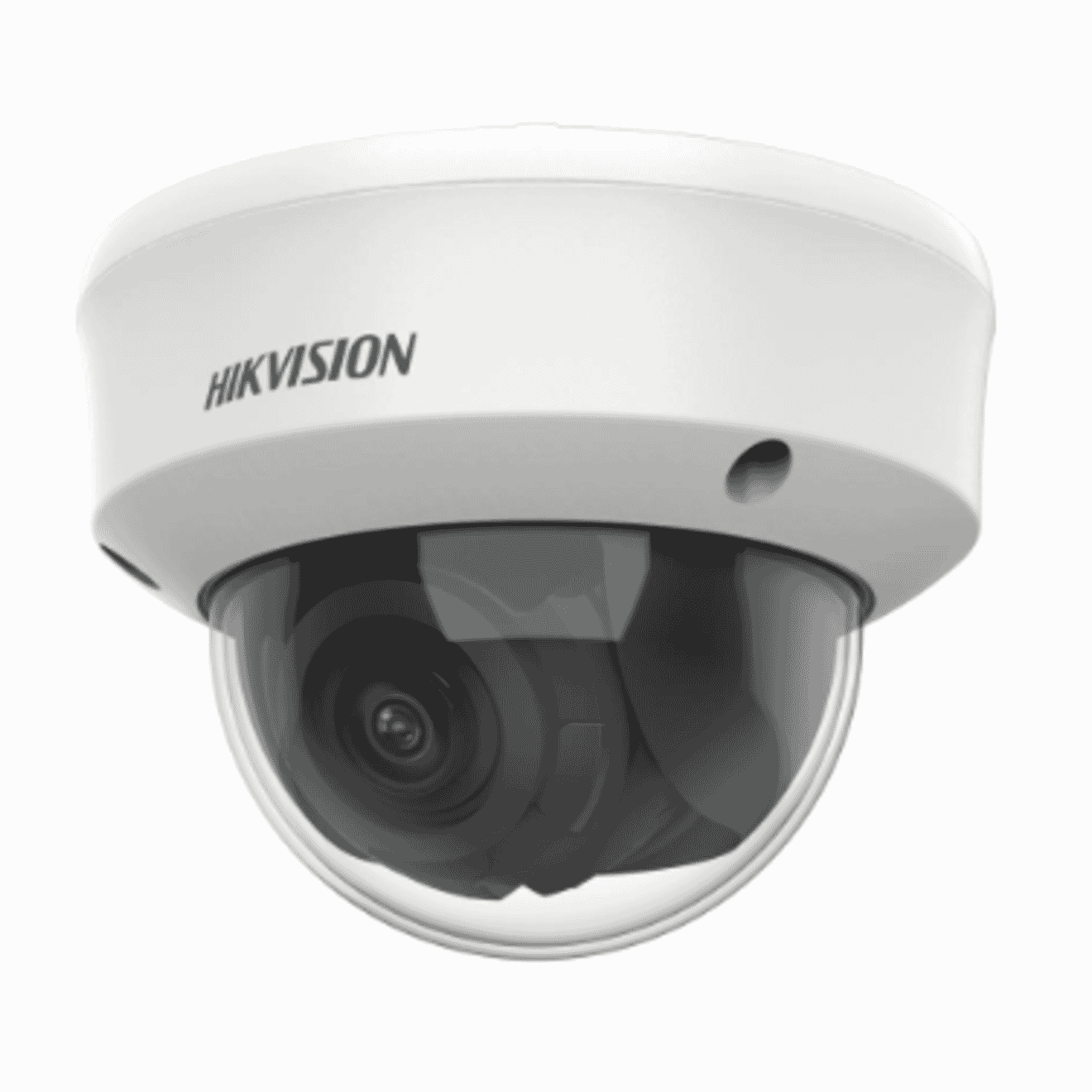

Hikvision DS-2CE5AD0T-VPIT3F 2MP 2.7-13.5mm Motorized Varifocal Lens Vandal-Proof Dome

Hikvision DS-2CE5AD0T-VPIT3F 2MP 2.7-13.5mm Motorized Varifocal Lens Vandal-Proof Dome

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 2MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE5AD0T-VPIT3F 2MP 2.7-13.5mm Motorized Varifocal Lens Vandal-Proof Dome
Login to View Price

Specifications

  • Image Sensor: 2 MP CMOS
  • Max. Resolution: 1920 (H) x 1080 (V)
  • Min. Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°
  • Lens Type: 2.7 mm to 13.5 mm varifocal lens
  • Focal Length & FOV: Horizontal FOV: 100° to 30°, vertical FOV: 52° to 17°, diagonal FOV: 116° to 34.5°
  • Lens Mount: Φ14
  • Supplement Light Range: IR: Up to 40 m
  • Image Parameters Switch: STD/HIGH-SAT
  • Image Settings: Brightness, Smart IR, Sharpness, AGC
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: DWDR, BLC, HLC, Global
  • Power: 12 VDC ± 25%, Max. 5 W
  • Dimension: Ø 143 mm x 106.7 mm ( Ø 5.62" x 4.19")
  • Weight: Approx. 630 g (1.39 lb.)
  • Language: English
  • Protection: IP67
  • Signal System: PAL/NTSC
  • Frame Rate: TVI: 1920 x 1080 @ 30 fps, 1920 x 1080 @ 25 fpsAHD: 1920 x 1080 @ 30 fps, 1080P @ 25 fpsCVI: 1920 x 1080 @ 30 fps, 1080P @ 25 fpsCVBS: PAL/NTSC
  • Day/Night Mode: Auto/Colour/BW (Black and White)
  • White Balance: Auto/Manual
  • Noise Reduction: 2D DNR
  • Video Output: Switchable TVI/AHD/CVI/CVBS
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
  • Material: Main Body: Metal, Cover: Plastic
  • Communication: HIKVISION-C

Camera
  • Image Sensor: 2 MP CMOS
  • Max. Resolution: 1920 (H) x 1080 (V)
  • Min. Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°

Lens
  • Lens Type: 2.7 mm to 13.5 mm varifocal lens
  • Focal Length & FOV: Horizontal FOV: 100° to 30°, vertical FOV: 52° to 17°, diagonal FOV: 116° to 34.5°
  • Lens Mount: Φ14

Illuminator
  • Supplement Light Range: IR: Up to 40 m

  • Image Parameters Switch: STD/HIGH-SAT
  • Image Settings: Brightness, Smart IR, Sharpness, AGC
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: DWDR, BLC, HLC, Global

General
  • Power: 12 VDC ± 25%, Max. 5 W
  • Dimension: Ø 143 mm x 106.7 mm ( Ø 5.62" x 4.19")
  • Weight: Approx. 630 g (1.39 lb.)
  • Language: English

Approval
  • Protection: IP67

Other
  • Signal System: PAL/NTSC
  • Frame Rate: TVI: 1920 x 1080 @ 30 fps, 1920 x 1080 @ 25 fpsAHD: 1920 x 1080 @ 30 fps, 1080P @ 25 fpsCVI: 1920 x 1080 @ 30 fps, 1080P @ 25 fpsCVBS: PAL/NTSC
  • Day/Night Mode: Auto/Colour/BW (Black and White)
  • White Balance: Auto/Manual
  • Noise Reduction: 2D DNR
  • Video Output: Switchable TVI/AHD/CVI/CVBS
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
  • Material: Main Body: Metal, Cover: Plastic
  • Communication: HIKVISION-C
