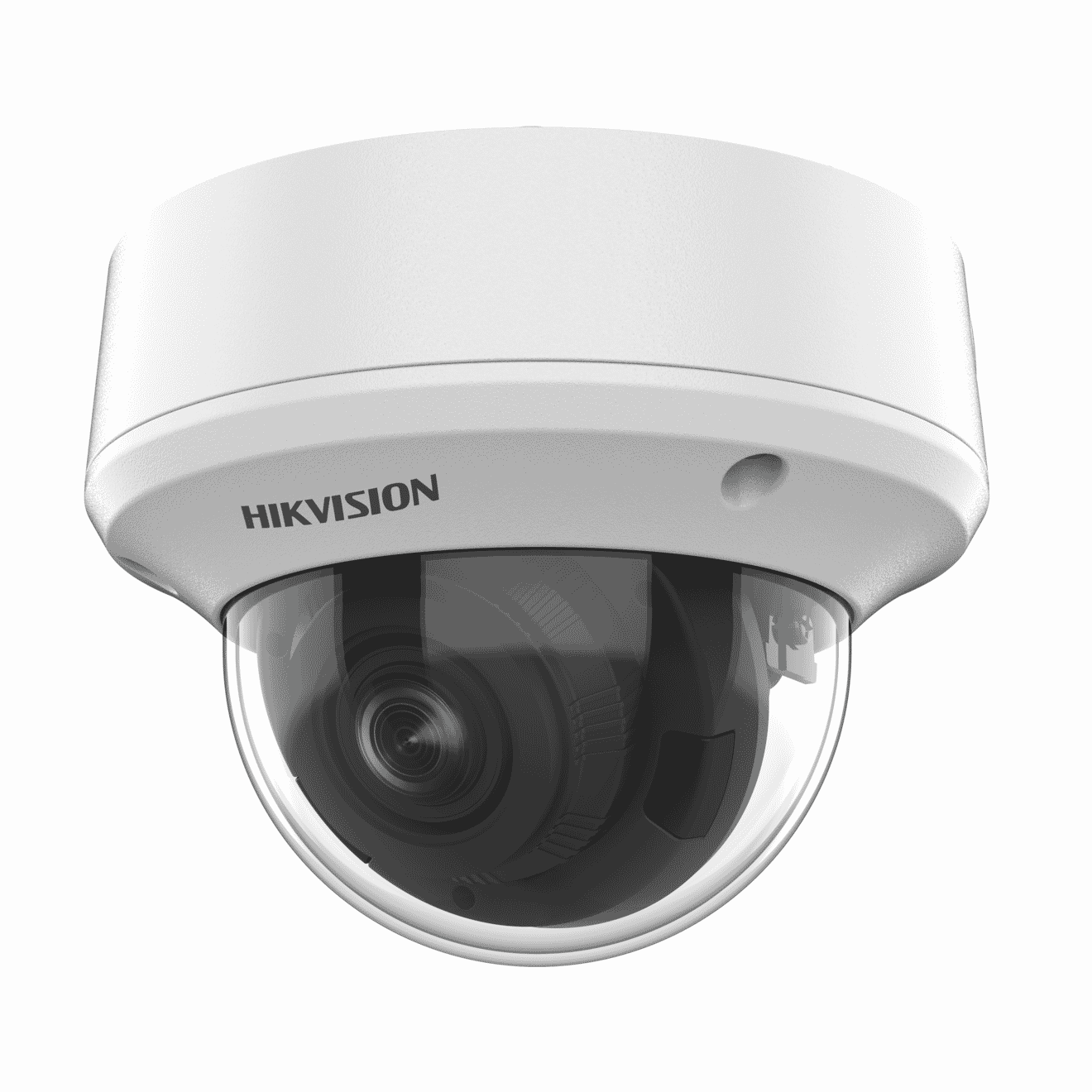

Hikvision DS-2CE5AH0T-AVPIT3ZF 5MP Varifocal Dome Camera WDR EXIR

Hikvision DS-2CE5AH0T-AVPIT3ZF 5MP Varifocal Dome Camera WDR EXIR

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 5MP
  • Verifocal
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE5AH0T-AVPIT3ZF 5MP Varifocal Dome Camera WDR EXIR
Login to View Price

Specifications

  • Image Sensor: 5 MP CMOS
  • Max. Resolution: 2560 (H) × 1944 (V)
  • Min. Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°
  • Lens Type: 2.7 mm to 13.5 mm motorized varifocal lens
  • Focal Length & FOV: horizontal FOV: 95° to 26°, vertical FOV: 72° to 20°, diagonal FOV: 126° to 33°
  • Lens Mount: F14
  • Supplement Light Range: IR: Up to 40 m
  • Image Parameters Switch: STD/HIGH-SAT
  • Image Settings: Brightness, Smart IR, Sharpness, AGC
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: DWDR,BLC,HLC,Global
  • Power: 12 VDC±15%, 24 VAC±15%, Max 5.9 W
  • Dimension: Ø145 mm × 111.3 mm (5.69" × 4.37")
  • Weight: Approx. 837 g (1.85 lb.)
  • Language: English
  • Protection: IP67
  • Signal System: PAL/NTSC
  • Frame Rate: TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fpsAHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fpsCVI: 4 M @ 30 fps, 4 M @ 25 fpsCVBS: PAL/NTSC
  • Day/Night Mode: Auto/Color/BW (Black and White)
  • White Balance: Auto/Manual
  • Noise Reduction: 2D DNR
  • Video Output: Switchable TVI/AHD/CVI/CVBS
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
  • Material: Metal
  • Communication: HIKVISION-C

Camera
  • Image Sensor: 5 MP CMOS
  • Max. Resolution: 2560 (H) × 1944 (V)
  • Min. Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°

Lens
  • Lens Type: 2.7 mm to 13.5 mm motorized varifocal lens
  • Focal Length & FOV: horizontal FOV: 95° to 26°, vertical FOV: 72° to 20°, diagonal FOV: 126° to 33°
  • Lens Mount: F14

Illuminator
  • Supplement Light Range: IR: Up to 40 m

  • Image Parameters Switch: STD/HIGH-SAT
  • Image Settings: Brightness, Smart IR, Sharpness, AGC
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: DWDR,BLC,HLC,Global

General
  • Power: 12 VDC±15%, 24 VAC±15%, Max 5.9 W
  • Dimension: Ø145 mm × 111.3 mm (5.69" × 4.37")
  • Weight: Approx. 837 g (1.85 lb.)
  • Language: English

Approval
  • Protection: IP67

Other
  • Signal System: PAL/NTSC
  • Frame Rate: TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fpsAHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fpsCVI: 4 M @ 30 fps, 4 M @ 25 fpsCVBS: PAL/NTSC
  • Day/Night Mode: Auto/Color/BW (Black and White)
  • White Balance: Auto/Manual
  • Noise Reduction: 2D DNR
  • Video Output: Switchable TVI/AHD/CVI/CVBS
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
  • Material: Metal
  • Communication: HIKVISION-C
