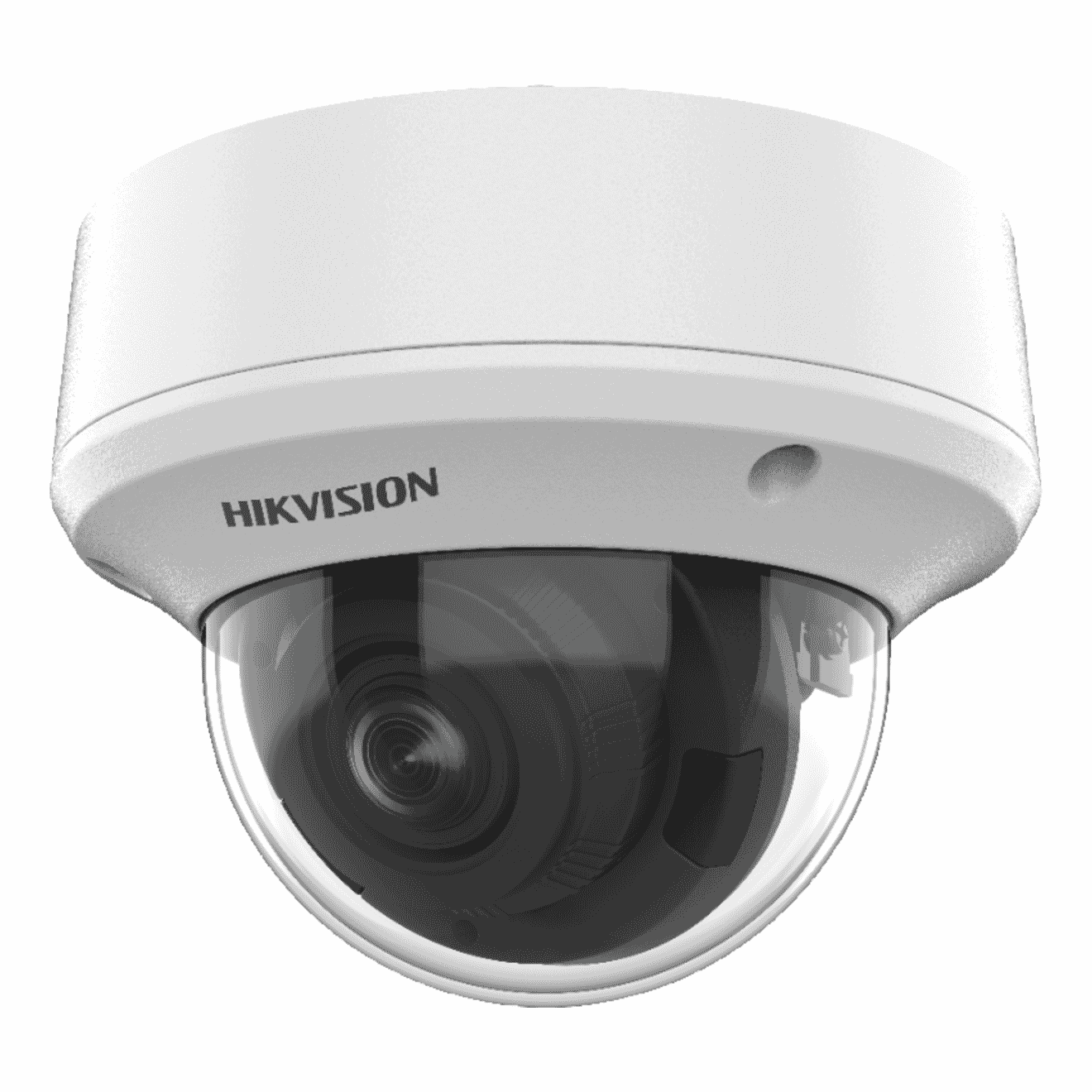

Hikvision DS-2CE5AH0T-VPIT3ZE 5MP 2.7-13.5mm Motorized Varifocal Vandal-Proof Dome Camera

Hikvision DS-2CE5AH0T-VPIT3ZE 5MP 2.7-13.5mm Motorized Varifocal Vandal-Proof Dome Camera

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 5MP
  • Verifocal
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE5AH0T-VPIT3ZE 5MP 2.7-13.5mm Motorized Varifocal Vandal-Proof Dome Camera
Login to View Price

Specifications

  • Image Sensor: 5 MP CMOS
  • Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°
  • Lens Mount: Φ14
  • Dimension: Ø145 mm x 111.3 mm (5.69" x 4.37")
  • Weight: Approx. 863 g (1.90 lb.)
  • Language: English
  • Signal System: PAL/NTSC
  • Resolution: 2560 (H) x 1944 (V)
  • Frame Rate: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps
  • Field of View: horizontal FOV: 95° to 26°, vertical FOV: 72° to 20°, diagonal FOV: 126° to 33°
  • WDR (Wide Dynamic Range): Digital WDR
  • Day/Night Mode: Auto/Colour/BW (Black and White)
  • Image Mode: STD/HIGH-SAT
  • AGC: Yes
  • White Balance: Auto/Manual
  • AE (Auto Exposure) Mode: BLC; HLC; Global; DWDR
  • Noise Reduction: 2D DNR
  • Function: Sharpness; Brightness; Smart IR
  • Video Output: 1 HD analogue output
  • IR Range: Up to 40 m
  • Operating Conditions: -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
  • Power Supply: 12 VDC±15%PoC.atYou are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
  • Consumption: Max 7.4 W
  • Protection Level: IP67, IK10
  • Material: Metal
  • Communication: HIKVISION-C

Camera
  • Image Sensor: 5 MP CMOS
  • Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°

Lens
  • Lens Mount: Φ14

General
  • Dimension: Ø145 mm x 111.3 mm (5.69" x 4.37")
  • Weight: Approx. 863 g (1.90 lb.)
  • Language: English

Other
  • Signal System: PAL/NTSC
  • Resolution: 2560 (H) x 1944 (V)
  • Frame Rate: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps
  • Field of View: horizontal FOV: 95° to 26°, vertical FOV: 72° to 20°, diagonal FOV: 126° to 33°
  • WDR (Wide Dynamic Range): Digital WDR
  • Day/Night Mode: Auto/Colour/BW (Black and White)
  • Image Mode: STD/HIGH-SAT
  • AGC: Yes
  • White Balance: Auto/Manual
  • AE (Auto Exposure) Mode: BLC; HLC; Global; DWDR
  • Noise Reduction: 2D DNR
  • Function: Sharpness; Brightness; Smart IR
  • Video Output: 1 HD analogue output
  • IR Range: Up to 40 m
  • Operating Conditions: -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
  • Power Supply: 12 VDC±15%PoC.atYou are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
  • Consumption: Max 7.4 W
  • Protection Level: IP67, IK10
  • Material: Metal
  • Communication: HIKVISION-C
