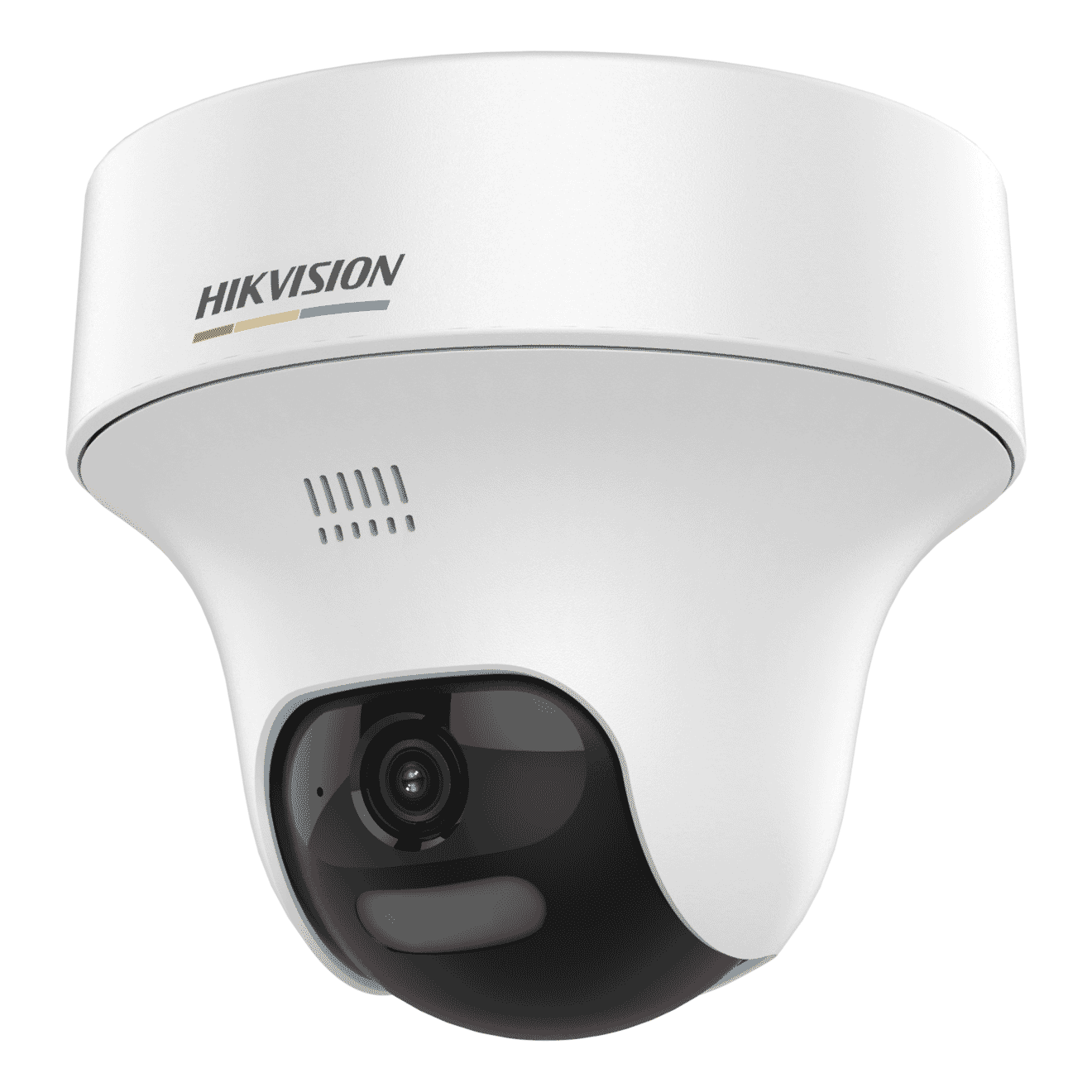

Hikvision DS-2CE70DF3T-PTLXTS (2.8mm) 2MP Pan-Tilt Camera Smart Dual-Light Mic Siren

Hikvision DS-2CE70DF3T-PTLXTS (2.8mm) 2MP Pan-Tilt Camera Smart Dual-Light Mic Siren

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 2MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE70DF3T-PTLXTS (2.8mm) 2MP Pan-Tilt Camera Smart Dual-Light Mic Siren
Login to View Price

Specifications

  • Image Sensor: 2 MP CMOS
  • Max. Resolution: 1920 (H) × 1080 (V)
  • Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
  • Lens Type: 2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 126°3.6 mm, horizontal FOV: 84°, vertical FOV: 46°, diagonal FOV: 98°
  • Lens Mount: M12
  • Supplement Light Type: Smart, IR, White Light
  • Supplement Light Range: IR: Up to 25 m,White Light: Up to 20 m
  • Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
  • Image Settings: Brightness, Contrast, Sharpness, Anti-banding, AGC
  • Wide Dynamic Range (WDR): =120 dB
  • Image Enhancement: WDR,BLC,HLC,Global,HLS
  • Power: 12 VDC ± 25%, max. 12.8 W*You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), an 18 VDC adapter is required.
  • Dimension: Ø123.75 mm × 110.79 mm (Ø4.87" × 4.36")
  • Weight: Approx. 350 g (0.77 lb.)
  • Language: English
  • Signal System: PAL/NTSC
  • Slow Shutter: Max. 16 times
  • Pickup Distance: In a radius of up to 5 m
  • Amount: 1
  • Rated Power: 2 W
  • Speaker Range: In a radius of up to 5 m
  • Audio Function: Echo Cancellation, AI Noise Reduction, Automatic Gain Control
  • Frame Rate: TVI: 1080p @25 fps/30 fps
  • Day/Night Mode: Auto/Color
  • Noise Reduction: 3D DNR
  • White Balance: Auto,Manual
  • Video Output: 1 HD analog output
  • Light Alarm: Flashing Light Alarm (Red and Blue)
  • Audible Alarm: Yes
  • Material: Plastic
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
  • Communication: HIKVISION-C

Camera
  • Image Sensor: 2 MP CMOS
  • Max. Resolution: 1920 (H) × 1080 (V)
  • Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Lens
  • Lens Type: 2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 126°3.6 mm, horizontal FOV: 84°, vertical FOV: 46°, diagonal FOV: 98°
  • Lens Mount: M12

Illuminator
  • Supplement Light Type: Smart, IR, White Light
  • Supplement Light Range: IR: Up to 25 m,White Light: Up to 20 m

  • Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
  • Image Settings: Brightness, Contrast, Sharpness, Anti-banding, AGC
  • Wide Dynamic Range (WDR): =120 dB
  • Image Enhancement: WDR,BLC,HLC,Global,HLS

General
  • Power: 12 VDC ± 25%, max. 12.8 W*You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), an 18 VDC adapter is required.
  • Dimension: Ø123.75 mm × 110.79 mm (Ø4.87" × 4.36")
  • Weight: Approx. 350 g (0.77 lb.)
  • Language: English

Other
  • Signal System: PAL/NTSC
  • Slow Shutter: Max. 16 times
  • Pickup Distance: In a radius of up to 5 m
  • Amount: 1
  • Rated Power: 2 W
  • Speaker Range: In a radius of up to 5 m
  • Audio Function: Echo Cancellation, AI Noise Reduction, Automatic Gain Control
  • Frame Rate: TVI: 1080p @25 fps/30 fps
  • Day/Night Mode: Auto/Color
  • Noise Reduction: 3D DNR
  • White Balance: Auto,Manual
  • Video Output: 1 HD analog output
  • Light Alarm: Flashing Light Alarm (Red and Blue)
  • Audible Alarm: Yes
  • Material: Plastic
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
  • Communication: HIKVISION-C

Resources

Access comprehensive documentation, installation guides, and the latest updates to get the most out of your device.

Need additional support? Visit our

documentation center or contact support
