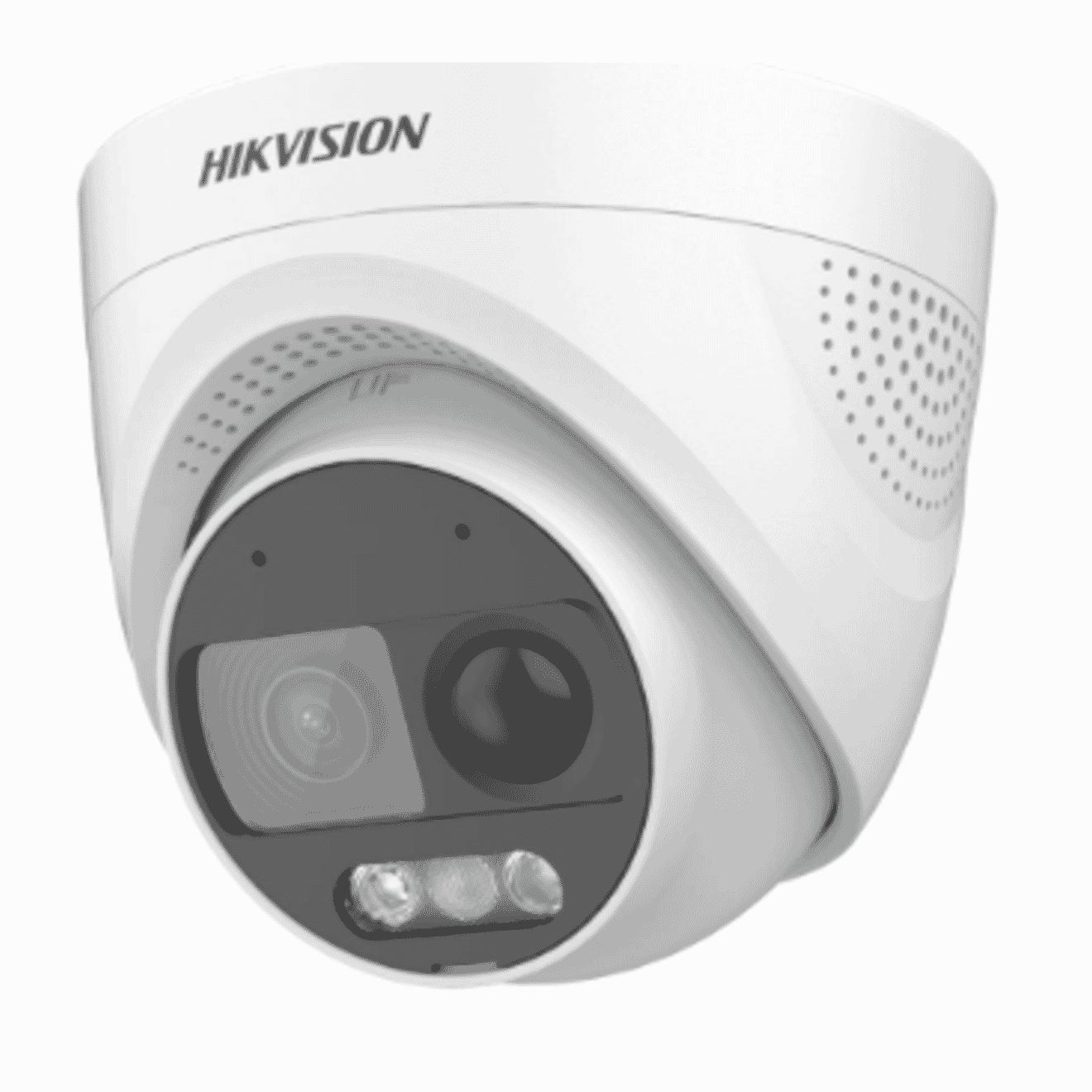

Hikvision DS-2CE72DF3T-PIRXOS 2MP 2.8mm Fixed Lens Turret Camera with PIR

Hikvision DS-2CE72DF3T-PIRXOS 2MP 2.8mm Fixed Lens Turret Camera with PIR

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 2MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE72DF3T-PIRXOS 2MP 2.8mm Fixed Lens Turret Camera with PIR
Login to View Price

Specifications

  • Image Sensor: 2 MP CMOS
  • Max. Resolution: 1920 (H) × 1080 (V)
  • Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & Night: 24/7 Color Imaging
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Lens Type: 2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°
  • Lens Mount: M12
  • Supplement Light Type: White Light
  • Supplement Light Range: Up to 20 m
  • Smart Supplement Light: Yes
  • Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
  • Image Settings: Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Smart Light, Anti-Banding, AGC
  • Wide Dynamic Range (WDR): =130 dB
  • Image Enhancement: WDR, BLC, HLC, Global, HLS
  • Privacy Mask: 4 programmable privacy masks
  • Power: 12 VDC ± 25%, max. 9.6 W*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: Ø 109.82 mm × 93.66 mm (Ø 4.3" × 3.7")
  • Weight: Approx. 396 g (0.87 lb.)
  • Language: English
  • Protection: IP67
  • Signal System: PAL/NTSC
  • Slow Shutter: Max. 16 times
  • Frame Rate: TVI: 1080p @ 25 fps/30 fps
  • Day/Night Mode: Color
  • Noise Reduction: 3D DNR/2D DNR
  • White Balance: Auto/Manual
  • PIR Range: 11 m
  • PIR Angle: Angle : 110°
  • Video Output: 1 HD analog output
  • Alarm: 1 line outFlashing Light Alarm (Red & Blue)
  • Built-in Microphone: Yes
  • Motion Detection: 4 programmable motion areas
  • Material: Main body: Metal, Enclosure: Plastic
  • Operating Condition: -40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
  • Communication: HIKVISION-C

Camera
  • Image Sensor: 2 MP CMOS
  • Max. Resolution: 1920 (H) × 1080 (V)
  • Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & Night: 24/7 Color Imaging
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Lens
  • Lens Type: 2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°
  • Lens Mount: M12

Illuminator
  • Supplement Light Type: White Light
  • Supplement Light Range: Up to 20 m
  • Smart Supplement Light: Yes

  • Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
  • Image Settings: Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Smart Light, Anti-Banding, AGC
  • Wide Dynamic Range (WDR): =130 dB
  • Image Enhancement: WDR, BLC, HLC, Global, HLS
  • Privacy Mask: 4 programmable privacy masks

General
  • Power: 12 VDC ± 25%, max. 9.6 W*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: Ø 109.82 mm × 93.66 mm (Ø 4.3" × 3.7")
  • Weight: Approx. 396 g (0.87 lb.)
  • Language: English

Approval
  • Protection: IP67

Other
  • Signal System: PAL/NTSC
  • Slow Shutter: Max. 16 times
  • Frame Rate: TVI: 1080p @ 25 fps/30 fps
  • Day/Night Mode: Color
  • Noise Reduction: 3D DNR/2D DNR
  • White Balance: Auto/Manual
  • PIR Range: 11 m
  • PIR Angle: Angle : 110°
  • Video Output: 1 HD analog output
  • Alarm: 1 line outFlashing Light Alarm (Red & Blue)
  • Built-in Microphone: Yes
  • Motion Detection: 4 programmable motion areas
  • Material: Main body: Metal, Enclosure: Plastic
  • Operating Condition: -40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
  • Communication: HIKVISION-C
