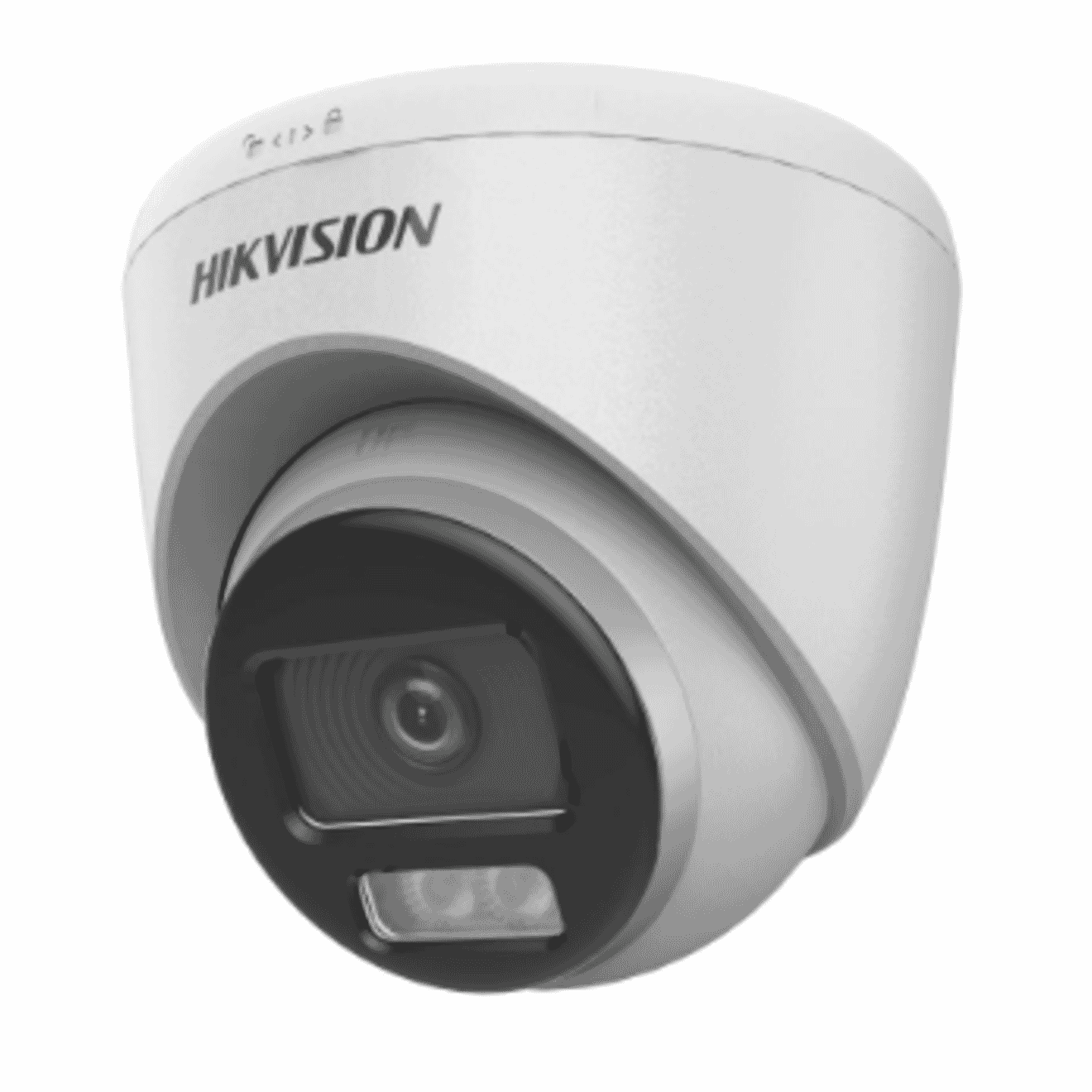

Hikvision DS-2CE72KF0T-LFS 3K 3.6mm ColorVu Smart hybrid light Fixed Turret Camera

Hikvision DS-2CE72KF0T-LFS 3K 3.6mm ColorVu Smart hybrid light Fixed Turret Camera

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 5MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE72KF0T-LFS 3K 3.6mm ColorVu Smart hybrid light Fixed Turret Camera
Login to View Price

Specifications

  • Image Sensor: 3K CMOS
  • Min. Illumination: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Lens Mount: M12
  • Supplement Light Type: Smart, IR, White Light
  • Supplement Light Range: IR: Up to 40 m,White Light: Up to 40 m
  • Power: 12 VDC ± 25%, max.5.2 W,*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: Ø109.98 mm × 98.27 mm (Ø4.33" × 3.87")
  • Weight: Approx. 320 g (0.71 lb.)
  • Language: English
  • Signal System: PAL/NTSC
  • Resolution: 2960 (H) × 1665 (V)
  • Frame Rate: TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fpsAHD: 5 MP @20 fps, 4 MP @25 fps/30 fpsCVI: 4 MP @25 fps/30 fpsCVBS: PAL/NTSC
  • Field of View: 2.8 mm, horizontal FOV: 105°, vertical FOV: 60°, diagonal FOV: 143°3.6 mm, horizontal FOV: 80°, vertical FOV: 50°, diagonal FOV: 112°
  • Light Alarm: Solid Light Alarm (White Light)
  • WDR (Wide Dynamic Range): Digital WDR
  • Pickup Distance: In a radius of up to 5 m
  • Amount: 1
  • White Light: Auto/Off
  • Image Mode: STD/HIGH-SAT/HIGHLIGHT
  • AGC: Yes
  • Day/Night Mode: Auto/Color
  • White Balance: Auto/Outdoor/Global/Manual
  • AE (Auto Exposure) Mode: HLS;DWDR;BLC;HLC;Global
  • Noise Reduction: 2D DNR
  • Function: Smart IR;Brightness;Sharpness;AGC;Anti-Banding
  • Video Output: Switchable TVI/AHD/CVI/CVBS
  • Audio In: Built-in mic
  • Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
  • Protection Level: IP67
  • Material: Enclosure: Plastic Main body: Metal
  • Communication: HIKVISION-C

Camera
  • Image Sensor: 3K CMOS
  • Min. Illumination: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Lens
  • Lens Mount: M12

Illuminator
  • Supplement Light Type: Smart, IR, White Light
  • Supplement Light Range: IR: Up to 40 m,White Light: Up to 40 m

General
  • Power: 12 VDC ± 25%, max.5.2 W,*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: Ø109.98 mm × 98.27 mm (Ø4.33" × 3.87")
  • Weight: Approx. 320 g (0.71 lb.)
  • Language: English

Other
  • Signal System: PAL/NTSC
  • Resolution: 2960 (H) × 1665 (V)
  • Frame Rate: TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fpsAHD: 5 MP @20 fps, 4 MP @25 fps/30 fpsCVI: 4 MP @25 fps/30 fpsCVBS: PAL/NTSC
  • Field of View: 2.8 mm, horizontal FOV: 105°, vertical FOV: 60°, diagonal FOV: 143°3.6 mm, horizontal FOV: 80°, vertical FOV: 50°, diagonal FOV: 112°
  • Light Alarm: Solid Light Alarm (White Light)
  • WDR (Wide Dynamic Range): Digital WDR
  • Pickup Distance: In a radius of up to 5 m
  • Amount: 1
  • White Light: Auto/Off
  • Image Mode: STD/HIGH-SAT/HIGHLIGHT
  • AGC: Yes
  • Day/Night Mode: Auto/Color
  • White Balance: Auto/Outdoor/Global/Manual
  • AE (Auto Exposure) Mode: HLS;DWDR;BLC;HLC;Global
  • Noise Reduction: 2D DNR
  • Function: Smart IR;Brightness;Sharpness;AGC;Anti-Banding
  • Video Output: Switchable TVI/AHD/CVI/CVBS
  • Audio In: Built-in mic
  • Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
  • Protection Level: IP67
  • Material: Enclosure: Plastic Main body: Metal
  • Communication: HIKVISION-C
