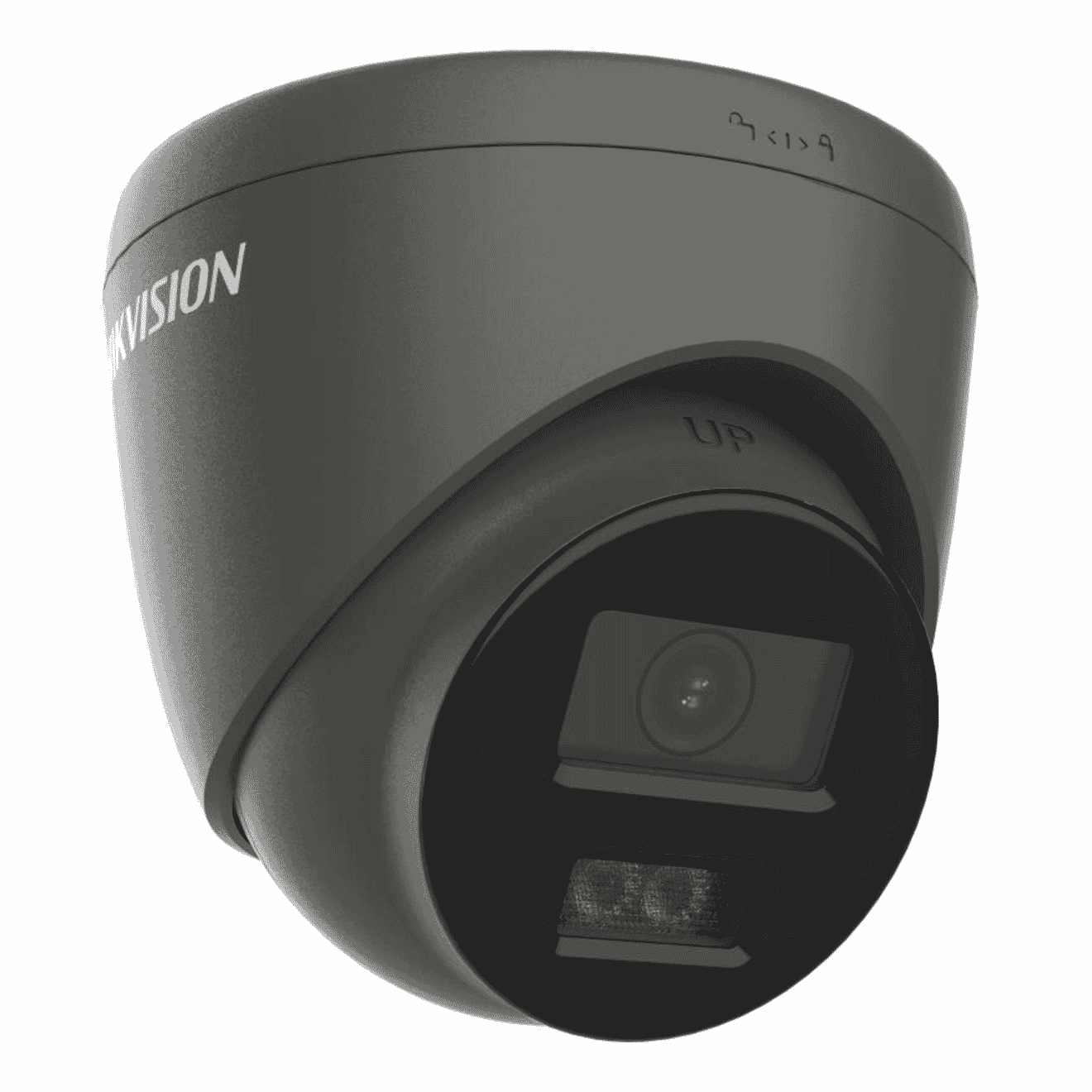

Hikvision DS-2CE72KF3T-LSYE (2.8mm) 5MP Fixed Turret Camera Smart Hybrid Light Audio GREY

Hikvision DS-2CE72KF3T-LSYE (2.8mm) 5MP Fixed Turret Camera Smart Hybrid Light Audio GREY

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 5MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE72KF3T-LSYE (2.8mm) 5MP Fixed Turret Camera Smart Hybrid Light Audio GREY
Login to View Price

Specifications

  • Image Sensor: 3K CMOS
  • Max. Resolution: 2960 (H) x 1665 (V)
  • Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0° to 360°,Tilt: 0° to 75°,Rotate: 0° to 360°
  • Lens Type: 2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 105°, vertical FOV: 60°, diagonal FOV: 140°3.6 mm, horizontal FOV: 80°, vertical FOV: 49°, diagonal FOV: 105°
  • Lens Mount: M12
  • Supplement Light Type: Smart, IR, White Light
  • Supplement Light Range: IR: Up to 40 mWhite Light: Up to 40 m
  • Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
  • Image Settings: Saturation, Brightness, Contrast, Sharpness, Anti-banding, AGC
  • Wide Dynamic Range (WDR): =130 dB
  • Image Enhancement: BLC, HLC, Global, HLS, WDR, Face AE
  • Privacy Mask: 4 programmable polygon privacy masks
  • Power: 12 VDC ± 25%, max. 6.0 W, PoC.at*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: Ø110 mm x 102.7 mm (Ø4.33" x 4.04")
  • Weight: Approx. 395 g (0.87 lb.)
  • Language: English
  • Protection: IP67
  • Signal System: PAL/NTSC
  • Slow Shutter: Max. 16 times
  • Pickup Distance: In a radius of up to 5 m
  • Amount: 1
  • Frame Rate: TVI: 3K @20 fps/25 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
  • Day/Night Mode: Auto/Colour
  • Noise Reduction: 3D DNR
  • White Balance: Auto, Manual
  • Video Output: 1 HD analogue output
  • Material: Main body: Metal, Enclosure: Plastic
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
  • Communication: HIKVISION-C
  • Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)

Camera
  • Image Sensor: 3K CMOS
  • Max. Resolution: 2960 (H) x 1665 (V)
  • Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0° to 360°,Tilt: 0° to 75°,Rotate: 0° to 360°

Lens
  • Lens Type: 2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 105°, vertical FOV: 60°, diagonal FOV: 140°3.6 mm, horizontal FOV: 80°, vertical FOV: 49°, diagonal FOV: 105°
  • Lens Mount: M12

Illuminator
  • Supplement Light Type: Smart, IR, White Light
  • Supplement Light Range: IR: Up to 40 mWhite Light: Up to 40 m

  • Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
  • Image Settings: Saturation, Brightness, Contrast, Sharpness, Anti-banding, AGC
  • Wide Dynamic Range (WDR): =130 dB
  • Image Enhancement: BLC, HLC, Global, HLS, WDR, Face AE
  • Privacy Mask: 4 programmable polygon privacy masks

General
  • Power: 12 VDC ± 25%, max. 6.0 W, PoC.at*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: Ø110 mm x 102.7 mm (Ø4.33" x 4.04")
  • Weight: Approx. 395 g (0.87 lb.)
  • Language: English

Approval
  • Protection: IP67

Other
  • Signal System: PAL/NTSC
  • Slow Shutter: Max. 16 times
  • Pickup Distance: In a radius of up to 5 m
  • Amount: 1
  • Frame Rate: TVI: 3K @20 fps/25 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
  • Day/Night Mode: Auto/Colour
  • Noise Reduction: 3D DNR
  • White Balance: Auto, Manual
  • Video Output: 1 HD analogue output
  • Material: Main body: Metal, Enclosure: Plastic
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
  • Communication: HIKVISION-C
  • Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
