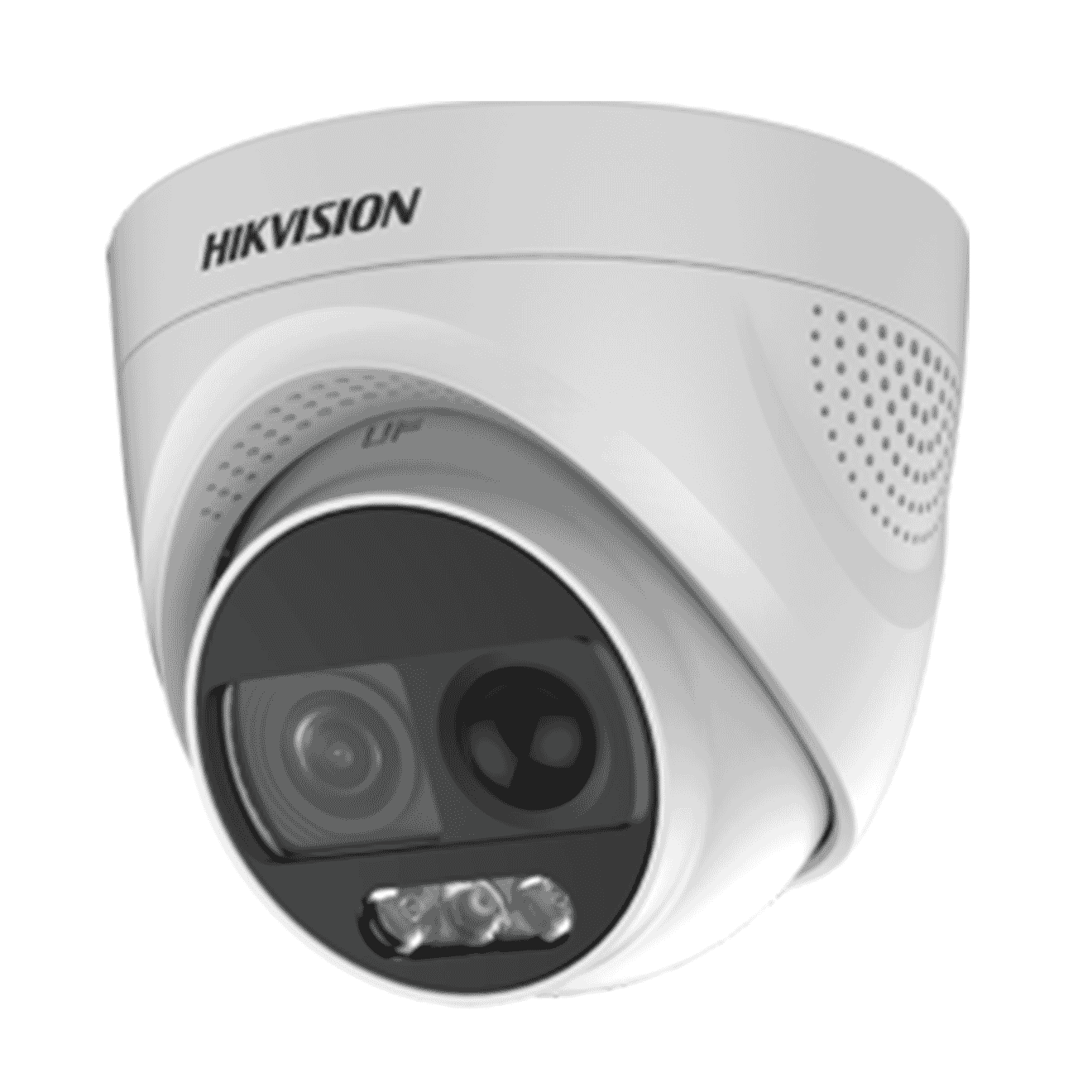

Hikvision DS-2CE72KF3T-PIRXO 3K ColorVu PIR Siren 2.8mm Analogue Turret Camera

Hikvision DS-2CE72KF3T-PIRXO 3K ColorVu PIR Siren 2.8mm Analogue Turret Camera

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 5MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE72KF3T-PIRXO 3K ColorVu PIR Siren 2.8mm Analogue Turret Camera
Login to View Price

Specifications

  • Image Sensor: 3K CMOS
  • Max. Resolution: 2960 (H) x 1665 (V)
  • Min. Illumination: 0.0003Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s
  • Day & Night: 24/7 Colour Imaging
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Lens Type: 2.8 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 109°, vertical FOV: 58°, diagonal FOV: 129°
  • Lens Mount: M16
  • Supplement Light Type: White Light
  • Supplement Light Range: Up to 20 m
  • Smart Supplement Light: Yes
  • Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
  • Image Settings: AGC; Brightness; Contrast; Mirror; Defective Pixel Correction; Sharpness; Anti-Banding; Smart Light
  • Wide Dynamic Range (WDR): =130 dB
  • Image Enhancement: WDR; BLC; HLC; Global; HLS
  • Privacy Mask: 4 programmable privacy masks
  • Power: 12 VDC ± 25%, max. 7.7 W*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: Ø 109.8 mm x 91.6 mm (Ø 4.32" x 3.6")
  • Weight: Approx. 416 g (0.92 lb.)
  • Language: English
  • Protection: IP67
  • Signal System: PAL/NTSC
  • Slow Shutter: Max. 16 times
  • Frame Rate: 3K@20 fps:4 MP@30 fps, 4 MP@25 fps:1080p@30 fps, 1080p@25 fps
  • Day/Night Mode: Colour
  • Noise Reduction: 3D DNR/2D DNR
  • White Balance: Auto/Manual
  • White Light: Auto/Off
  • PIR Range: 11 m
  • PIR Angle: 110°
  • Video Output: 1 HD analogue output
  • Alarm: 1 line outflashing light alarm (white)
  • Motion Detection: 4 programmable motion areas
  • Material: Front cover: Metal, Main body: Plastic
  • Operating Condition: -40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
  • Communication: HIKVISION-C

Camera
  • Image Sensor: 3K CMOS
  • Max. Resolution: 2960 (H) x 1665 (V)
  • Min. Illumination: 0.0003Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s
  • Day & Night: 24/7 Colour Imaging
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Lens
  • Lens Type: 2.8 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 109°, vertical FOV: 58°, diagonal FOV: 129°
  • Lens Mount: M16

Illuminator
  • Supplement Light Type: White Light
  • Supplement Light Range: Up to 20 m
  • Smart Supplement Light: Yes

  • Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
  • Image Settings: AGC; Brightness; Contrast; Mirror; Defective Pixel Correction; Sharpness; Anti-Banding; Smart Light
  • Wide Dynamic Range (WDR): =130 dB
  • Image Enhancement: WDR; BLC; HLC; Global; HLS
  • Privacy Mask: 4 programmable privacy masks

General
  • Power: 12 VDC ± 25%, max. 7.7 W*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: Ø 109.8 mm x 91.6 mm (Ø 4.32" x 3.6")
  • Weight: Approx. 416 g (0.92 lb.)
  • Language: English

Approval
  • Protection: IP67

Other
  • Signal System: PAL/NTSC
  • Slow Shutter: Max. 16 times
  • Frame Rate: 3K@20 fps:4 MP@30 fps, 4 MP@25 fps:1080p@30 fps, 1080p@25 fps
  • Day/Night Mode: Colour
  • Noise Reduction: 3D DNR/2D DNR
  • White Balance: Auto/Manual
  • White Light: Auto/Off
  • PIR Range: 11 m
  • PIR Angle: 110°
  • Video Output: 1 HD analogue output
  • Alarm: 1 line outflashing light alarm (white)
  • Motion Detection: 4 programmable motion areas
  • Material: Front cover: Metal, Main body: Plastic
  • Operating Condition: -40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
  • Communication: HIKVISION-C
