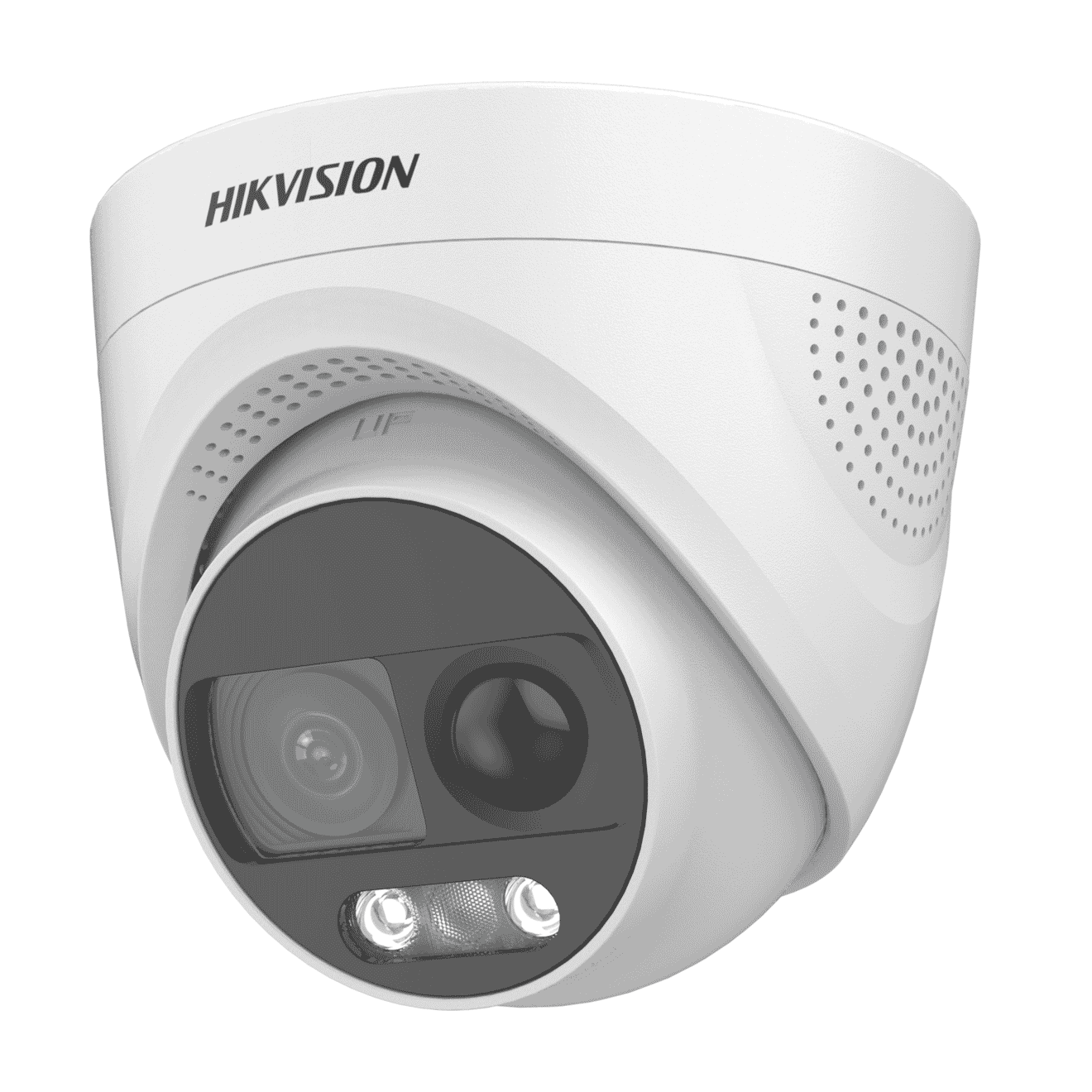

Hikvision DS-2CE72UF3T-PIRXO (3.6mm) 8MP Fixed Turret Camera PIR Audio Siren EXIR

Hikvision DS-2CE72UF3T-PIRXO (3.6mm) 8MP Fixed Turret Camera PIR Audio Siren EXIR

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 8MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE72UF3T-PIRXO (3.6mm) 8MP Fixed Turret Camera PIR Audio Siren EXIR
Login to View Price

Specifications

  • Image Sensor: 8 MP CMOS
  • Max. Resolution: 3840 (H) × 2160 (V)
  • Min. Illumination: 0.0005 Lux @ (F1.0,AGC ON), 0 Lux with white Light
  • Shutter Time: PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
  • Day & Night: 24/7 Color Imaging
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Lens Type: 2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 108°, vertical FOV: 57°, diagonal FOV: 127°3.6 mm, horizontal FOV: 91°, vertical FOV: 45°, diagonal FOV: 110°
  • Lens Mount: M16
  • Supplement Light Type: White Light
  • Supplement Light Range: Up to 20 m
  • Smart Supplement Light: Yes
  • Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
  • Image Settings: AGC;Brightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Anti-Banding;Smart Light
  • Wide Dynamic Range (WDR): =130 dB
  • Image Enhancement: WDR;BLC;HLC;Global;HLS
  • Privacy Mask: 4 programmable privacy masks
  • Power: 12 VDC ± 25%, max. 6.4 W*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: Ø 109.8 mm × 91.6 mm (Ø 4.32" × 3.6")
  • Weight: Approx. 416 g (0.92 lb.)
  • Language: English
  • Protection: IP67
  • Signal System: PAL/NTSC
  • Frame Rate: 8 MP@12.5 fps/15 fps, 5 MP@20 fps, 1080P@25 fps/30 fps
  • Day/Night Mode: Color
  • Noise Reduction: 3D DNR/2D DNR
  • White Balance: Auto/Manual
  • White Light: Auto/Off
  • PIR Range: 11 m
  • PIR Angle: 110°
  • Video Output: 1 HD analog output
  • Alarm: 1 line outflashing light alarm (white)
  • Motion Detection: 4 programmable motion areas
  • Material: Main body: Metal, Enclosure: Plastic
  • Operating Condition: -40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
  • Communication: HIKVISION-C

Camera
  • Image Sensor: 8 MP CMOS
  • Max. Resolution: 3840 (H) × 2160 (V)
  • Min. Illumination: 0.0005 Lux @ (F1.0,AGC ON), 0 Lux with white Light
  • Shutter Time: PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
  • Day & Night: 24/7 Color Imaging
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Lens
  • Lens Type: 2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 108°, vertical FOV: 57°, diagonal FOV: 127°3.6 mm, horizontal FOV: 91°, vertical FOV: 45°, diagonal FOV: 110°
  • Lens Mount: M16

Illuminator
  • Supplement Light Type: White Light
  • Supplement Light Range: Up to 20 m
  • Smart Supplement Light: Yes

  • Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
  • Image Settings: AGC;Brightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Anti-Banding;Smart Light
  • Wide Dynamic Range (WDR): =130 dB
  • Image Enhancement: WDR;BLC;HLC;Global;HLS
  • Privacy Mask: 4 programmable privacy masks

General
  • Power: 12 VDC ± 25%, max. 6.4 W*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: Ø 109.8 mm × 91.6 mm (Ø 4.32" × 3.6")
  • Weight: Approx. 416 g (0.92 lb.)
  • Language: English

Approval
  • Protection: IP67

Other
  • Signal System: PAL/NTSC
  • Frame Rate: 8 MP@12.5 fps/15 fps, 5 MP@20 fps, 1080P@25 fps/30 fps
  • Day/Night Mode: Color
  • Noise Reduction: 3D DNR/2D DNR
  • White Balance: Auto/Manual
  • White Light: Auto/Off
  • PIR Range: 11 m
  • PIR Angle: 110°
  • Video Output: 1 HD analog output
  • Alarm: 1 line outflashing light alarm (white)
  • Motion Detection: 4 programmable motion areas
  • Material: Main body: Metal, Enclosure: Plastic
  • Operating Condition: -40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
  • Communication: HIKVISION-C
