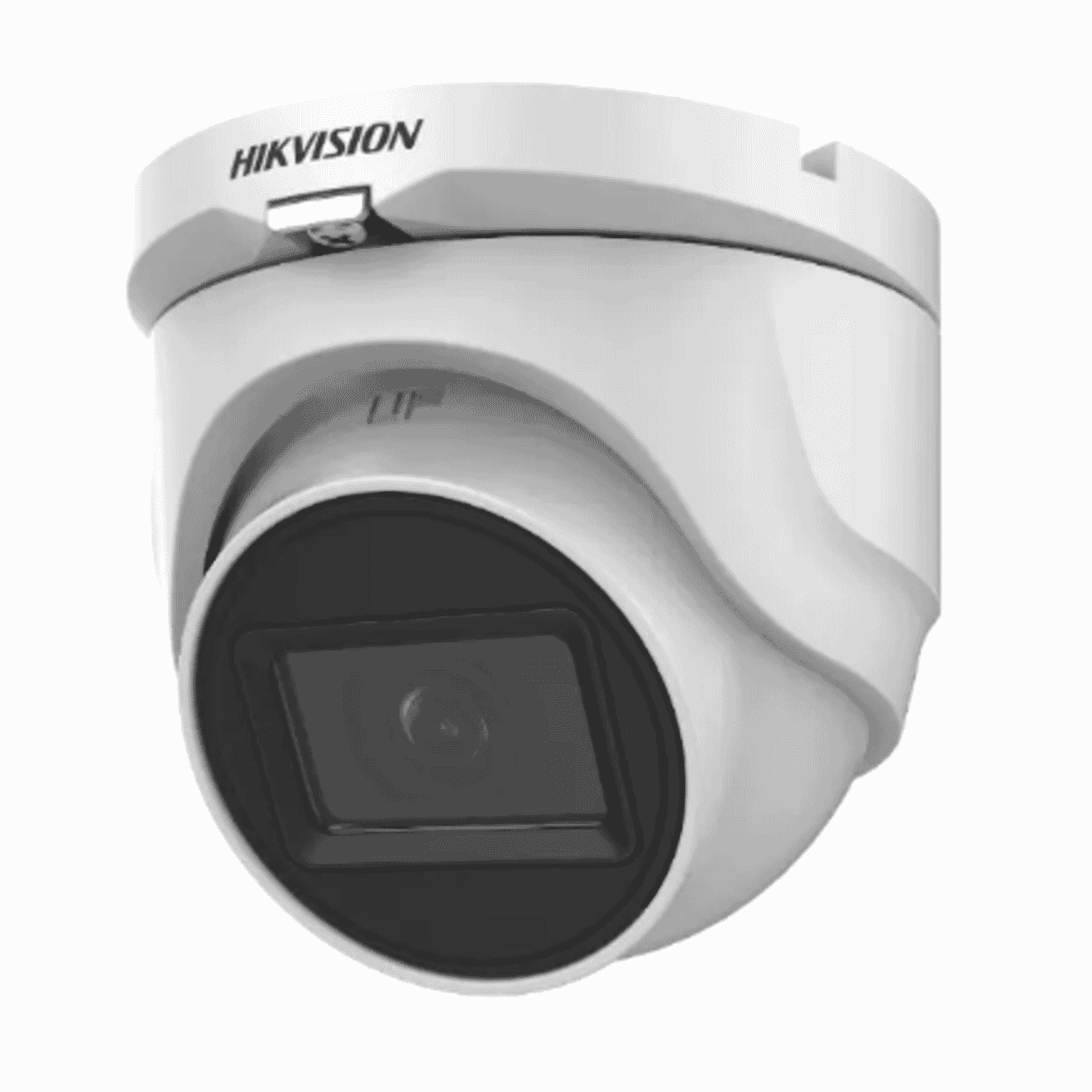

Hikvision DS-2CE76H0T-ITME(2.8MM)(C) 5MP Turbo HD Turret Camera IR CCTV Security

Hikvision DS-2CE76H0T-ITME(2.8MM)(C) 5MP Turbo HD Turret Camera IR CCTV Security

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 5MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE76H0T-ITME(2.8MM)(C) 5MP Turbo HD Turret Camera IR CCTV Security
Login to View Price

Specifications

  • Image Sensor: 5 MP CMOS image sensor
  • Max. Resolution: 2560 (H) x 1944 (V)
  • Min. Illumination: Colour: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50, 000 sNTSC: 1/30 s to 1/50, 000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
  • Lens Type: 2.8 mm fixed lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°
  • Lens Mount: M12
  • Image Parameters Switch: STD/HIGH-SAT
  • Image Settings: Brightness, Sharpness, Mirror, Smart IR
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: BLC, HLC
  • Dimension: Φ 82.6 mm x 90 mm x 79.37 mm (Φ 3.25" x 3.54" x 3.12")
  • Weight: Approx. 363 g (0.8 lb.)
  • Language: English
  • Protection: IP67
  • Signal System: PAL/NTSC
  • Frame Rate: TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fpsAHD: 5M@20fps, 4M@30fps, 4M@25fpsCVI: 4M@30fps, 4M@25fpsCVBS: PAL/NTSC
  • Day/Night Mode: Auto/Colour/BW (Black and White)
  • Noise Reduction: 2D DNR
  • White Balance: Auto/Manual
  • AGC: Yes
  • Video Output: 1HD analogue output
  • Material: Metal
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • Communication: HIKVISION-C
  • Power Supply: 12 VDC ±25%/PoC.af
  • Consumption: Max. 4.3 W
  • IR Range: Up to 30 m

Camera
  • Image Sensor: 5 MP CMOS image sensor
  • Max. Resolution: 2560 (H) x 1944 (V)
  • Min. Illumination: Colour: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50, 000 sNTSC: 1/30 s to 1/50, 000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°

Lens
  • Lens Type: 2.8 mm fixed lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°
  • Lens Mount: M12

  • Image Parameters Switch: STD/HIGH-SAT
  • Image Settings: Brightness, Sharpness, Mirror, Smart IR
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: BLC, HLC

General
  • Dimension: Φ 82.6 mm x 90 mm x 79.37 mm (Φ 3.25" x 3.54" x 3.12")
  • Weight: Approx. 363 g (0.8 lb.)
  • Language: English

Approval
  • Protection: IP67

Other
  • Signal System: PAL/NTSC
  • Frame Rate: TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fpsAHD: 5M@20fps, 4M@30fps, 4M@25fpsCVI: 4M@30fps, 4M@25fpsCVBS: PAL/NTSC
  • Day/Night Mode: Auto/Colour/BW (Black and White)
  • Noise Reduction: 2D DNR
  • White Balance: Auto/Manual
  • AGC: Yes
  • Video Output: 1HD analogue output
  • Material: Metal
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • Communication: HIKVISION-C
  • Power Supply: 12 VDC ±25%/PoC.af
  • Consumption: Max. 4.3 W
  • IR Range: Up to 30 m
