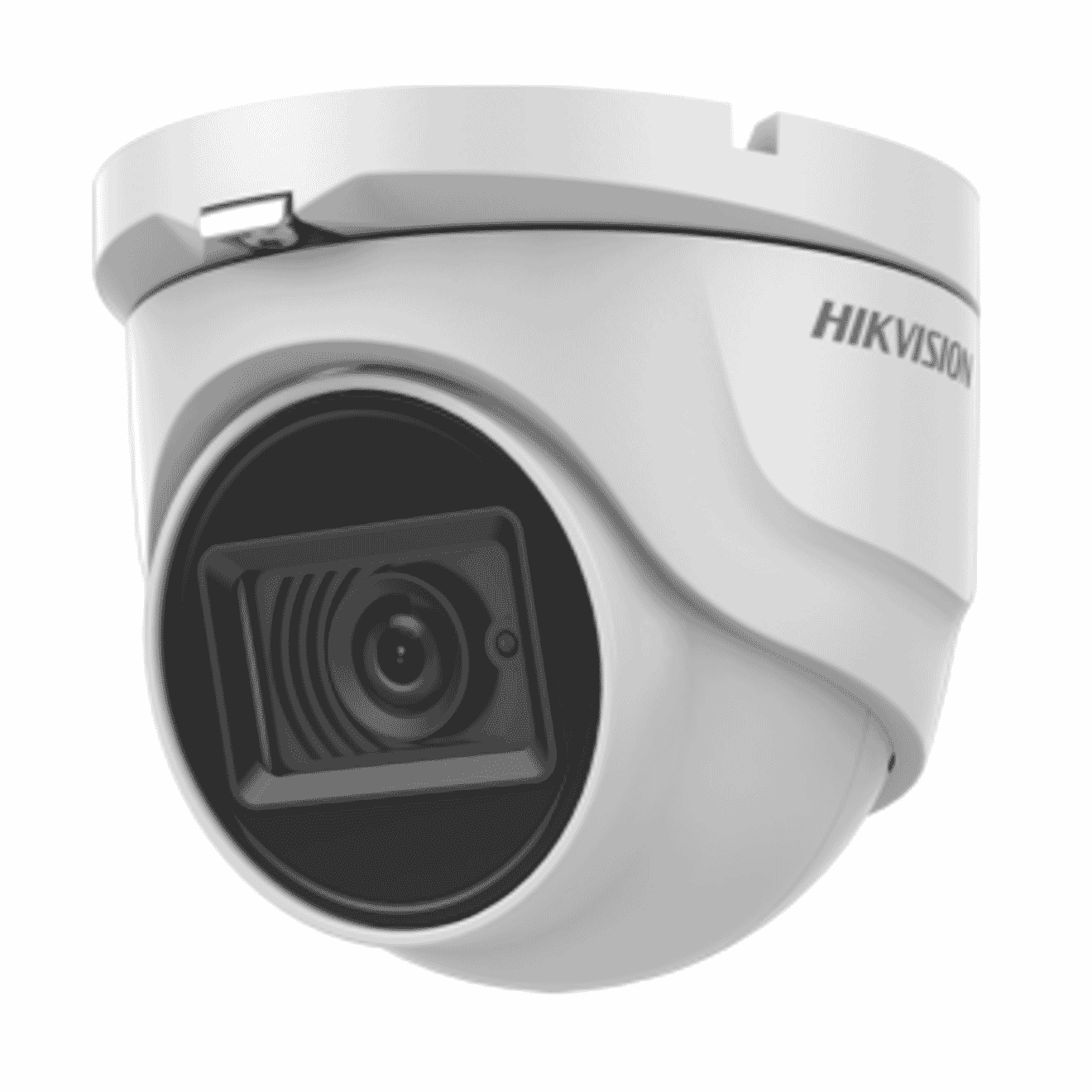

Hikvision DS-2CE76U1T-ITMF 8MP 2.8mm Fixed Lens, EXIR 2.0, IR 30m

Hikvision DS-2CE76U1T-ITMF 8MP 2.8mm Fixed Lens, EXIR 2.0, IR 30m

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 8MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE76U1T-ITMF 8MP 2.8mm Fixed Lens, EXIR 2.0, IR 30m
Login to View Price

Specifications

  • Image Sensor: 8.29 megapixel progressive scan CMOS
  • Max. Resolution: 3840 (H) x 2160 (V)
  • Min. Illumination: Colour: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/12.5 s to 1/50,000 sNTSC: 1/15 s to 1/50,000 s
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
  • Lens Type: 2.8 mm fixed focal lens
  • Focal Length & FOV: Horizontal FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
  • Lens Mount: M16
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes
  • Image Settings: Brightness; Sharpness; AGC
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: BLC; HLC
  • Power: 12 VDC ±25%, max. 5.3 W*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: 90 mm x 79.37 mm (3.54" x 3.12")
  • Weight: Approx. 310 g (0.68 lb.)
  • Language: English
  • Protection: IP67
  • Signal System: PAL/NTSC
  • Frame Rate: TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fpsCVI: 8MP@12.5fps, 8MP@15fpsAHD: 8M@12.5fps, 8M@15fpsCVBS: 960H P/N
  • Day/Night Mode: Auto/Colour/BW (Black and White)
  • Noise Reduction: 2D DNR
  • White Balance: Auto/Manual
  • Video Output: 1 HD analogue outputSwitchable TVI/AHD/CVI/CVBS
  • Material: Metal
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F)Humidity: 90% or less (non-condensation)
  • Communication: HIKVISION-C

Camera
  • Image Sensor: 8.29 megapixel progressive scan CMOS
  • Max. Resolution: 3840 (H) x 2160 (V)
  • Min. Illumination: Colour: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/12.5 s to 1/50,000 sNTSC: 1/15 s to 1/50,000 s
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°

Lens
  • Lens Type: 2.8 mm fixed focal lens
  • Focal Length & FOV: Horizontal FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
  • Lens Mount: M16

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes

  • Image Settings: Brightness; Sharpness; AGC
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: BLC; HLC

General
  • Power: 12 VDC ±25%, max. 5.3 W*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: 90 mm x 79.37 mm (3.54" x 3.12")
  • Weight: Approx. 310 g (0.68 lb.)
  • Language: English

Approval
  • Protection: IP67

Other
  • Signal System: PAL/NTSC
  • Frame Rate: TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fpsCVI: 8MP@12.5fps, 8MP@15fpsAHD: 8M@12.5fps, 8M@15fpsCVBS: 960H P/N
  • Day/Night Mode: Auto/Colour/BW (Black and White)
  • Noise Reduction: 2D DNR
  • White Balance: Auto/Manual
  • Video Output: 1 HD analogue outputSwitchable TVI/AHD/CVI/CVBS
  • Material: Metal
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F)Humidity: 90% or less (non-condensation)
  • Communication: HIKVISION-C
