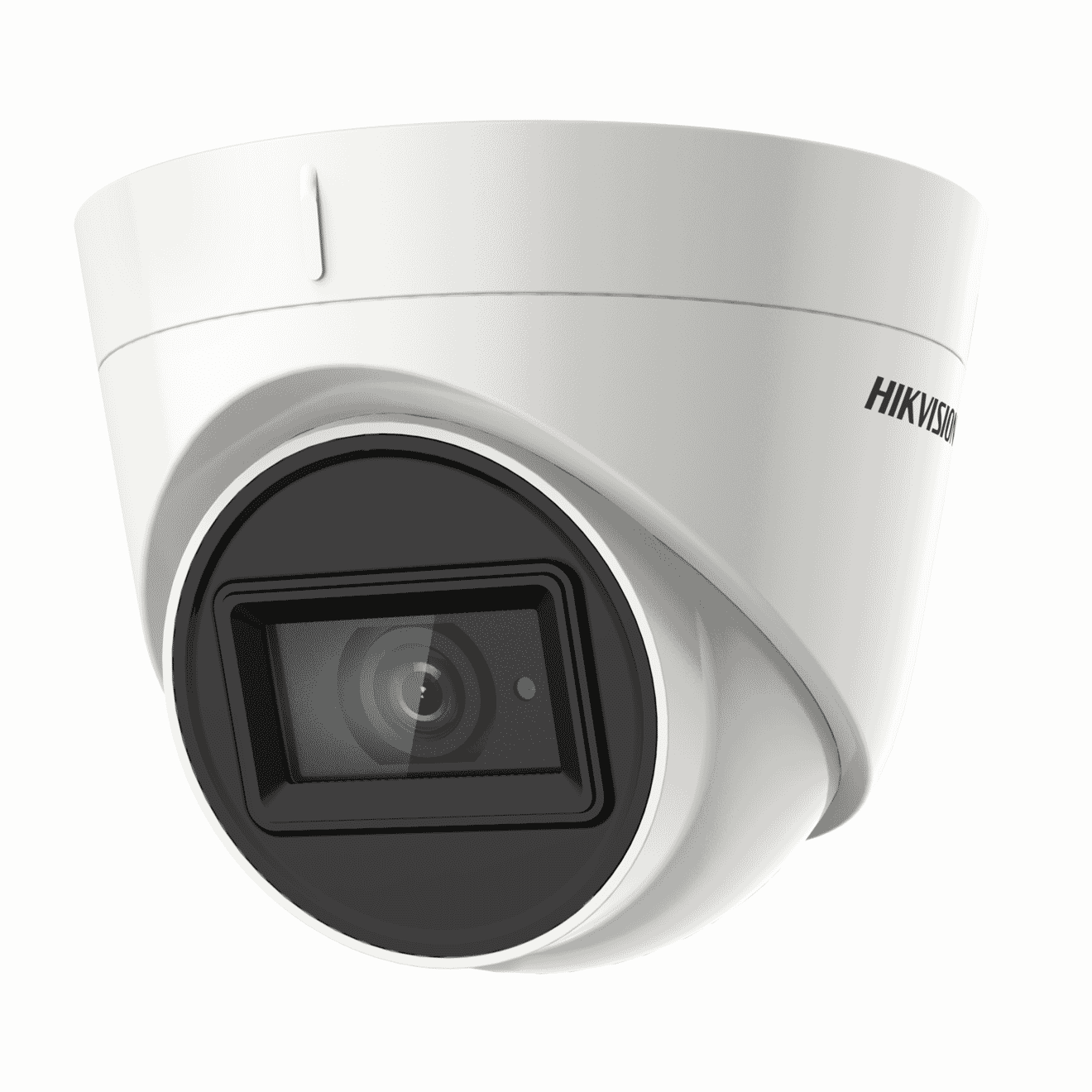

Hikvision DS-2CE78D0T-IT3FS 2MP 2.8mm Fixed Lens, Built-in Mic, IR 40m

Hikvision DS-2CE78D0T-IT3FS 2MP 2.8mm Fixed Lens, Built-in Mic, IR 40m

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 2MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE78D0T-IT3FS 2MP 2.8mm Fixed Lens, Built-in Mic, IR 40m
Login to View Price

Specifications

  • Image Sensor: 2 MP CMOS
  • Max. Resolution: 1920 (H) x 1080 (V)
  • Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
  • Lens Type: 2.8 mm fixed lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
  • Lens Mount: M12
  • Image Parameters Switch: STD/HIGH-SAT
  • Image Settings: Brightness, Sharpness, Mirror, Smart IR
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: Yes
  • Dimension: Φ 109.82 mm x 91.03 mm (Φ 4.32" x 3.6")
  • Weight: Approx. 300 g (0.66 lb.)
  • Language: English
  • Protection: IP67
  • Signal System: PAL/NTSC
  • Frame Rate: TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
  • Day/Night Mode: Auto/Color/BW (Black and White)
  • White Balance: Auto/Manual
  • AGC: Support
  • Video Output: Switchable TVI/AHD/CVI/CVBS
  • Material: Main Body: Metal Enclosure: Plastic
  • Operating Condition: €˜-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • Communication: HIKVISION-C
  • Power Supply: 12 VDC ± 25%
  • Consumption: Max. 3.7 W
  • IR Range: Up to 40 m

Camera
  • Image Sensor: 2 MP CMOS
  • Max. Resolution: 1920 (H) x 1080 (V)
  • Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

Lens
  • Lens Type: 2.8 mm fixed lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
  • Lens Mount: M12

  • Image Parameters Switch: STD/HIGH-SAT
  • Image Settings: Brightness, Sharpness, Mirror, Smart IR
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: Yes

General
  • Dimension: Φ 109.82 mm x 91.03 mm (Φ 4.32" x 3.6")
  • Weight: Approx. 300 g (0.66 lb.)
  • Language: English

Approval
  • Protection: IP67

Other
  • Signal System: PAL/NTSC
  • Frame Rate: TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
  • Day/Night Mode: Auto/Color/BW (Black and White)
  • White Balance: Auto/Manual
  • AGC: Support
  • Video Output: Switchable TVI/AHD/CVI/CVBS
  • Material: Main Body: Metal Enclosure: Plastic
  • Operating Condition: €˜-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • Communication: HIKVISION-C
  • Power Supply: 12 VDC ± 25%
  • Consumption: Max. 3.7 W
  • IR Range: Up to 40 m

Resources

Access comprehensive documentation, installation guides, and the latest updates to get the most out of your device.

Need additional support? Visit our

documentation center or contact support
