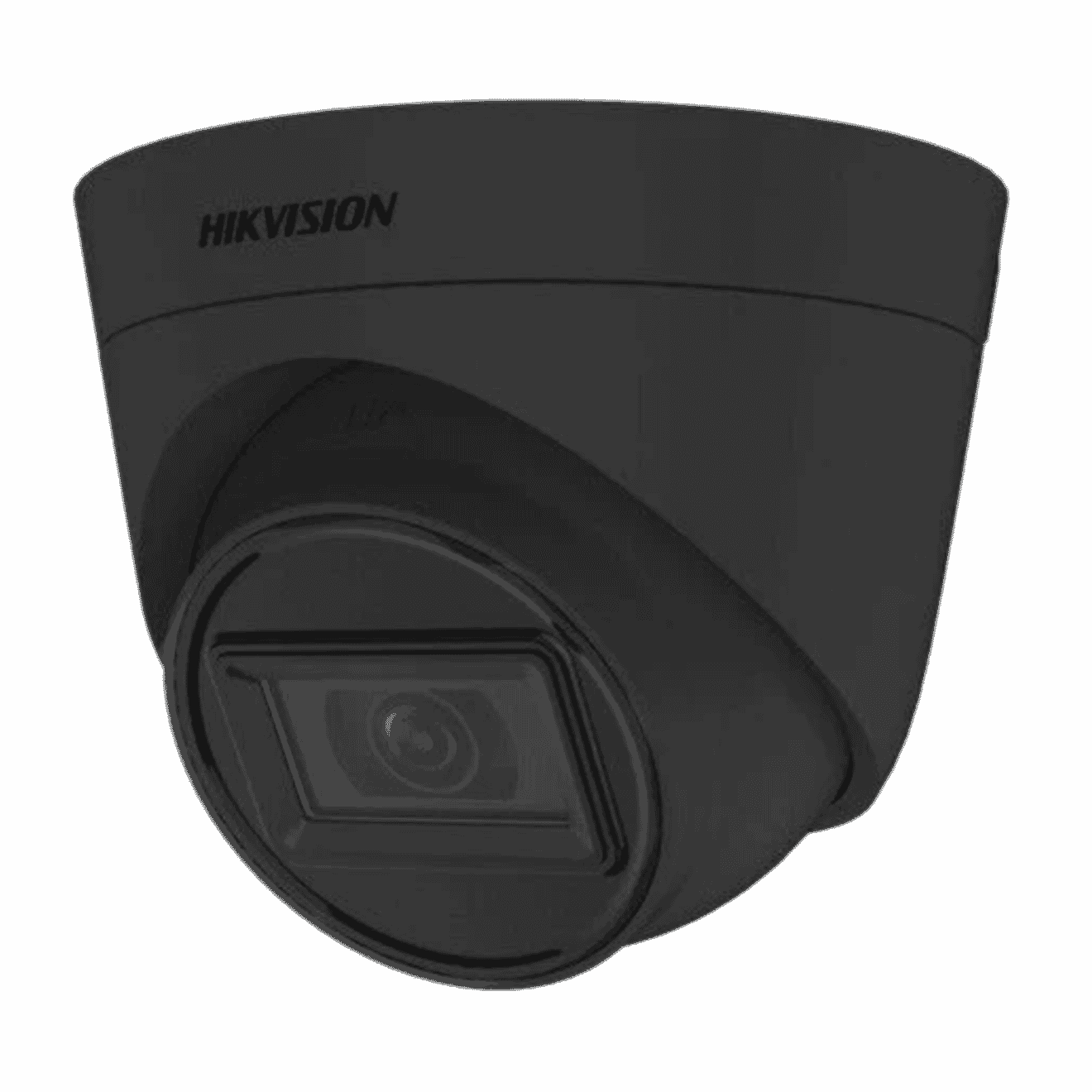

Hikvision DS-2CE78H0T-IT3E (2.8mm) 5MP Fixed Turret Camera EXIR BLACK

Hikvision DS-2CE78H0T-IT3E (2.8mm) 5MP Fixed Turret Camera EXIR BLACK

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 5MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE78H0T-IT3E (2.8mm) 5MP Fixed Turret Camera EXIR BLACK
Login to View Price

Specifications

  • Image Sensor: 5 MP CMOS
  • Max. Resolution: 2560 (H) x 1944 (V)
  • Min. Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50, 000 sNTSC: 1/30 s to 1/50, 000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
  • Lens Type: 2.8 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV: 110°
  • Lens Mount: M12
  • Image Parameters Switch: STD/HIGH-SAT
  • Image Settings: Brightness, Sharpness, Smart IR
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: DWDR, BLC, HLC, Global
  • Dimension: 91.0 mm x Ø109.8 mm (3.58" x Ø4.32")
  • Weight: Approx. 326 g (0.72 lb.)
  • Language: English
  • Protection: IP67
  • Signal System: PAL/NTSC
  • Frame Rate: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps
  • Day/Night Mode: Auto/Colour/BW (Black and White)
  • Noise Reduction: 2D DNR
  • White Balance: Auto/Manual
  • AGC: Yes
  • Video Output: 1 HD analogue output
  • Material: Front Cover: PlasticMain Body: Metal
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • Communication: HIKVISION-C
  • Power Supply: 12 VDC ±25%PoC.af*You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
  • Consumption: Max. 3 W
  • IR Range: Up to 40 m

Camera
  • Image Sensor: 5 MP CMOS
  • Max. Resolution: 2560 (H) x 1944 (V)
  • Min. Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50, 000 sNTSC: 1/30 s to 1/50, 000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°

Lens
  • Lens Type: 2.8 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV: 110°
  • Lens Mount: M12

  • Image Parameters Switch: STD/HIGH-SAT
  • Image Settings: Brightness, Sharpness, Smart IR
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: DWDR, BLC, HLC, Global

General
  • Dimension: 91.0 mm x Ø109.8 mm (3.58" x Ø4.32")
  • Weight: Approx. 326 g (0.72 lb.)
  • Language: English

Approval
  • Protection: IP67

Other
  • Signal System: PAL/NTSC
  • Frame Rate: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps
  • Day/Night Mode: Auto/Colour/BW (Black and White)
  • Noise Reduction: 2D DNR
  • White Balance: Auto/Manual
  • AGC: Yes
  • Video Output: 1 HD analogue output
  • Material: Front Cover: PlasticMain Body: Metal
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • Communication: HIKVISION-C
  • Power Supply: 12 VDC ±25%PoC.af*You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
  • Consumption: Max. 3 W
  • IR Range: Up to 40 m
