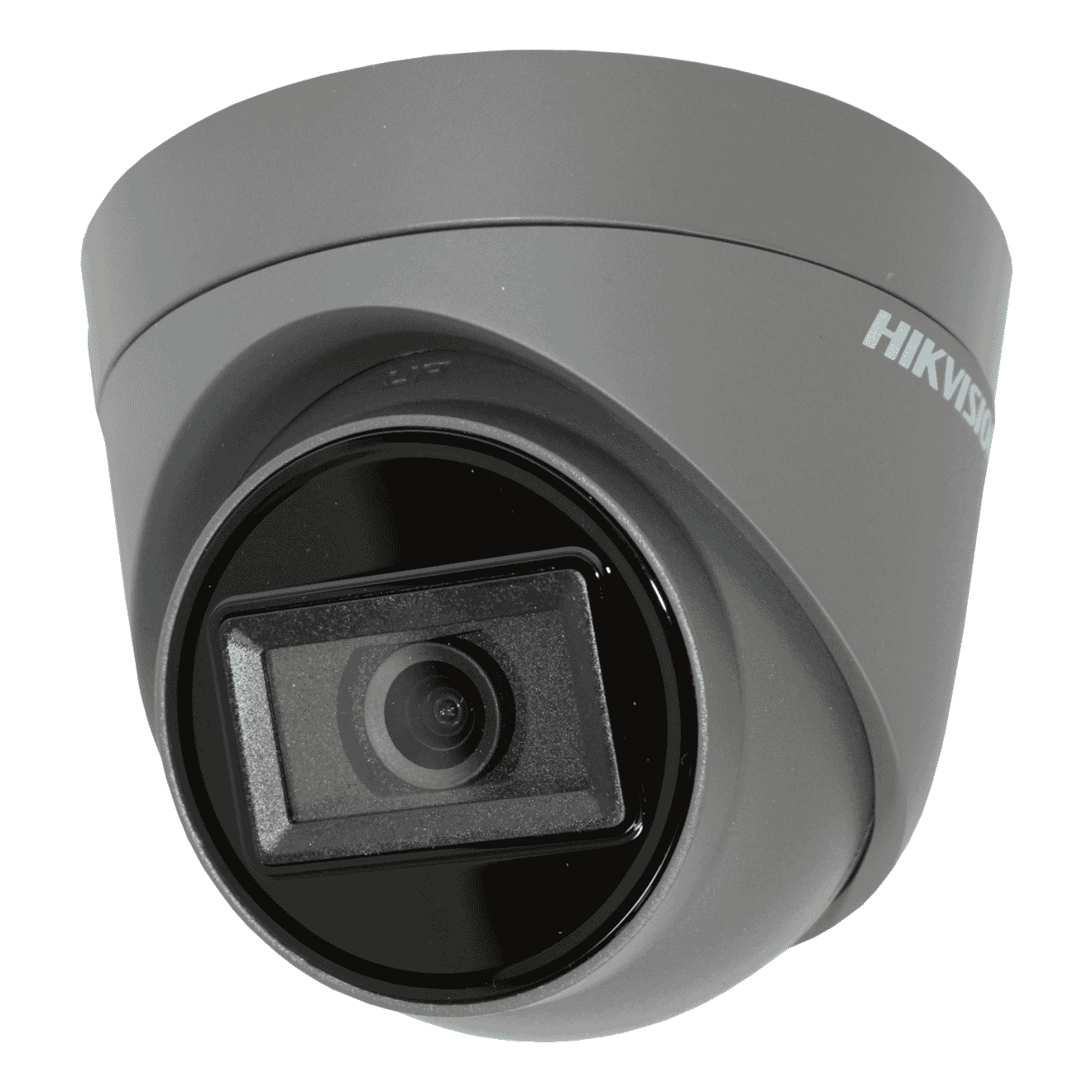

Hikvision DS-2CE78U1T-IT3F Grey 8MP 2.8mm Fixed Lens, IR 60m

Hikvision DS-2CE78U1T-IT3F Grey 8MP 2.8mm Fixed Lens, IR 60m

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 8MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE78U1T-IT3F Grey 8MP 2.8mm Fixed Lens, IR 60m
Login to View Price

Specifications

  • Image Sensor: 8.29 megapixel progressive scan CMOS
  • Max. Resolution: 3840 (H) x 2160 (V)
  • Min. Illumination: Color: 0.01 Lux@ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/12.5 s to 1/50,000 sNTSC: 1/15 s to 1/50,000 s
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
  • Lens Type: 2.8 mm fixed lens
  • Focal Length & FOV: Horizontal FOV: 102.2° (2.8 mm), 79°
  • Lens Mount: M16
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 60 m
  • Smart Supplement Light: Yes
  • Image Settings: AGC; Brightness; Sharpness
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: HLC; BLC
  • Power: 12 VDC ±25%*You are recommended to use one power adapter to supply the power for one camera.Max. 5.3 W
  • Dimension: Ø 109.82 mm x 91.03 mm (Ø 4.32" x 3.6")
  • Weight: Approx. 320 g (0.71 lb.)
  • Language: English
  • Protection: IP67
  • Signal System: PAL/NTSC
  • Frame Rate: TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fpsCVI: 8MP@12.5fps, 8MP@15fpsAHD: 8M@12.5fps, 8M@15fpsCVBS: 960H P/N
  • Day/Night Mode: Auto/Color/BW (Black and White)
  • Noise Reduction: 2D DNR
  • White Balance: Auto/Manual
  • Video Output: Switchable TVI/AHD/CVI/CVBS;1 HD analog output
  • Material: Main body: Metal, Enclosure: Plastic
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • Communication: HIKVISION-C

Camera
  • Image Sensor: 8.29 megapixel progressive scan CMOS
  • Max. Resolution: 3840 (H) x 2160 (V)
  • Min. Illumination: Color: 0.01 Lux@ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/12.5 s to 1/50,000 sNTSC: 1/15 s to 1/50,000 s
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°

Lens
  • Lens Type: 2.8 mm fixed lens
  • Focal Length & FOV: Horizontal FOV: 102.2° (2.8 mm), 79°
  • Lens Mount: M16

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 60 m
  • Smart Supplement Light: Yes

  • Image Settings: AGC; Brightness; Sharpness
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: HLC; BLC

General
  • Power: 12 VDC ±25%*You are recommended to use one power adapter to supply the power for one camera.Max. 5.3 W
  • Dimension: Ø 109.82 mm x 91.03 mm (Ø 4.32" x 3.6")
  • Weight: Approx. 320 g (0.71 lb.)
  • Language: English

Approval
  • Protection: IP67

Other
  • Signal System: PAL/NTSC
  • Frame Rate: TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fpsCVI: 8MP@12.5fps, 8MP@15fpsAHD: 8M@12.5fps, 8M@15fpsCVBS: 960H P/N
  • Day/Night Mode: Auto/Color/BW (Black and White)
  • Noise Reduction: 2D DNR
  • White Balance: Auto/Manual
  • Video Output: Switchable TVI/AHD/CVI/CVBS;1 HD analog output
  • Material: Main body: Metal, Enclosure: Plastic
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • Communication: HIKVISION-C
