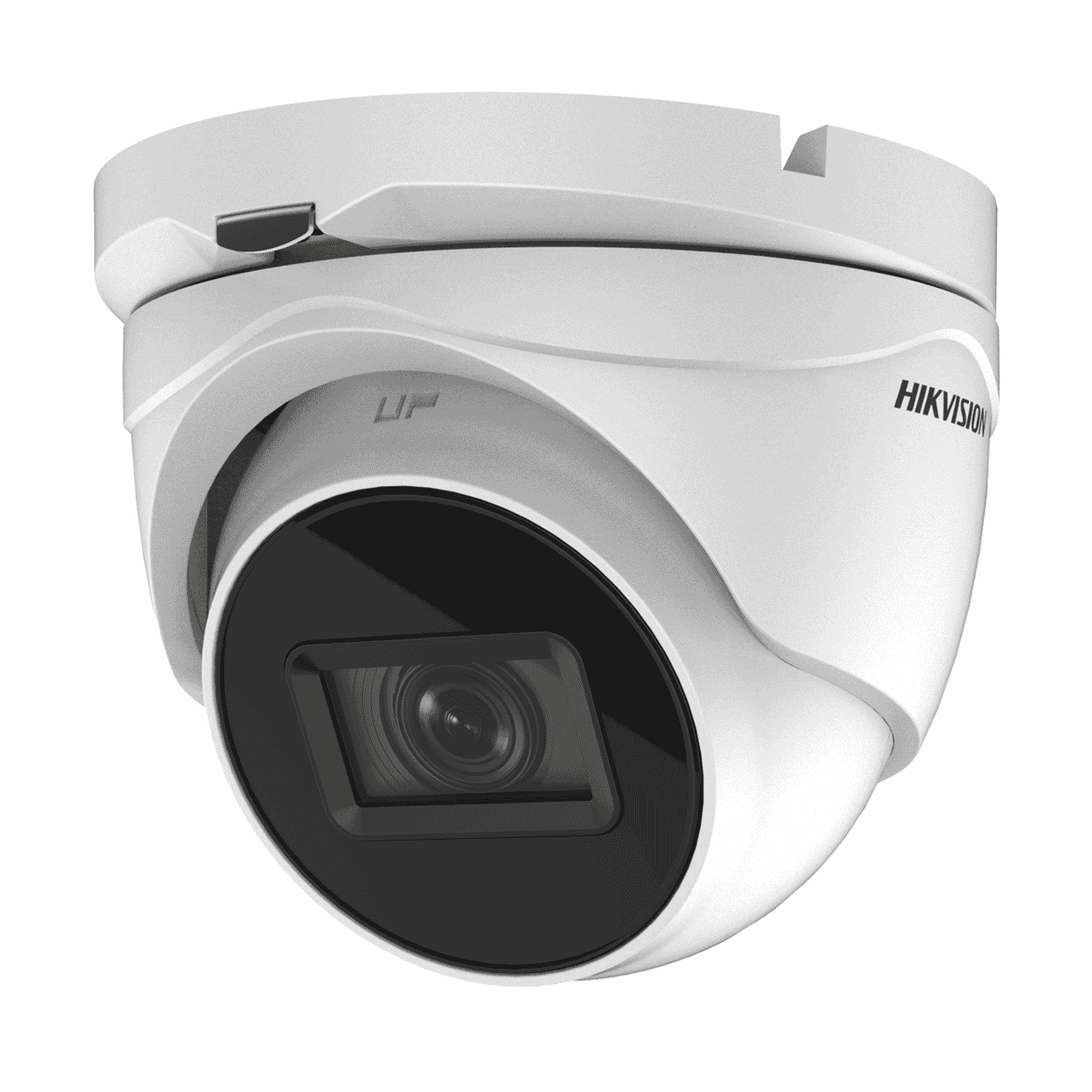

Hikvision DS-2CE79H8T-AIT3ZF 5MP TVI Low Light Turret MFZ

Hikvision DS-2CE79H8T-AIT3ZF 5MP TVI Low Light Turret MFZ

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 5MP
  • Verifocal
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CE79H8T-AIT3ZF 5MP TVI Low Light Turret MFZ
Login to View Price

Specifications

  • Image Sensor: 5 MP CMOS
  • Max. Resolution: 2560 (H) x 1944 (V)
  • Min. Illumination: 0.003 Lux@ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/12.5s to 1/50, 000 sNTSC: 1/15 s to 1/50, 000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
  • Lens Type: 2.7 mm to 13.5 mm motorized varifocal lens
  • Focal Length & FOV: 92.3° to 29.3°
  • Lens Mount: Φ14
  • Image Parameters Switch: STD/HIGH-SAT
  • Image Settings: Brightness, Sharpness, Mirror, Smart IR
  • Wide Dynamic Range (WDR): =130 dB
  • Image Enhancement: BLC, HLC
  • Dimension: 123.86 mm x 134.3 mm x 110.24 mm (4.88" x 5.29" x 4.34")
  • Weight: Approx. 630 g (1.39 lb.)
  • Language: English
  • Protection: IP67
  • Signal System: PAL/NTSC
  • Frame Rate: TVI: 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fpsAHD: 5MP@20fps, 4MP@25fps, 4MP@30fpsCVI: 4MP@25fps, 4MP@30fpsCVBS: PAL, NTSC
  • Day/Night Mode: Auto/Color/BW (Black and White)
  • White Balance: ATW/MANUAL
  • AGC: Support
  • Video Output: Switchable TVI/AHD/CVI/CVBS
  • Material: Metal
  • Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • Communication: HIKVISION-C
  • Power Supply: 12 VDC ± 20%, 24 VAC ± 20%
  • Consumption: Max. 10.5 W
  • IR Range: Up to 60 m

Camera
  • Image Sensor: 5 MP CMOS
  • Max. Resolution: 2560 (H) x 1944 (V)
  • Min. Illumination: 0.003 Lux@ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/12.5s to 1/50, 000 sNTSC: 1/15 s to 1/50, 000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°

Lens
  • Lens Type: 2.7 mm to 13.5 mm motorized varifocal lens
  • Focal Length & FOV: 92.3° to 29.3°
  • Lens Mount: Φ14

  • Image Parameters Switch: STD/HIGH-SAT
  • Image Settings: Brightness, Sharpness, Mirror, Smart IR
  • Wide Dynamic Range (WDR): =130 dB
  • Image Enhancement: BLC, HLC

General
  • Dimension: 123.86 mm x 134.3 mm x 110.24 mm (4.88" x 5.29" x 4.34")
  • Weight: Approx. 630 g (1.39 lb.)
  • Language: English

Approval
  • Protection: IP67

Other
  • Signal System: PAL/NTSC
  • Frame Rate: TVI: 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fpsAHD: 5MP@20fps, 4MP@25fps, 4MP@30fpsCVI: 4MP@25fps, 4MP@30fpsCVBS: PAL, NTSC
  • Day/Night Mode: Auto/Color/BW (Black and White)
  • White Balance: ATW/MANUAL
  • AGC: Support
  • Video Output: Switchable TVI/AHD/CVI/CVBS
  • Material: Metal
  • Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • Communication: HIKVISION-C
  • Power Supply: 12 VDC ± 20%, 24 VAC ± 20%
  • Consumption: Max. 10.5 W
  • IR Range: Up to 60 m

Resources

Access comprehensive documentation, installation guides, and the latest updates to get the most out of your device.

Need additional support? Visit our

documentation center or contact support
