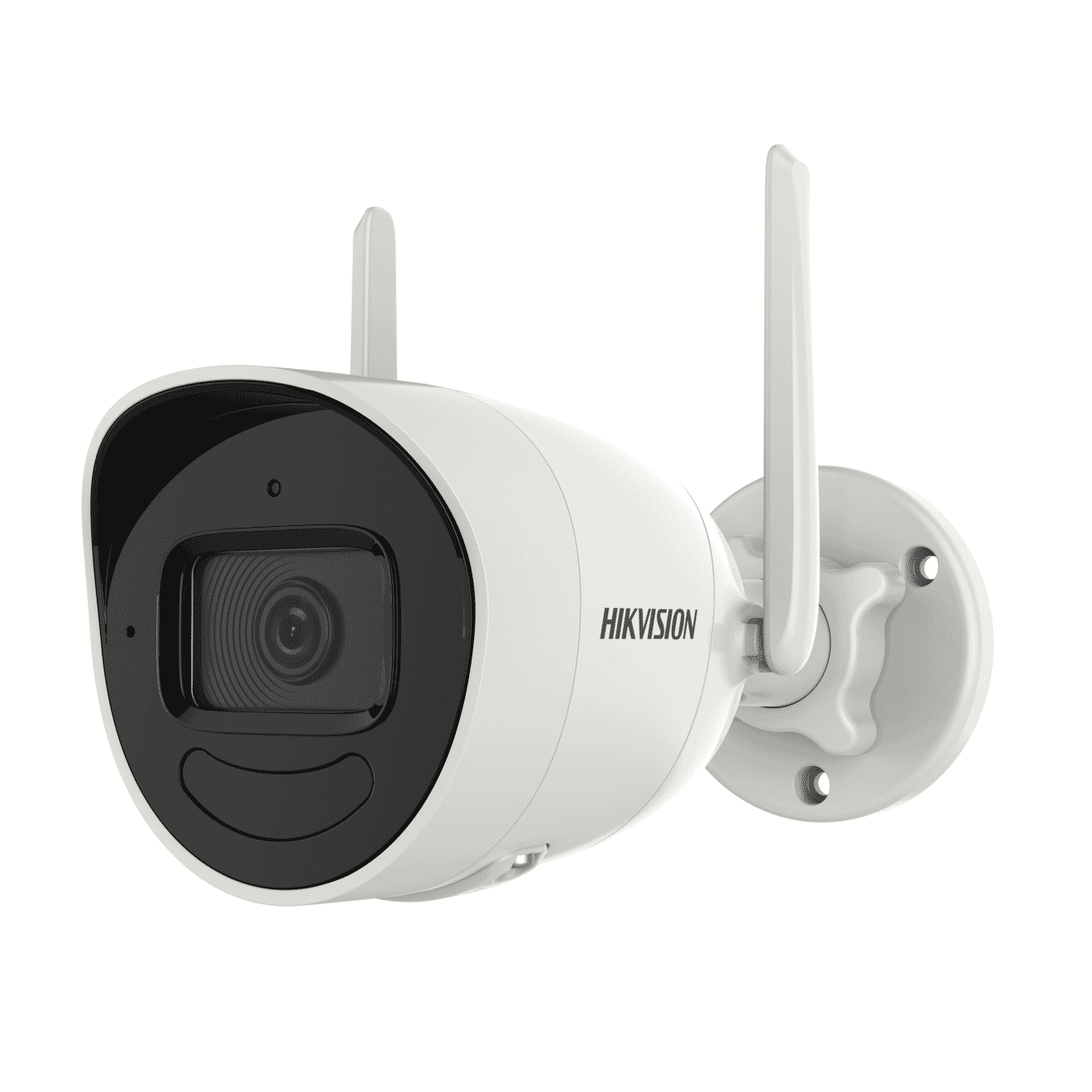

Hikvision DS-2CV2041G2-IDW (2.8mm) 4MP Fixed Bullet Wi-Fi Camera IR Mic Speaker EU
Specifications
- Image Sensor: 1/3" Progressive Scan CMOS
- Max. Resolution: 2560 × 1440
- Min. Illumination: Color: 0.5 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time: 1/25 s to 1/10000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV: 2.8 mm, horizontal FOV 97°, vertical FOV 53°, diagonal FOV 117°4 mm, horizontal FOV 82°, vertical FOV 44°, diagonal FOV 100°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.6
- DORI: 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
- Supplement Light Type: IR
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Main Stream: 50 Hz:20 fps (2560 × 1440),25 fps (1920 × 1080, 1280 × 720)60 Hz:20 fps (2560 × 1440),30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (768 x 432, 512 × 288)60 Hz: 30 fps (768 x 432, 512 × 288)
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 256 Kbps to 4 Mbps
- H.264 Type: Baseline Profile,Main Profile,High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR,VBR
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, Bonjour
- Simultaneous Live View: Up to 4 channels
- API: NA
- User/Host: Only one user: administrator
- Security: Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS
- Network Storage: NAS (NFS, SMB/CIFS),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client: Hik-Connect, iVMS-4200
- Web Browser: NA
- Image Settings: Auto
- Day/Night Switch: Auto, Schedule, Day, Night
- Wide Dynamic Range (WDR): 80 dB
- SNR: = 52 dB
- Image Enhancement: BLC, 3D DNR
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset Key: Yes
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), exception
- Linkage: Upload to NAS/memory card,notify surveillance center,trigger recording,trigger capture
- Power: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
- Dimension: 175.6 mm × 73 mm × 89.1 mm (6.9" × 2.9" × 3.5")
- Package Dimension: 260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
- Weight: Approx. 345 g (0.8 lb.)
- With Package Weight: Approx. 635 g (1.4 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: English
- General Function: Heartbeat, mirror, password protection
- EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
- Safety: CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
- Protection: IP66: IEC 60529-2013
- Depth of Field: 2.8 mm: 1 m to 84 mm: 1.5 m to 8
- Audio Compression: G.711/G.722.1/G.726/PCM/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz
- Environment Noise Filtering: Yes
- Transfer Rate: 11n: up to 300 Mbps
- Wi-Fi Protocol: 802.11n: OFDM,802.11b: DSSS,802.11g: OFDM
- Frequency Range: 2.412 GHz to 2.472 GHz
- Channel Bandwidth: 20 MHz
- Modulation: 802.11n: BPSK, QPSK, 16QAM, and 64QAM,802.11b: DBPSK and DQPSK, CCK,802.11g: BPSK, QPSK, 16QAM, and 64QAM
- Wireless Range: Up to 120 m(The performance varies based on actual environment)
- Antenna: 2 Antennas
- Built-in Microphone: Yes
- Built-in Speaker: Yes
- Material: Front cover: metal, back cover: plastic
- RF: CE-RED (EN 301489-1 V2.1.1(BT or 2.4G)
