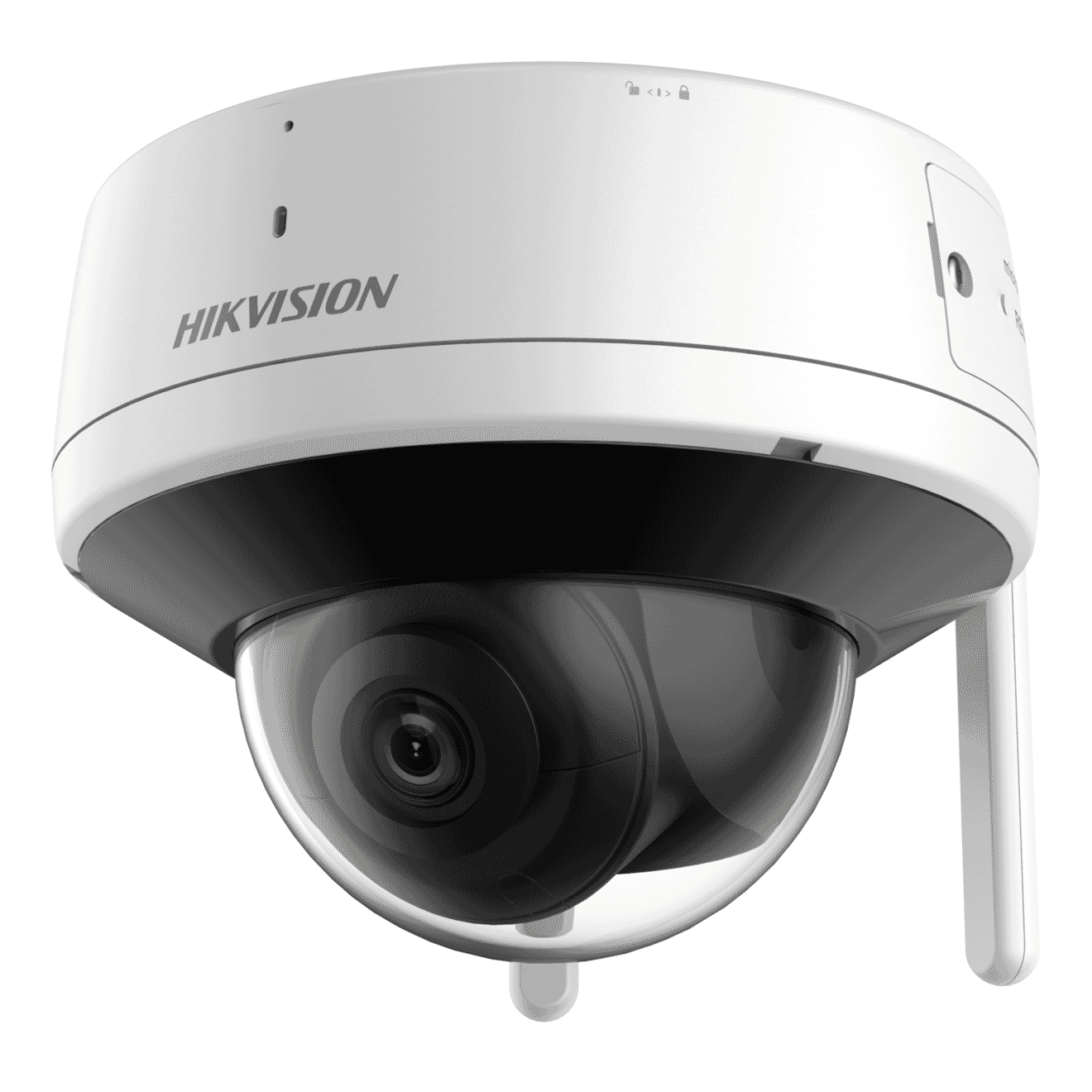

Hikvision DS-2CV2141G2-IDW (2.8mm) 4MP Fixed Dome Wi-Fi Camera IR Mic Speaker EU
Specifications
- Image Sensor: 1/3" Progressive Scan CMOS
- Max. Resolution: 2560 × 1440
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV: 2.8 mm, horizontal FOV 95°, vertical FOV 53°, diagonal FOV 111°4 mm, horizontal FOV 79°, vertical FOV 40°, diagonal FOV 94°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.6
- DORI: 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
- Supplement Light Type: IR
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Main Stream: 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile,Main Profile,High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR,VBR
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
- User/Host: Up to 32 users. 3 levels: administrator, operator and user
- Security: Password protection,complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS
- Network Storage: NAS (NFS, SMB/CIFS),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client: Wired network: Hik-Connect, iVMS-4200Wi-Fi: iVMS-4200*Wi-Fi connection with Hik-Connect directly is not possible.
- Web Browser: Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+
- Image Settings: saturation, brightness, contrast, sharpness, adjustable by client software or web browser
- Day/Night Switch: Auto, Schedule, Day, Night
- Wide Dynamic Range (WDR): 120 dB
- SNR: = 52 dB
- Image Enhancement: BLC, 3D DNR
- Privacy Mask: 4 programmable polygon privacy masks
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Reset Key: Yes
- Basic Event: Motion detection, exception
- Linkage: notify surveillance center,trigger recording,trigger capture,Upload to NAS/memory card
- Power: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
- Dimension: Ø126 mm × 96.1 mm (Ø5 × 3.8\")"
- Package Dimension: 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
- Weight: Approx. 590 g (1.3 lb.)
- With Package Weight: Approx. 989 g (2.2 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: English, Ukrainian
- General Function: Anti-banding, heartbeat, mirror, password protection, watermark, IP address filter
- EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
- Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
- Protection: IP66: IEC 60529-2013
- Depth of Field: 2.8 mm: 1.4 m to 84 mm: 1.5 m to 8
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz
- Environment Noise Filtering: Yes
- Wi-Fi Protocol: 802.11n: OFDM,802.11b: CCK, QPSK, BPSK,802.11g: OFDM
- Frequency Range: 2.412 GHz to 2.472 GHz
- Channel Bandwidth: 20/40 MHz
- Modulation: 802.11n: OFDM ,802.11b: CCK, QPSK, BPSK,802.11g: OFDM
- Transfer Rate: 11n: up to 300 Mbps
- Wireless Range: Up to 120 m(The performance varies based on actual environment)
- Antenna: 2 Antennas
- Built-in Microphone: Yes
- Built-in Speaker: Yes
- Material: Polycarbonate cover, polycarbonate body
- RF: FCC ID (FCC Part 15.247(BT or 2.4G));IC ID (RSS-247(BT or 2.4G));CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));MIC (JPN)
