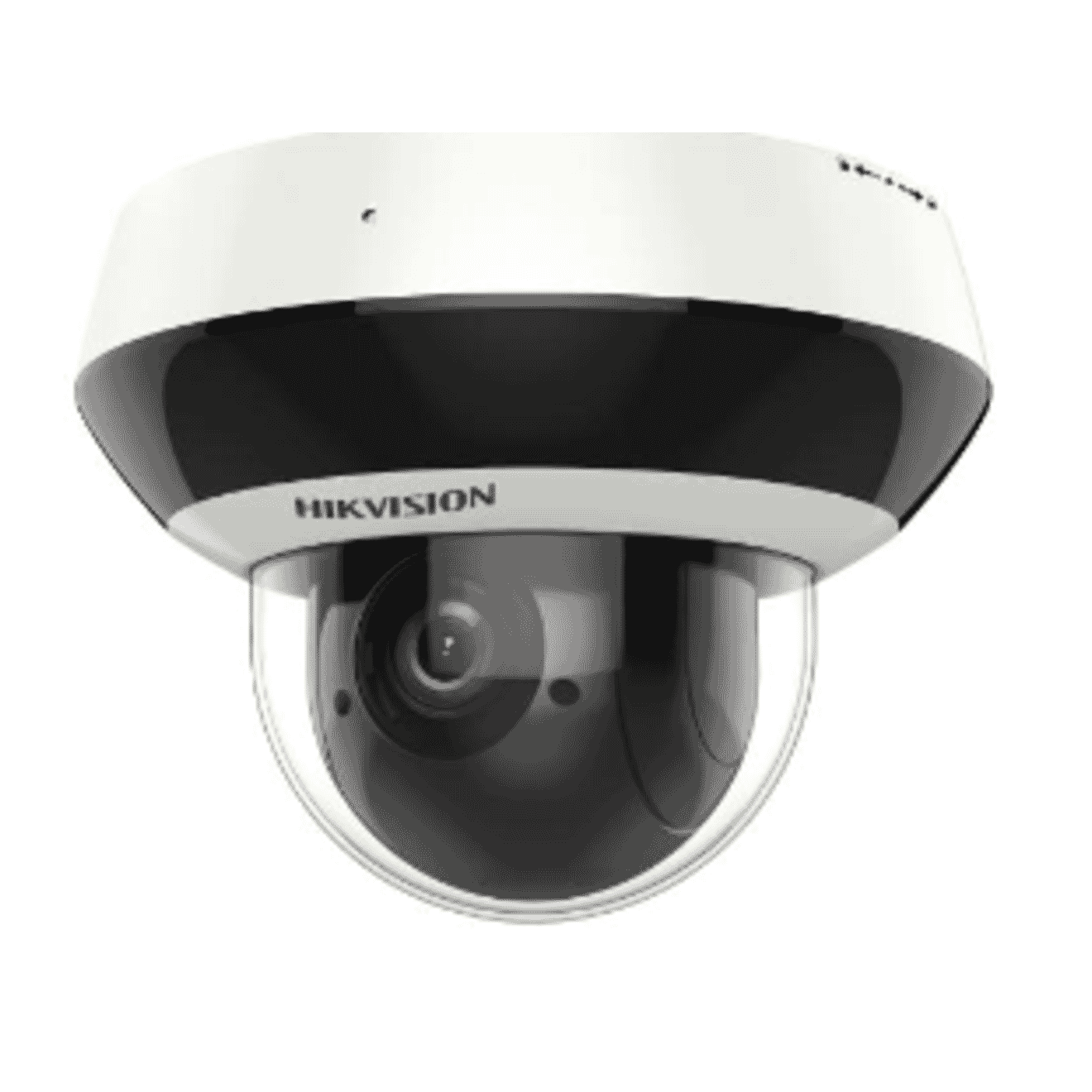

Hikvision DS-2DE2A404IW-DE3(C0)(S6)(C) 4MP Mini PTZ IP Camera IR Dome CCTV | DS-2DE2A404IW-DE3(C0)(S6)(C)

Hikvision DS-2DE2A404IW-DE3(C0)(S6)(C) 4MP Mini PTZ IP Camera IR Dome CCTV | DS-2DE2A404IW-DE3(C0)(S6)(C)

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2DE2A404IW-DE3(C0)(S6)(C) 4MP Mini PTZ IP Camera IR Dome CCTV | DS-2DE2A404IW-DE3(C0)(S6)(C)
Login to View Price

Specifications

  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Max. Resolution: 2560 × 1440
  • Min. Illumination: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
  • Day & Night: IR cut filter
  • Aperture: Max. F1.5
  • Supplement Light Type: IR
  • Supplement Light Range: IR Distance: up to 20 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264/MJPEG
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main profile
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 8 fixed regions for each stream
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • Simultaneous Live View: Up to 20 channels
  • API: Open Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users; 3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, HikCentral Pro, Hik-Connect
  • Web Browser: IE 10-11, Chrome 57+, Firefox 52+, Safari 11+
  • Image Parameters Switch: Yes
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: >52dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable
  • Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
  • Basic Event: Motion detection, video tampering alarm, exception
  • Smart Event: Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, and PTZ actions (such as preset)
  • Power: 12 VDC, Max. 9.2 W; PoE (802.3af)
  • Dimension: Ø 130.7 mm ×101.7 mm (Ø 5.15" × 4.00")
  • Weight: Approx. 530 g (1.17 lb.)
  • General Function: Mirror, password protection
  • Protection: IP66 (IEC 60529-2013), IK10, TVS 4000V lightning protection, surge protection and voltage transient protection
  • Shutter Speed: 1/1 s to 1/30,000 s
  • Zoom: 4x optical, 16x digital
  • Slow Shutter: Yes
  • Focal Length: 2.8 to 12 mm
  • FOV: Horizontal FOV 96.796° to 31.68°, vertical FOV 51.16° to 17.798°, diagonal FOV 115.13° to 36.32°
  • Focus: Auto, semi-auto, manual
  • Zoom Speed: Approx. 2 s
  • Movement Range (Pan): 0° to 355°
  • Movement Range (Tilt): 0° to 90°
  • Pan Speed: Pan speed: configurable from 0.1° to 100°/s; preset speed: 100°/s
  • Tilt Speed: Tilt speed: configurable from 0.1° to 100°/s, preset speed 100°/s
  • Proportional Pan: Yes
  • Presets: 300
  • Preset Freezing: Yes
  • Park Action: Preset
  • 3D Positioning: Yes
  • PTZ Status Display: Yes
  • Scheduled Task: Preset, dome reboot, dome adjust
  • Power-off Memory: Yes
  • Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC
  • Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16-64Kbps(AAC)
  • Audio Sampling Rate: AAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 64 kHz
  • Environment Noise Filtering: Yes
  • Defog: Digital Defog
  • Regional Focus: Yes
  • Regional Exposure: Yes
  • On-board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Built-in Microphone: 1 built-in microphone, picking up sounds in the radius up to 5 meters
  • Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KO ± 10%;1 output (line out), line level, output impedance: 600 O
  • Reset: Yes
  • Power Output: 12 VDC, max. 60 mA
  • Operating Condition: -20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing)

Camera
  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Max. Resolution: 2560 × 1440
  • Min. Illumination: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
  • Day & Night: IR cut filter

Lens
  • Aperture: Max. F1.5

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: IR Distance: up to 20 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264/MJPEG
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main profile
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 8 fixed regions for each stream
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • Simultaneous Live View: Up to 20 channels
  • API: Open Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users; 3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, HikCentral Pro, Hik-Connect
  • Web Browser: IE 10-11, Chrome 57+, Firefox 52+, Safari 11+

  • Image Parameters Switch: Yes
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: >52dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable

Interface
  • Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Event
  • Basic Event: Motion detection, video tampering alarm, exception
  • Smart Event: Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, and PTZ actions (such as preset)

General
  • Power: 12 VDC, Max. 9.2 W; PoE (802.3af)
  • Dimension: Ø 130.7 mm ×101.7 mm (Ø 5.15" × 4.00")
  • Weight: Approx. 530 g (1.17 lb.)
  • General Function: Mirror, password protection

Approval
  • Protection: IP66 (IEC 60529-2013), IK10, TVS 4000V lightning protection, surge protection and voltage transient protection

Other
  • Shutter Speed: 1/1 s to 1/30,000 s
  • Zoom: 4x optical, 16x digital
  • Slow Shutter: Yes
  • Focal Length: 2.8 to 12 mm
  • FOV: Horizontal FOV 96.796° to 31.68°, vertical FOV 51.16° to 17.798°, diagonal FOV 115.13° to 36.32°
  • Focus: Auto, semi-auto, manual
  • Zoom Speed: Approx. 2 s
  • Movement Range (Pan): 0° to 355°
  • Movement Range (Tilt): 0° to 90°
  • Pan Speed: Pan speed: configurable from 0.1° to 100°/s; preset speed: 100°/s
  • Tilt Speed: Tilt speed: configurable from 0.1° to 100°/s, preset speed 100°/s
  • Proportional Pan: Yes
  • Presets: 300
  • Preset Freezing: Yes
  • Park Action: Preset
  • 3D Positioning: Yes
  • PTZ Status Display: Yes
  • Scheduled Task: Preset, dome reboot, dome adjust
  • Power-off Memory: Yes
  • Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC
  • Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16-64Kbps(AAC)
  • Audio Sampling Rate: AAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 64 kHz
  • Environment Noise Filtering: Yes
  • Defog: Digital Defog
  • Regional Focus: Yes
  • Regional Exposure: Yes
  • On-board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Built-in Microphone: 1 built-in microphone, picking up sounds in the radius up to 5 meters
  • Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KO ± 10%;1 output (line out), line level, output impedance: 600 O
  • Reset: Yes
  • Power Output: 12 VDC, max. 60 mA
  • Operating Condition: -20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing)
