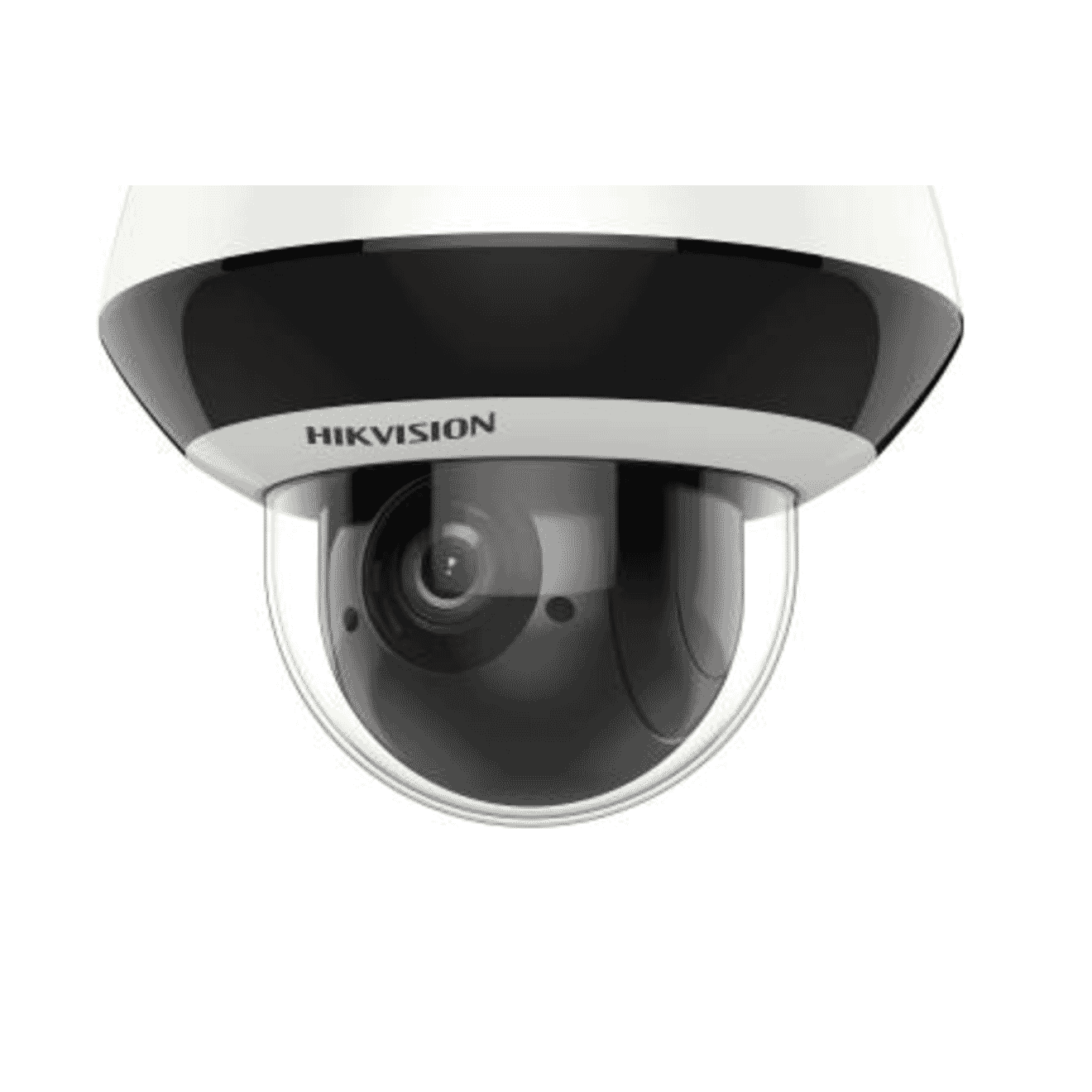

Hikvision DS-2DE2A404IW-DE3(C0)(S6)(C) 4MP Mini PTZ IP Camera IR Dome CCTV | DS-2XE6025G0-I(4MM)(B)

Hikvision DS-2DE2A404IW-DE3(C0)(S6)(C) 4MP Mini PTZ IP Camera IR Dome CCTV | DS-2XE6025G0-I(4MM)(B)

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2DE2A404IW-DE3(C0)(S6)(C) 4MP Mini PTZ IP Camera IR Dome CCTV | DS-2XE6025G0-I(4MM)(B)
Login to View Price

Specifications

  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Max. Resolution: 1920 × 1080
  • Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON),B/W: 0.005 Lux @ (F1.2, AGC ON),0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: -45° to 45°,tilt: -30° to 30°
  • Lens Type: Fixed focal lens, 4 and 6 mm optional
  • Focal Length & FOV: 4 mm, horizontal FOV 87.6°, vertical FOV 44.4°, diagonal FOV 104.9°6 mm, horizontal FOV 53.9°, vertical FOV 28.8°, diagonal FOV 62.8°
  • Lens Mount: M12
  • Aperture: F1.6
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720)60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile,Main Profile,High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 1 fixed region for main stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface,ISAPI,SDK,ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address)
  • Network Storage: Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+
  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night Switch: Day,Night,Auto,Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: = 52 dB
  • Image Enhancement: BLC,HLC
  • Privacy Mask: 4 programmable polygon privacy masks
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
  • Basic Event: Motion detection,exception
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
  • Linkage: Upload to FTP/memory card,notify surveillance center,send email,trigger recording,trigger capture
  • Power: 24 VDC, 0.3 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 7.5 W
  • Dimension: 173.5 mm × 137.8 mm × 137.8 mm (6.8" × 5.4" × 5.4")
  • Package Dimension: 313 mm × 213 mm × 208 mm (12.3" × 8.4" × 8.2")
  • Weight: Approx. 2.04 kg (4.5 lb.)
  • With Package Weight: Approx. 2.84 kg (6.3 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat,mirror,flash log,password reset via email,pixel counter,password protection,anti-banding
  • EMC: FCC: 47 CFR Part 15, Subpart BCE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014RCM: AS/NZS CISPR 32: 2015IC: ICES-003: Issue 7
  • Safety: CB: IEC 62368-1: 2014+A11BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
  • Environment: CE-RoHS: 2011/65/EUReach: Regulation (EC) No 1907/2006
  • Protection: IP68: IEC 60529-2013, IK08: IEC 62262:2002
  • Material: Aluminum alloy
  • Cable Length: 1.3 m (4.27 ft.)
  • Explosion-Proof Protection: ATEX: II 2 G D Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68For explosive gas atmospheres, the maximum surface temperature is 85°C;For flammable dust atmospheres, the maximum surface temperature is 80°C;IIC: for explosive gas atmospheres other than mines susceptible to firedamp;For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.

Camera
  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Max. Resolution: 1920 × 1080
  • Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON),B/W: 0.005 Lux @ (F1.2, AGC ON),0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: -45° to 45°,tilt: -30° to 30°

Lens
  • Lens Type: Fixed focal lens, 4 and 6 mm optional
  • Focal Length & FOV: 4 mm, horizontal FOV 87.6°, vertical FOV 44.4°, diagonal FOV 104.9°6 mm, horizontal FOV 53.9°, vertical FOV 28.8°, diagonal FOV 62.8°
  • Lens Mount: M12
  • Aperture: F1.6

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720)60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile,Main Profile,High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 1 fixed region for main stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface,ISAPI,SDK,ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address)
  • Network Storage: Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+

  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night Switch: Day,Night,Auto,Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: = 52 dB
  • Image Enhancement: BLC,HLC
  • Privacy Mask: 4 programmable polygon privacy masks

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

Event
  • Basic Event: Motion detection,exception
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
  • Linkage: Upload to FTP/memory card,notify surveillance center,send email,trigger recording,trigger capture

General
  • Power: 24 VDC, 0.3 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 7.5 W
  • Dimension: 173.5 mm × 137.8 mm × 137.8 mm (6.8" × 5.4" × 5.4")
  • Package Dimension: 313 mm × 213 mm × 208 mm (12.3" × 8.4" × 8.2")
  • Weight: Approx. 2.04 kg (4.5 lb.)
  • With Package Weight: Approx. 2.84 kg (6.3 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat,mirror,flash log,password reset via email,pixel counter,password protection,anti-banding

Approval
  • EMC: FCC: 47 CFR Part 15, Subpart BCE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014RCM: AS/NZS CISPR 32: 2015IC: ICES-003: Issue 7
  • Safety: CB: IEC 62368-1: 2014+A11BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
  • Environment: CE-RoHS: 2011/65/EUReach: Regulation (EC) No 1907/2006
  • Protection: IP68: IEC 60529-2013, IK08: IEC 62262:2002

Other
  • Material: Aluminum alloy
  • Cable Length: 1.3 m (4.27 ft.)
  • Explosion-Proof Protection: ATEX: II 2 G D Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68For explosive gas atmospheres, the maximum surface temperature is 85°C;For flammable dust atmospheres, the maximum surface temperature is 80°C;IIC: for explosive gas atmospheres other than mines susceptible to firedamp;For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
