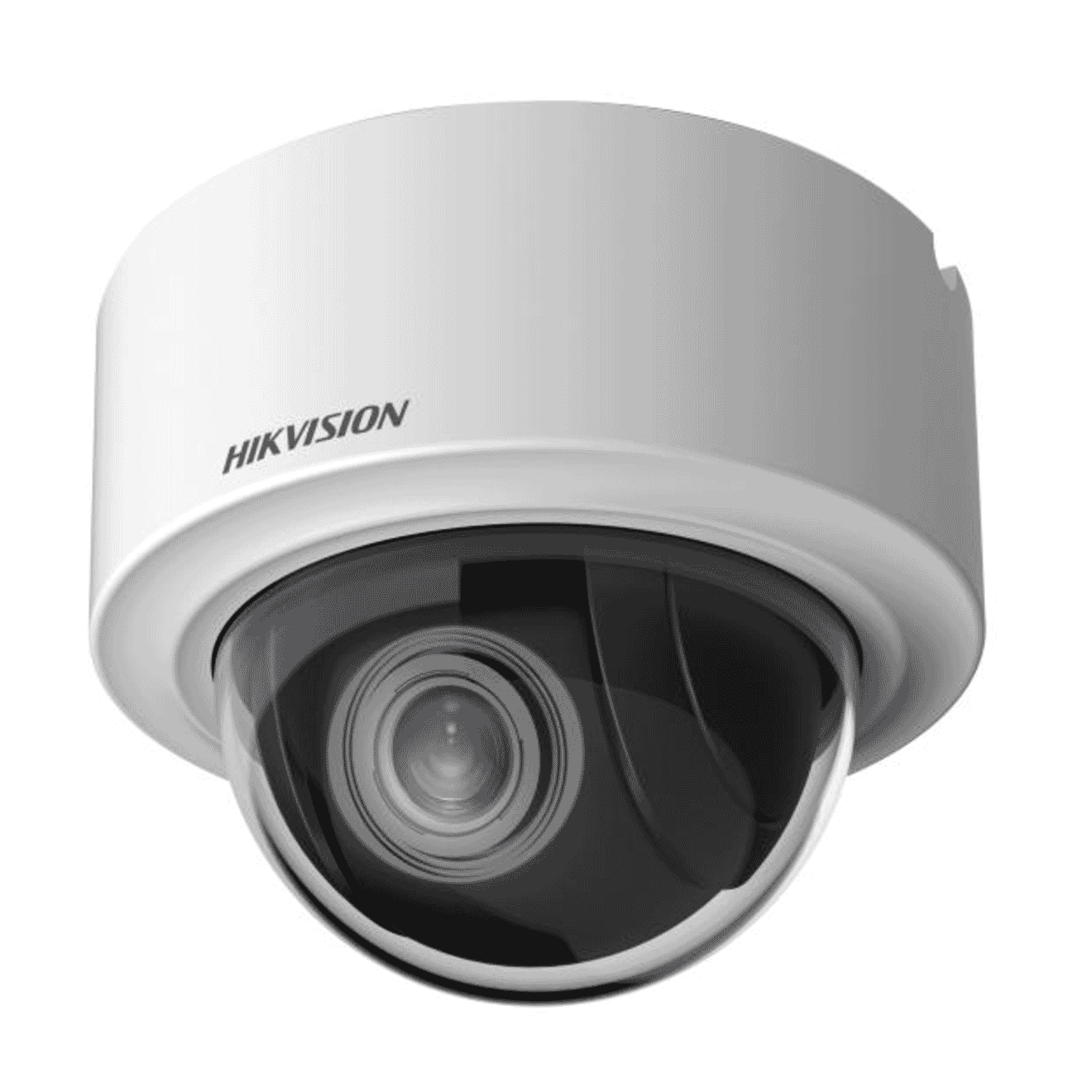

Hikvision DS-2DE3404W-DE (T5) 4MP 4× Network IR Mini PTZ Camera
Hikvision DS-2DE3404W-DE (T5) 4MP 4× Network IR Mini PTZ Camera
- IP CCTV
- 4MP
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-2DE3404W-DE (T5) 4MP 4× Network IR Mini PTZ Camera
Specifications
- Image Sensor: 1/2.8" progressive scan CMOS
- Max. Resolution: 2560 × 1440
- Min. Illumination: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON)
- Day & Night: IR cut filter
- Aperture: Max. F1.5
- Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main profile
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 8 fixed regions for each stream
- Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- Simultaneous Live View: Up to 20 channels
- API: ISUP, ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface
- User/Host: Up to 32 users; 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter
- Network Storage: NAS (NFS, SMB/CIFS)
- Client: iVMS-4200, Hik-Connect, HikCentral
- Web Browser: Firefox 52+, Safari 11+, Chrome 57+, IE11
- Image Parameters Switch: Yes
- Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night Switch: Day, night, auto, scheduled-switch
- Wide Dynamic Range (WDR): 120 dB WDR
- SNR: = 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
- Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable
- Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port
- Basic Event: Motion detection, video tampering alarm, alarm input and output, exception
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan)
- Power: 12 VDC, PoE (802.3af)Max. 10 W
- Dimension: Ø140.7 mm × 107.2 mm (Ø5.54" × 4.22")
- Weight: Approx. 950 g (2.09 lb.)
- Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Privacy mask, mirror, password protection, watermark, IP address filter
- EMC: FCC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 7);KC (KN 32: 2015, KN 35: 2015)
- Safety: UL (UL 62368-1)CB (IEC 62368-1:2014+A11);CE-LVD (EN 62368-1:2014+A11:2017),BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);LOA (IEC/EN 60950-1)
- Environment: CE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
- Protection: IP66 (IEC 60529-2013), TVS 4000V lightning protection, surge protection and voltage transient protection
- Shutter Speed: 1/1 to 1/30,000 s
- Zoom: 4 × optical, 16 × digital
- Slow Shutter: Yes
- Focal Length: 2.8 to 12 mm
- FOV: Horizontal field of view: 93.8° to 31.7° (wide-tele)Vertical field of view: 50.9° to 17.9° (wide-tele)Diagonal field of view: 110.3° to 36.1° (wide-tele)
- Focus: Auto, semi-auto, manual
- Zoom Speed: Approx. 2.0 s
- Movement Range (Pan): 350°
- Movement Range (Tilt): 0° to 90°
- Pan Speed: Pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
- Tilt Speed: Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
- Proportional Pan: Yes
- Presets: 300
- Preset Freezing: Yes
- Patrol Scan: 8 patrols, up to 32 presets for each patrol
- Park Action: Preset, patrol scan
- 3D Positioning: Yes
- PTZ Status Display: Yes
- Scheduled Task: Preset, patrol scan, dome reboot, dome adjust, aux output
- Power-off Memory: Yes
- Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
- Audio Bit Rate: MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
- Audio Sampling Rate: MP2L2: 16kHz, 32kHz, 48kHz; PCM: 8kHz, 16kHz, 32kHz, 48kHz
- Environment Noise Filtering: Yes
- Defog: Digital defog
- Regional Focus: Yes
- Regional Exposure: Yes
- On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KO ± 10%;1 output (line out), line level, output impedance: 600 O
- Alarm: 1 input, 1 output
- RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset: Yes
- Material: ADC12, PC
- Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
