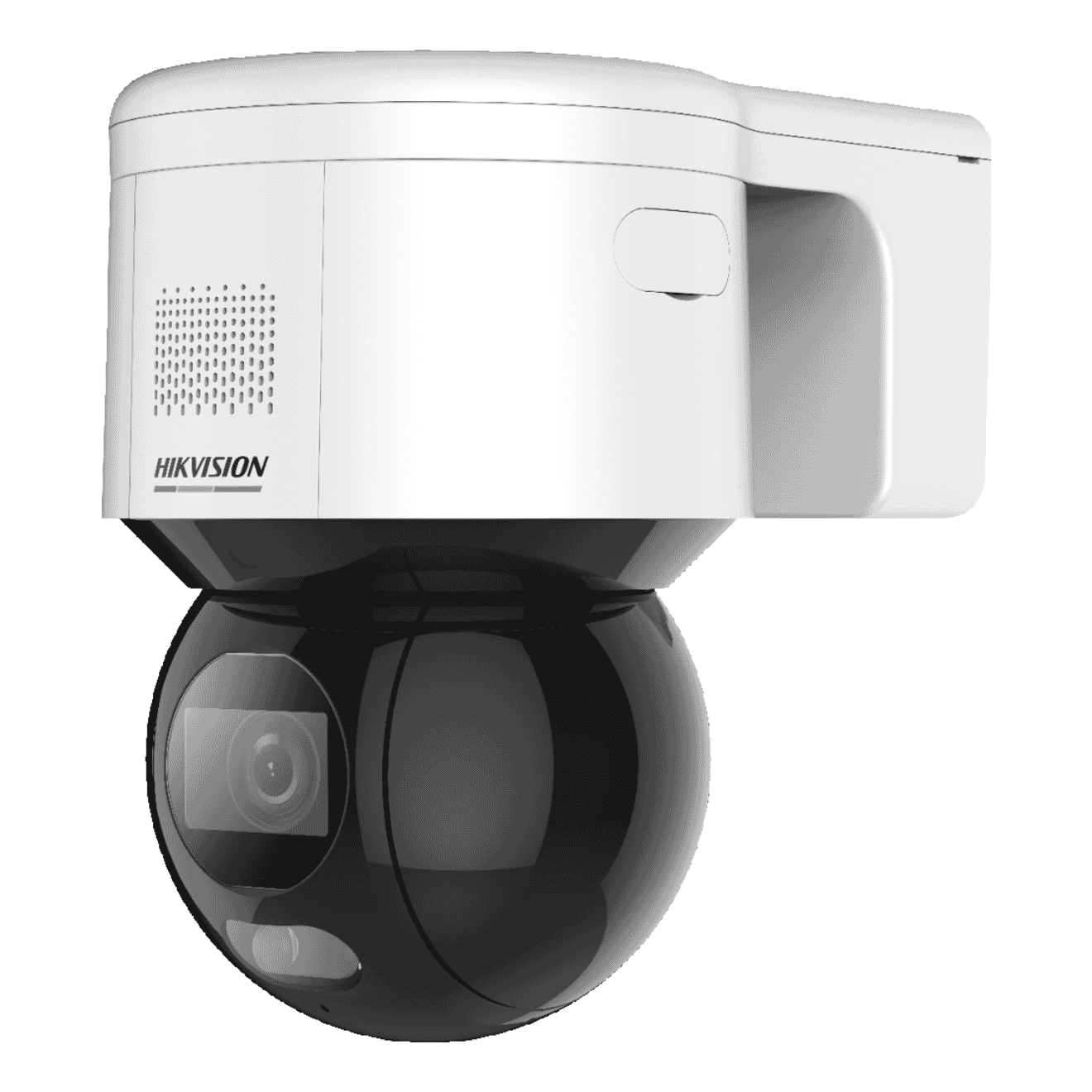

Hikvision DS-2DE3A400BW-DE(F1)(T5) 4MP Color PTZ Camera with 4x Zoom

Hikvision DS-2DE3A400BW-DE(F1)(T5) 4MP Color PTZ Camera with 4x Zoom

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2DE3A400BW-DE(F1)(T5) 4MP Color PTZ Camera with 4x Zoom
Login to View Price

Specifications

  • Image Sensor: 1/1.8" progressive scan CMOS
  • Max. Resolution: 2560 x 1440
  • Min. Illumination: Colour: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
  • Day & Night: 24/7 colourful imaging
  • Aperture: F1.0
  • Supplement Light Type: White Light
  • Supplement Light Range: White Light Distance: up to 30 m
  • Main Stream: 50 Hz: 25 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720);60 Hz: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)
  • Sub-Stream: 50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288);60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)
  • Third Stream: 50Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288);60Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264/MJPEG
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 8 fixed regions for each stream
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • Simultaneous Live View: Up to 20 channels
  • API: ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface (Profile S, Profile G, Profile T), ISUP
  • User/Host: Up to 32 users. 3 levels: Administrator, Operator and User
  • Security: Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
  • Network Storage: NAS (NFS, SMB/ CIFS)
  • Web Browser: IE 10+, Chrome 57+, Firefox 52+, Safari 12+
  • Image Parameters Switch: Yes
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Day/Night Switch: Day, night, auto, scheduled-switch
  • Wide Dynamic Range (WDR): 120 dB WDR
  • SNR: ＞52 dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: Up to 24 masks (8 masks for each scene)
  • Ethernet Interface: 1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at)
  • Basic Event: Video tampering alarm, motion detection, alarm input, alarm output, exception
  • Smart Event: Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection
  • Face Capture: Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture
  • Power: 12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 AMax. 14 W (including max. 4 W for white light)
  • Dimension: 179.3 mm x 120 mm x 182 mm (7.06" x 4.72" x 7.71")
  • Weight: Approx. 1.125 kg (2.48 lb.)
  • General Function: Mirror, password protection, watermark, IP address filter
  • Protection: IP66; 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Shutter Speed: 1/1 to 1/30,000 s
  • Zoom: 16x digital
  • Focal Length: 4 mm
  • FOV: Horizontal field of view: 88.7°Vertical field of view: 46.5°Diagonal field of view: 105.0°
  • Movement Range (Pan): 350°
  • Movement Range (Tilt): 0° to 90°
  • Pan Speed: Pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
  • Tilt Speed: Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
  • Proportional Pan: Yes
  • Presets: 300
  • Power-off Memory: Yes
  • Park Action: Preset, patrol scan
  • 3D Positioning: Yes
  • Preset Freezing: Yes
  • Scheduled Task: Preset, patrol scan, dome reboot, dome adjust, aux output
  • Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
  • Environment Noise Filtering: Yes
  • Defog: Digital defog
  • Regional Exposure: Yes
  • Built-in Speaker: 1 built-in speaker
  • Power Output: 12 VDC; < 60 mA
  • On-board Storage: Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 512 GB
  • Alarm: 1 input, 1 output
  • Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KO ± 10%; 1 output (line out), line level, output impedance: 600 O
  • RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Reset: Yes
  • Alarm Linkage: Preset, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, audible warning, white light flashing
  • Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
  • Operating Condition: Humidity: ≤ 90%, temperature: -30℃ to 65℃ (-22°F to 149°F)
  • Demist: Yes

Camera
  • Image Sensor: 1/1.8" progressive scan CMOS
  • Max. Resolution: 2560 x 1440
  • Min. Illumination: Colour: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
  • Day & Night: 24/7 colourful imaging

Lens
  • Aperture: F1.0

Illuminator
  • Supplement Light Type: White Light
  • Supplement Light Range: White Light Distance: up to 30 m

Video
  • Main Stream: 50 Hz: 25 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720);60 Hz: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)
  • Sub-Stream: 50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288);60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)
  • Third Stream: 50Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288);60Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264/MJPEG
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 8 fixed regions for each stream
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • Simultaneous Live View: Up to 20 channels
  • API: ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface (Profile S, Profile G, Profile T), ISUP
  • User/Host: Up to 32 users. 3 levels: Administrator, Operator and User
  • Security: Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
  • Network Storage: NAS (NFS, SMB/ CIFS)
  • Web Browser: IE 10+, Chrome 57+, Firefox 52+, Safari 12+

  • Image Parameters Switch: Yes
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Day/Night Switch: Day, night, auto, scheduled-switch
  • Wide Dynamic Range (WDR): 120 dB WDR
  • SNR: ＞52 dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: Up to 24 masks (8 masks for each scene)

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at)

Event
  • Basic Event: Video tampering alarm, motion detection, alarm input, alarm output, exception
  • Smart Event: Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection

Deep Learning Function
  • Face Capture: Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture

General
  • Power: 12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 AMax. 14 W (including max. 4 W for white light)
  • Dimension: 179.3 mm x 120 mm x 182 mm (7.06" x 4.72" x 7.71")
  • Weight: Approx. 1.125 kg (2.48 lb.)
  • General Function: Mirror, password protection, watermark, IP address filter

Approval
  • Protection: IP66; 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection

Other
  • Shutter Speed: 1/1 to 1/30,000 s
  • Zoom: 16x digital
  • Focal Length: 4 mm
  • FOV: Horizontal field of view: 88.7°Vertical field of view: 46.5°Diagonal field of view: 105.0°
  • Movement Range (Pan): 350°
  • Movement Range (Tilt): 0° to 90°
  • Pan Speed: Pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
  • Tilt Speed: Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
  • Proportional Pan: Yes
  • Presets: 300
  • Power-off Memory: Yes
  • Park Action: Preset, patrol scan
  • 3D Positioning: Yes
  • Preset Freezing: Yes
  • Scheduled Task: Preset, patrol scan, dome reboot, dome adjust, aux output
  • Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
  • Environment Noise Filtering: Yes
  • Defog: Digital defog
  • Regional Exposure: Yes
  • Built-in Speaker: 1 built-in speaker
  • Power Output: 12 VDC; < 60 mA
  • On-board Storage: Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 512 GB
  • Alarm: 1 input, 1 output
  • Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KO ± 10%; 1 output (line out), line level, output impedance: 600 O
  • RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Reset: Yes
  • Alarm Linkage: Preset, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, audible warning, white light flashing
  • Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
  • Operating Condition: Humidity: ≤ 90%, temperature: -30℃ to 65℃ (-22°F to 149°F)
  • Demist: Yes
