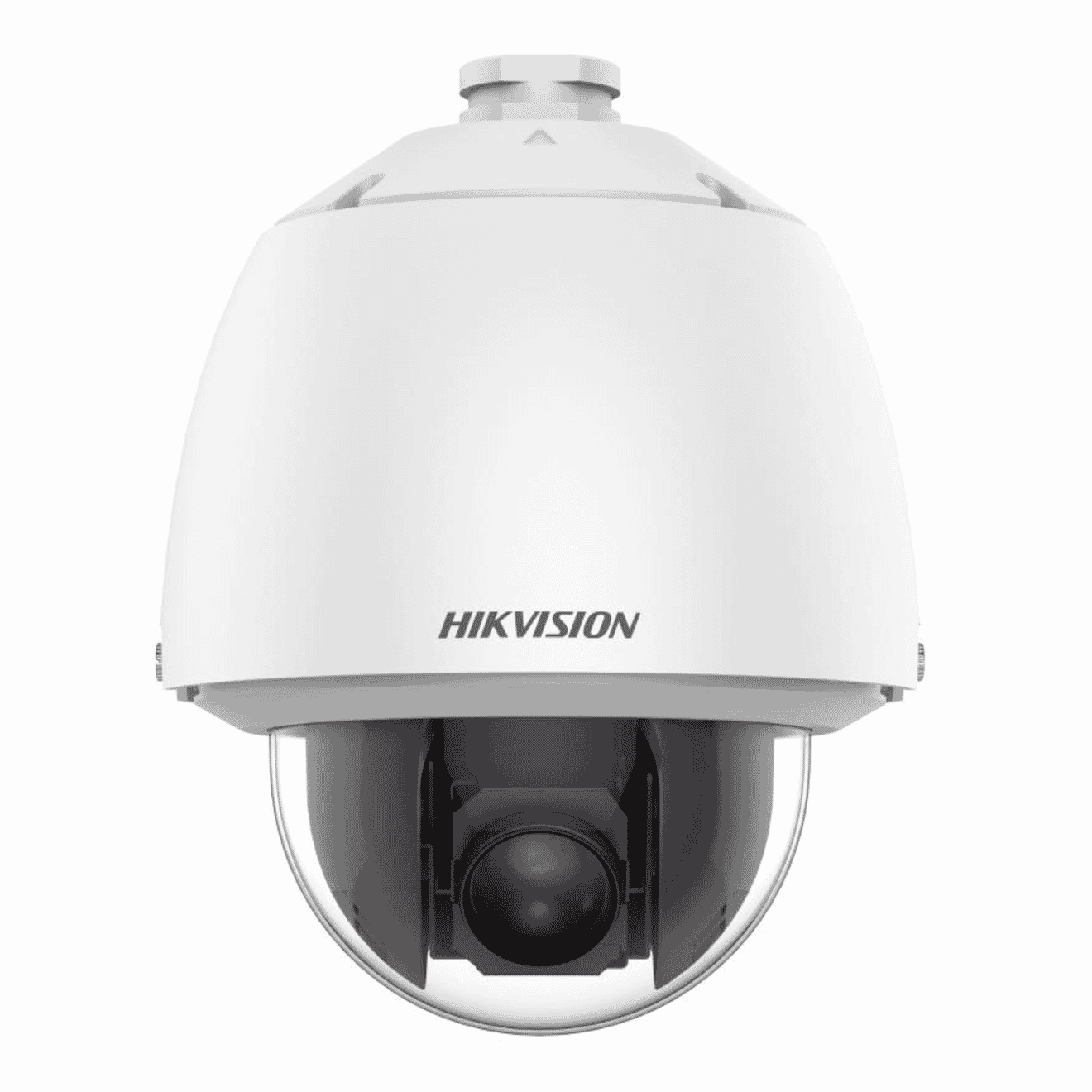

Hikvision DS-2DE5225W-AE (T5) 2MP 25× Network IR PTZ Camera
Hikvision DS-2DE5225W-AE (T5) 2MP 25× Network IR PTZ Camera
- IP CCTV
- 2MP
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-2DE5225W-AE (T5) 2MP 25× Network IR PTZ Camera
Specifications
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Max. Resolution: 1920 × 1080
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON)
- Day & Night: IR cut filter
- Aperture: Max. F1.6
- Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline profile/Main profile/High profile
- H.265 Type: Main profile
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 8 fixed regions for each stream
- Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- Simultaneous Live View: Up to 20 channels
- API: Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/Host: Up to 32 users; 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Client: iVMS-4200, HikCentral Pro, Hik-Connect
- Web Browser: IE11, Chrome57+, Firefox52+, Safari11+
- Image Parameters Switch: Yes
- Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- SNR: >52 dB
- Image Enhancement: BLC, HLC, 3D DNR
- Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable
- Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
- Basic Event: Motion detection, video tampering alarm, exception, alarm input and output
- Smart Event: line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
- Face Capture: Yes
- Power: 24 VAC, Max. 20 W; PoE (802.3at)
- Dimension: Ø 220 mm × 280 mm (Ø 8.66" × 11.02")
- Weight: Approx. 3.0 kg (6.61 lb.)
- EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
- Safety: UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IP66 (IEC 60529-2013), IK10 (IEC 62262:2002), TVS 6000V lightning protection, surge protection and voltage transient protection
- Shutter Speed: 1 s to 1/30,000 s
- Zoom: 25x optional, 16x digital
- Slow Shutter: Yes
- Focal Length: 4.8 mm to 120 mm
- FOV: Horizontal field of view: 57.6° to 2.5° (wide-tele),Vertical field of view: 34.4° to 1.4° (wide-tele),Diagonal field of view: 64.5° to 2.9° (wide-tele)
- Focus: Auto, semi-auto, manual
- Zoom Speed: Approx. 3.6 s
- Movement Range (Pan): 360°
- Movement Range (Tilt): -5° to 90° (auto flip)
- Pan Speed: Pan speed: configurable from 0.1° to 250°/s; preset speed: 300°/s
- Tilt Speed: Tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s
- Proportional Pan: Yes
- Presets: 300
- Preset Freezing: yes
- Patrol Scan: 8 patrols, up to 32 presets for each patrol
- Pattern Scan: 4 pattern scans
- Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D Positioning: yes
- PTZ Status Display: yes
- Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Power-off Memory: yes
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering: yes
- Defog: Digital Defog
- Regional Focus: Yes
- Regional Exposure: Yes
- On-board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
- Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KO ± 10%;1 output (line out), line level, output impedance: 600 O
- Alarm: 2 inputs, 1 output
- Reset: Yes
- Material: Metal
- Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
