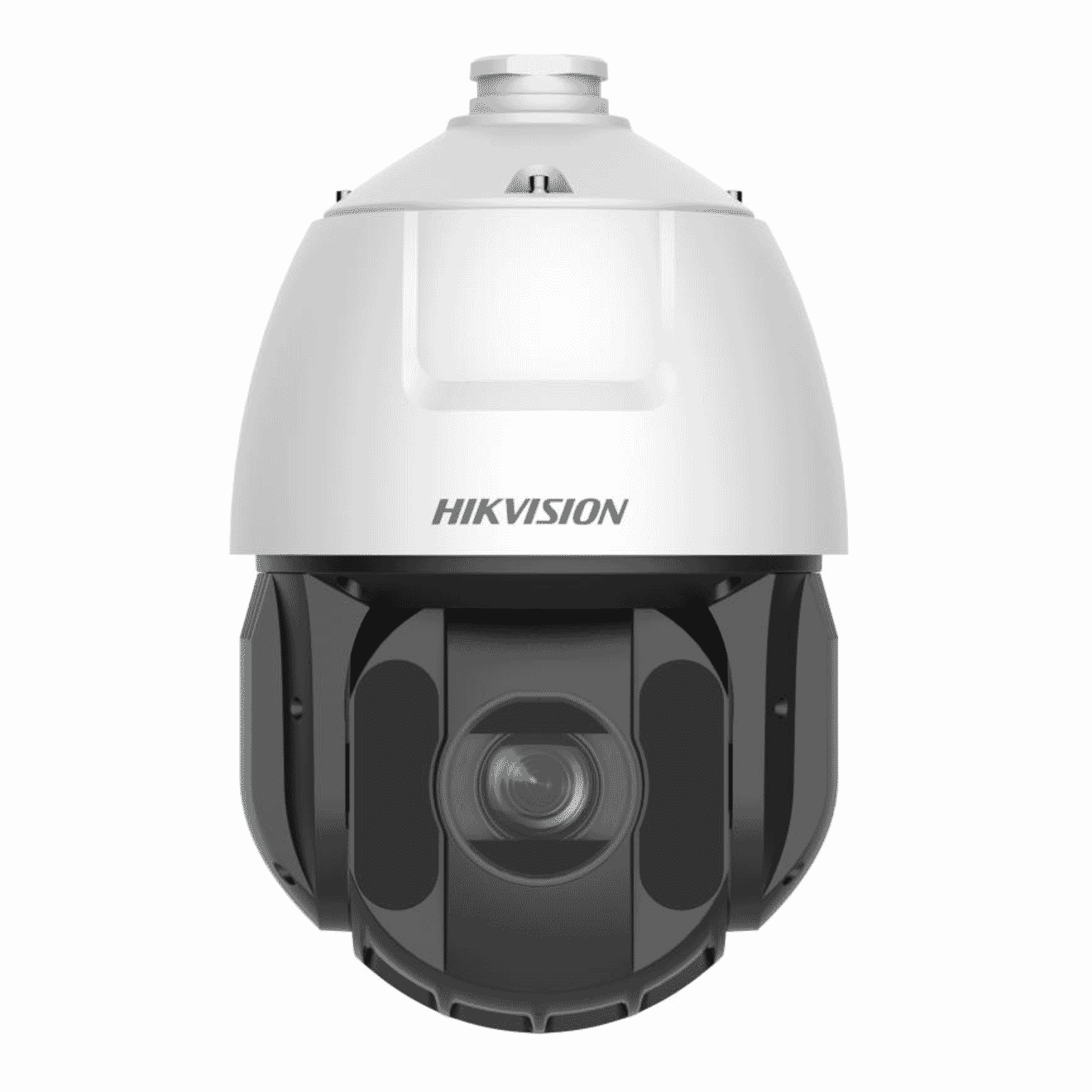

Hikvision DS-2DE5425IWG-4G 4MP PTZ IP Camera 25× Zoom 4G CCTV Security

Hikvision DS-2DE5425IWG-4G 4MP PTZ IP Camera 25× Zoom 4G CCTV Security

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2DE5425IWG-4G 4MP PTZ IP Camera 25× Zoom 4G CCTV Security
Login to View Price

Specifications

  • Image Sensor: 1/2.8" progressive scan CMOS
  • Max. Resolution: 2560 × 1440
  • Min. Illumination: color: 0.05Lux @ (F1.6,AGC ON)||B/W: 0.01Lux @(F1.6,AGC ON)||0 Lux with IR
  • Day & Night: IR cut filter
  • Aperture: F1.6
  • Supplement Light Type: IR
  • Supplement Light Range: IR distance: up to 150 m
  • Main Stream: 50 Hz:25 fps(2560 × 1440,1920 × 1080,1280 × 960,1280 × 720)60 Hz:30 fps(2560 × 1440,1920 × 1080,1280 × 960,1280 × 720)
  • Sub-Stream: 50 Hz:25 fps(704 × 576,640 × 480,352 × 288)60 Hz:30 fps(704 × 480,640 × 480,352 × 240)
  • Third Stream: 50 Hz:25 fps(1920 × 1080,1280 × 960,1280 × 720,704 × 576,640 × 480,352 × 288)60 Hz:30 fps(1920 × 1080,1280 × 960,1280 × 720,704 × 480,640 × 480,352 × 240)
  • Video Compression: H.265||H.264||MJPEG
  • H.264 Type: Baseline Profile||Main Profile||High Profile
  • H.265 Type: Main Profile
  • Scalable Video Coding (SVC): yes
  • Region of Interest (ROI): fixed region
  • Protocols: IPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||Bonjour||WebSocket||WebSockets
  • API: Open-ended API|| ISAPI||Hikvision SDK||Third-party management platform||Hik-Connect||ISUP||Open Network Video Interface
  • User/Host: 32
  • Security: Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
  • Network Storage: NAS (NFS, SMB/ CIFS)
  • Client: iVMS-4200
  • Web Browser: Chrome 57+?Firefox 52+?Safari 12+||IE10-11
  • Image Parameters Switch: yes
  • Image Settings: saturation||brightness||contrast||sharpness
  • Day/Night Switch: day||night||auto||scheduled-switch
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: >52dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: up to 24 masks||mask color configurable
  • Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port
  • Basic Event: motion detection||alarm input||alarm output||video tampering alarm||exception
  • Smart Event: face detection||intrusion detection||line crossing detection||region entrance detection||region exiting detection||unattended baggage detection||object removal detection||audio exception detection
  • Linkage: preset||patrol scan||pattern scan||alarm output||sending email||notify surveillance center|| upload to FTP||NAS video recording
  • Power: 12 VDC
  • Dimension: Ø208 mm × 344.8 mm
  • Weight: Approx. 3.5 kg (7.7 lb.)
  • Protection: IP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Shutter Speed: 1 s~1/30,000 s
  • Zoom: 25 × optical,16 × digital
  • Slow Shutter: yes
  • Focal Length: 4.8 mm~120 mm
  • FOV: Horizontal field of view: 55° to 2.4° (wide-tele),Vertical field of view: 33° to 1.4° (wide-tele),Diagonal field of view: 61.5° to 2.8° (wide-tele)
  • Focus: semi-auto||manual||auto
  • Zoom Speed: approx.3.6s
  • Movement Range (Pan): 360°
  • Movement Range (Tilt): -15° to 90° (auto flip)
  • Pan Speed: pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
  • Tilt Speed: tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
  • Proportional Pan: yes
  • Presets: 300
  • Preset Freezing: yes
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans
  • Park Action: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
  • 3D Positioning: yes
  • PTZ Status Display: yes
  • Scheduled Task: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
  • Power-off Memory: yes
  • Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC-LC
  • Audio Sampling Rate: MP2L2: 16 kHz, 32 kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32 kHz,48kHz,MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz,AAC-LC: 16 kHz, 32 kHz, 48 kHz
  • Environment Noise Filtering: yes
  • Wireless Range: Up to 20 m(The performance varies based on actual environment)
  • Frequency: LTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE
  • Standard: LTE FDD:Band 1,3,5,7,8,20,28 LTE TDD:Band 38,40,41 WCDMA/HSPA+:Band 1,5,8 GSM/GPRS/EDGE:850/900/1800MH
  • Defog: yes
  • Regional Focus: yes
  • Regional Exposure: yes
  • On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Audio: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 O
  • Alarm: 2 alarm inputs
  • Reset: yes
  • Power Output: 12 VDC, max. 1000 mA
  • Material: Metal
  • Operating Condition: -30? to 65? (-22°F to 149°F)
  • Demist: yes
  • Power Consumption and Current: Max. 20 W (including max. 7 W for IR and max. 1.6 W for heater);

Camera
  • Image Sensor: 1/2.8" progressive scan CMOS
  • Max. Resolution: 2560 × 1440
  • Min. Illumination: color: 0.05Lux @ (F1.6,AGC ON)||B/W: 0.01Lux @(F1.6,AGC ON)||0 Lux with IR
  • Day & Night: IR cut filter

Lens
  • Aperture: F1.6

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: IR distance: up to 150 m

Video
  • Main Stream: 50 Hz:25 fps(2560 × 1440,1920 × 1080,1280 × 960,1280 × 720)60 Hz:30 fps(2560 × 1440,1920 × 1080,1280 × 960,1280 × 720)
  • Sub-Stream: 50 Hz:25 fps(704 × 576,640 × 480,352 × 288)60 Hz:30 fps(704 × 480,640 × 480,352 × 240)
  • Third Stream: 50 Hz:25 fps(1920 × 1080,1280 × 960,1280 × 720,704 × 576,640 × 480,352 × 288)60 Hz:30 fps(1920 × 1080,1280 × 960,1280 × 720,704 × 480,640 × 480,352 × 240)
  • Video Compression: H.265||H.264||MJPEG
  • H.264 Type: Baseline Profile||Main Profile||High Profile
  • H.265 Type: Main Profile
  • Scalable Video Coding (SVC): yes
  • Region of Interest (ROI): fixed region
  • Protocols: IPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||Bonjour||WebSocket||WebSockets
  • API: Open-ended API|| ISAPI||Hikvision SDK||Third-party management platform||Hik-Connect||ISUP||Open Network Video Interface
  • User/Host: 32
  • Security: Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
  • Network Storage: NAS (NFS, SMB/ CIFS)
  • Client: iVMS-4200
  • Web Browser: Chrome 57+?Firefox 52+?Safari 12+||IE10-11

  • Image Parameters Switch: yes
  • Image Settings: saturation||brightness||contrast||sharpness
  • Day/Night Switch: day||night||auto||scheduled-switch
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: >52dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: up to 24 masks||mask color configurable

Interface
  • Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port

Event
  • Basic Event: motion detection||alarm input||alarm output||video tampering alarm||exception
  • Smart Event: face detection||intrusion detection||line crossing detection||region entrance detection||region exiting detection||unattended baggage detection||object removal detection||audio exception detection
  • Linkage: preset||patrol scan||pattern scan||alarm output||sending email||notify surveillance center|| upload to FTP||NAS video recording

General
  • Power: 12 VDC
  • Dimension: Ø208 mm × 344.8 mm
  • Weight: Approx. 3.5 kg (7.7 lb.)

Approval
  • Protection: IP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Other
  • Shutter Speed: 1 s~1/30,000 s
  • Zoom: 25 × optical,16 × digital
  • Slow Shutter: yes
  • Focal Length: 4.8 mm~120 mm
  • FOV: Horizontal field of view: 55° to 2.4° (wide-tele),Vertical field of view: 33° to 1.4° (wide-tele),Diagonal field of view: 61.5° to 2.8° (wide-tele)
  • Focus: semi-auto||manual||auto
  • Zoom Speed: approx.3.6s
  • Movement Range (Pan): 360°
  • Movement Range (Tilt): -15° to 90° (auto flip)
  • Pan Speed: pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
  • Tilt Speed: tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
  • Proportional Pan: yes
  • Presets: 300
  • Preset Freezing: yes
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans
  • Park Action: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
  • 3D Positioning: yes
  • PTZ Status Display: yes
  • Scheduled Task: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
  • Power-off Memory: yes
  • Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC-LC
  • Audio Sampling Rate: MP2L2: 16 kHz, 32 kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32 kHz,48kHz,MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz,AAC-LC: 16 kHz, 32 kHz, 48 kHz
  • Environment Noise Filtering: yes
  • Wireless Range: Up to 20 m(The performance varies based on actual environment)
  • Frequency: LTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE
  • Standard: LTE FDD:Band 1,3,5,7,8,20,28 LTE TDD:Band 38,40,41 WCDMA/HSPA+:Band 1,5,8 GSM/GPRS/EDGE:850/900/1800MH
  • Defog: yes
  • Regional Focus: yes
  • Regional Exposure: yes
  • On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Audio: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 O
  • Alarm: 2 alarm inputs
  • Reset: yes
  • Power Output: 12 VDC, max. 1000 mA
  • Material: Metal
  • Operating Condition: -30? to 65? (-22°F to 149°F)
  • Demist: yes
  • Power Consumption and Current: Max. 20 W (including max. 7 W for IR and max. 1.6 W for heater);
