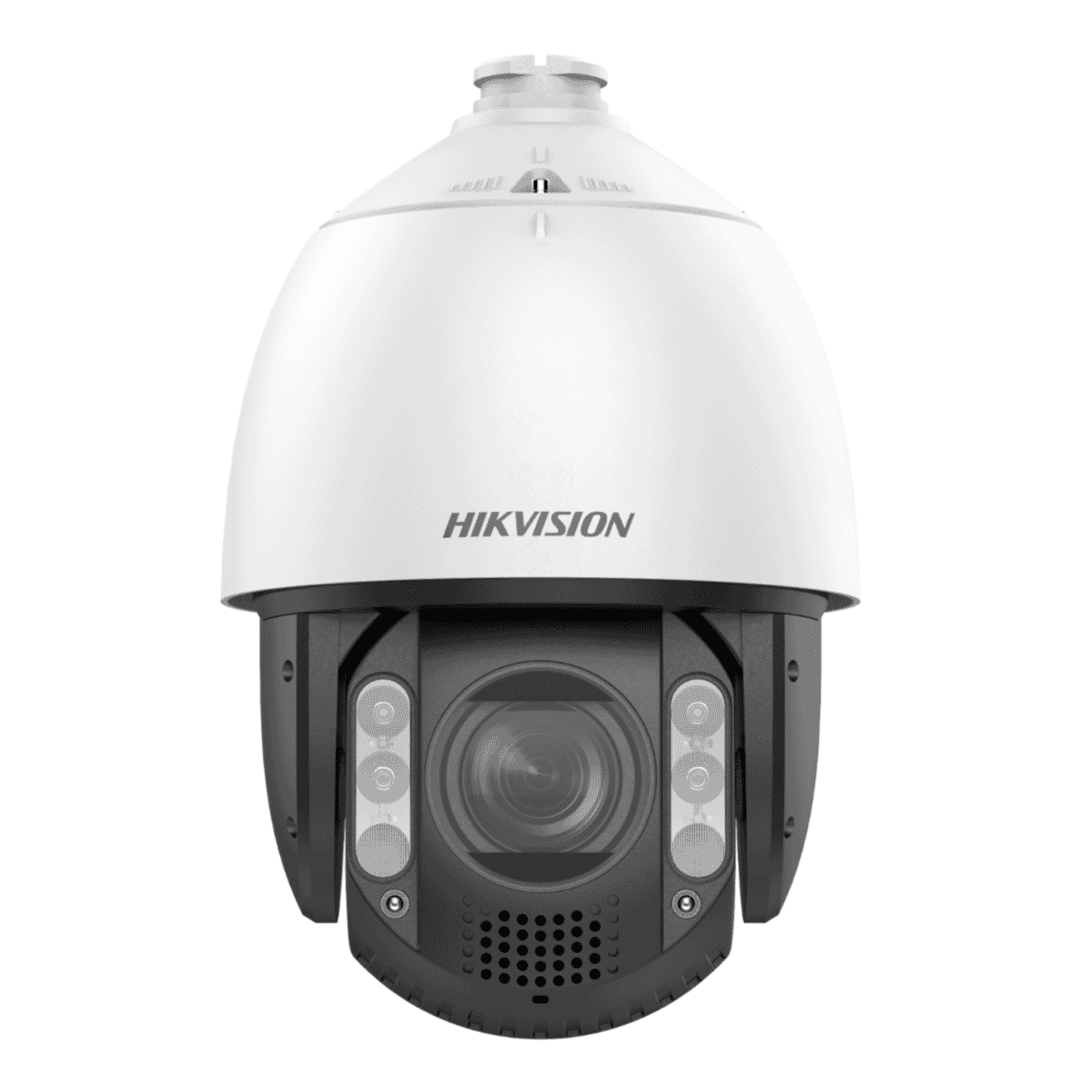

Hikvision DS-2DE7A412MCG-EB 4MP PTZ Camera with 12x Zoom

Hikvision DS-2DE7A412MCG-EB 4MP PTZ Camera with 12x Zoom

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2DE7A412MCG-EB 4MP PTZ Camera with 12x Zoom
Login to View Price

Specifications

  • Image Sensor: 1/1.8" Progressive Scan CMOS
  • Max. Resolution: 2560 x 1440
  • Min. Illumination: Color: 0.0005Lux @ (F1.2, AGC ON), B/W:0.0001Lux @ (F1.2, AGC ON), 0 lux with light
  • Day & Night: IR cut filter
  • Aperture: Max. F1.2
  • Supplement Light Type: Hybrid (IR and White Light)
  • Supplement Light Range: White light: up to 100 mIR: up to 150 m
  • Main Stream: 50 Hz：25 fps（2560 x 1440:1920 x 1080:1280 x 960:1280 x 720）60 Hz：30 fps（2560 x 1440:1920 x 1080:1280 x 960:1280 x 720）
  • Sub-Stream: 50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288)60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)
  • Third Stream: 50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288);60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 kbps to 16384 kbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 8 fixed regions for each stream
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
  • Simultaneous Live View: Up to 20 channels
  • API: Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users, 3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, HikCentral Pro, Hik-Connect
  • Web Browser: IE11, Chrome 57+, Firefox 52+, Safari 11+
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: > 52 dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable
  • Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
  • Basic Event: Motion detection, video tampering alarm, exception, alarm input and output
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
  • Face Capture: Detects up to 5 faces simultaneously.Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
  • Power: 24 VAC, max. 42 W (including max. 12 W for IR and max. 2 W for heater);Hi-PoE
  • Dimension: Ø 220 mm x 357.3 mm (Ø8.66" x 14.07")
  • Weight: Approx. 5.5 kg (12.13 lb.)
  • EMC: FCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC VoC (ICES-003: Issue 6, 2019);KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 62368-1);CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);CE-LVD (EN 62368-1:2014+A11:2017);BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);LOA (SANS IEC60950-1)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
  • Protection: IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection
  • Shutter Speed: 1/1 s to 1/30000 s
  • Slow Shutter: Yes
  • Zoom: 12 x optical, 16 x digital
  • Focal Length: 6.7 mm to 80.4 mm
  • Zoom Speed: Approx. 5.8 s
  • FOV: Horizontal field of view: 51.5° to 7.9° (wide-tele),Vertical field of view: 30.3° to 4.4° (wide-tele),Diagonal field of view: 57.9° to 9.0° (wide-tele)
  • Focus: Auto, semi-auto, manual
  • Movement Range (Pan): 360°
  • Movement Range (Tilt): -15° to 90° (auto flip)
  • Pan Speed: Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
  • Tilt Speed: Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
  • Proportional Pan: Yes
  • Presets: 300
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans
  • Power-off Memory: Yes
  • Park Action: Preset, patrol scan, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
  • 3D Positioning: Yes
  • PTZ Status Display: Yes
  • Preset Freezing: Yes
  • Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
  • Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM, AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Defog: Digital defog
  • Image Stabilization: EIS
  • Regional Exposure: Yes
  • Regional Focus: Yes
  • On-board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Alarm: 2 inputs, 1 output
  • Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
  • Reset: Yes
  • Built-in Speaker: 1 built-in speaker with effective distance reaching max. 30 meters
  • Smart Tracking: Manual tracking, auto-tracking
  • Alarm Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
  • Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
  • Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
  • Demist: Yes
  • Material: ADC12

Camera
  • Image Sensor: 1/1.8" Progressive Scan CMOS
  • Max. Resolution: 2560 x 1440
  • Min. Illumination: Color: 0.0005Lux @ (F1.2, AGC ON), B/W:0.0001Lux @ (F1.2, AGC ON), 0 lux with light
  • Day & Night: IR cut filter

Lens
  • Aperture: Max. F1.2

Illuminator
  • Supplement Light Type: Hybrid (IR and White Light)
  • Supplement Light Range: White light: up to 100 mIR: up to 150 m

Video
  • Main Stream: 50 Hz：25 fps（2560 x 1440:1920 x 1080:1280 x 960:1280 x 720）60 Hz：30 fps（2560 x 1440:1920 x 1080:1280 x 960:1280 x 720）
  • Sub-Stream: 50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288)60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)
  • Third Stream: 50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288);60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 kbps to 16384 kbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 8 fixed regions for each stream
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
  • Simultaneous Live View: Up to 20 channels
  • API: Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users, 3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, HikCentral Pro, Hik-Connect
  • Web Browser: IE11, Chrome 57+, Firefox 52+, Safari 11+

  • Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: > 52 dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable

Interface
  • Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Event
  • Basic Event: Motion detection, video tampering alarm, exception, alarm input and output
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection

Deep Learning Function
  • Face Capture: Detects up to 5 faces simultaneously.Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face

General
  • Power: 24 VAC, max. 42 W (including max. 12 W for IR and max. 2 W for heater);Hi-PoE
  • Dimension: Ø 220 mm x 357.3 mm (Ø8.66" x 14.07")
  • Weight: Approx. 5.5 kg (12.13 lb.)

Approval
  • EMC: FCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC VoC (ICES-003: Issue 6, 2019);KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 62368-1);CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);CE-LVD (EN 62368-1:2014+A11:2017);BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);LOA (SANS IEC60950-1)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
  • Protection: IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection

Other
  • Shutter Speed: 1/1 s to 1/30000 s
  • Slow Shutter: Yes
  • Zoom: 12 x optical, 16 x digital
  • Focal Length: 6.7 mm to 80.4 mm
  • Zoom Speed: Approx. 5.8 s
  • FOV: Horizontal field of view: 51.5° to 7.9° (wide-tele),Vertical field of view: 30.3° to 4.4° (wide-tele),Diagonal field of view: 57.9° to 9.0° (wide-tele)
  • Focus: Auto, semi-auto, manual
  • Movement Range (Pan): 360°
  • Movement Range (Tilt): -15° to 90° (auto flip)
  • Pan Speed: Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
  • Tilt Speed: Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
  • Proportional Pan: Yes
  • Presets: 300
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans
  • Power-off Memory: Yes
  • Park Action: Preset, patrol scan, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
  • 3D Positioning: Yes
  • PTZ Status Display: Yes
  • Preset Freezing: Yes
  • Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
  • Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM, AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Defog: Digital defog
  • Image Stabilization: EIS
  • Regional Exposure: Yes
  • Regional Focus: Yes
  • On-board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Alarm: 2 inputs, 1 output
  • Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
  • Reset: Yes
  • Built-in Speaker: 1 built-in speaker with effective distance reaching max. 30 meters
  • Smart Tracking: Manual tracking, auto-tracking
  • Alarm Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
  • Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
  • Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
  • Demist: Yes
  • Material: ADC12
