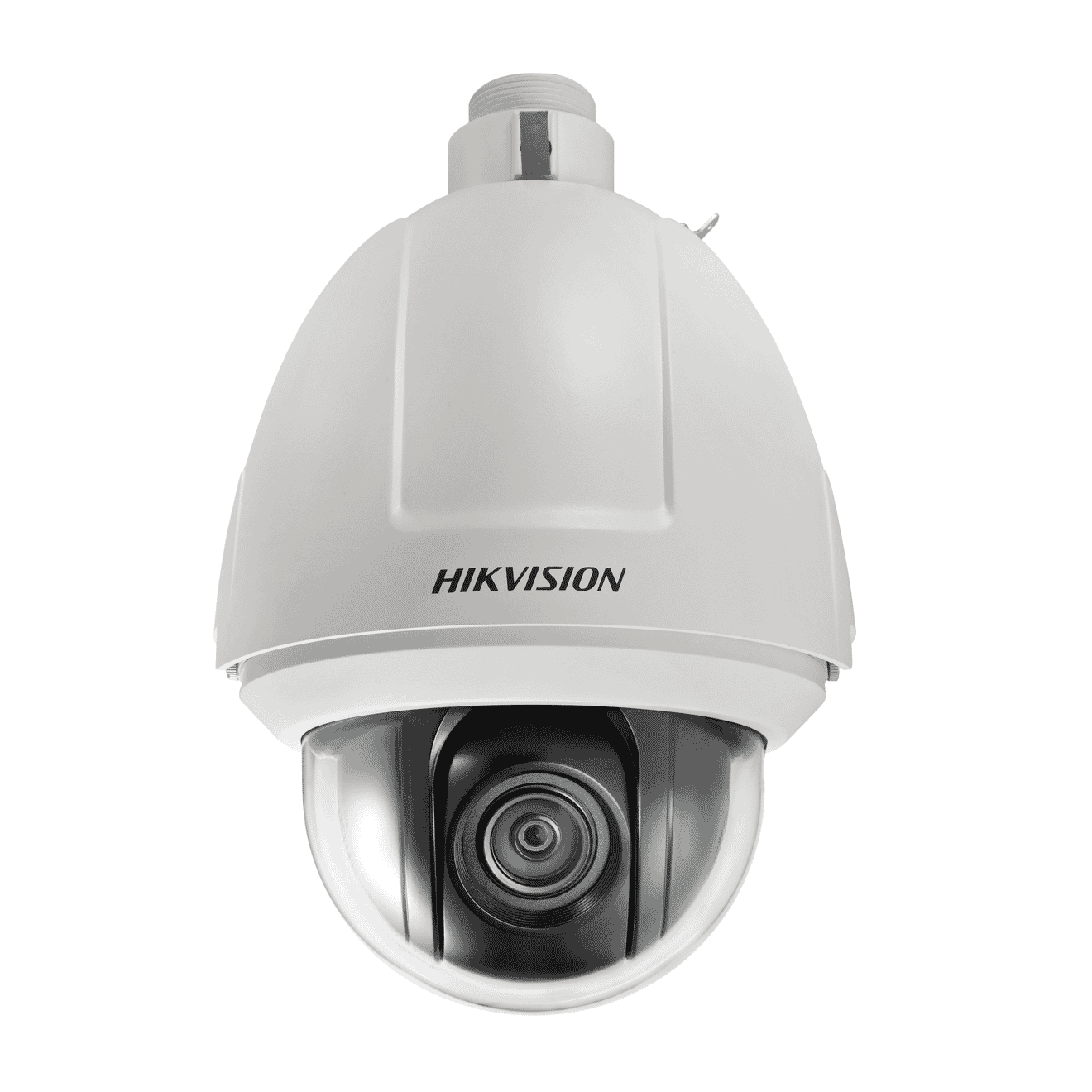

Hikvision DS-2DF5225X-AEL (T5) 2MP 25× Network IR PTZ Camera Outdoor
Specifications
- Image Sensor: 1/2.8" progressive scan CMOS
- Max. Resolution: 1920 × 1080
- Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON)
- Day & Night: IR cut filter
- Aperture: Max. F1.2
- Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264/MJPEG
- H.264 Type: Baseline profile, main profile, high profile
- H.265 Type: Main profile
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 8 fixed regions for each stream
- Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- Simultaneous Live View: Up to 20 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication, watermark, IP address filter, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Client: iVMS-4200, HikCentral, Hik-Connect
- Web Browser: IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+
- Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Wide Dynamic Range (WDR): 120 dB
- Image Enhancement: BLC, HLC, 3D DNR
- Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable
- Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
- Basic Event: Motion detection, video tampering alarm, exception, alarm input and output
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
- Face Capture: Detects up to 30 faces simultaneously.Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture
- Power: 24 V, 3.0 A, 50/60Hz, AC (Max. 60 W, including max. 40 W for heater), Hi-PoE, 42.5 to 57 V, 1.41 A (Max. 40 W, including max. 20 W for heater)
- Dimension: Ø 220 mm × 302 mm (Ø 8.66" × 11.89")
- Weight: Approx. 4 kg (8.82 lb.)
- Language: 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- EMC: FCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC VoC (ICES-003: Issue 6, 2019);KC (KN 32: 2015, KN 35: 2015)
- Safety: UL (UL 62368-1)CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);CE-LVD (EN 62368-1:2014+A11:2017),BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);LOA (SANS IEC60950-1)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
- Protection: IP66 (IEC 60529-2013), IK10 (IEC 62262:2002), Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5
- Shutter Speed: 1 to 1/30,000 s
- Zoom: 25 × optical, 16 × digital
- Focal Length: 4.8 mm to 120 mm
- FOV: Horizontal field of view: 58.4° to 2.7° (wide-tele)Vertical field of view: 33.8° to 1.5° (wide-tele)Diagonal field of view: 65.6° to 3.1° (wide-tele)
- Focus: Auto, semi-auto, manual
- Zoom Speed: Approx. 4.8 s
- Movement Range (Pan): 360°
- Movement Range (Tilt): -5° to 90° (auto flip)
- Pan Speed: Pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
- Tilt Speed: Tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
- Proportional Pan: Yes
- Presets: 300
- Preset Freezing: Yes
- Patrol Scan: 8 patrols
- Pattern Scan: 4 pattern scans
- Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D Positioning: Yes
- PTZ Status Display: Yes
- Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Power-off Memory: Yes
- Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
- Defog: Optical defog
- Image Stabilization: EIS
- Regional Focus: Yes
- Regional Exposure: Yes
- On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KO ± 10%; 1 output (line out), line level, output impedance: 600 O
- Alarm: 7 inputs, 2 outputs
- RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Smart Tracking: Manual tracking, auto-tracking
- Road Traffic: Supports vehicle detection
- Operating Condition: -40°C to 70°C (-40°F to 158°F),Humidity 95% or less (non-condensing)
