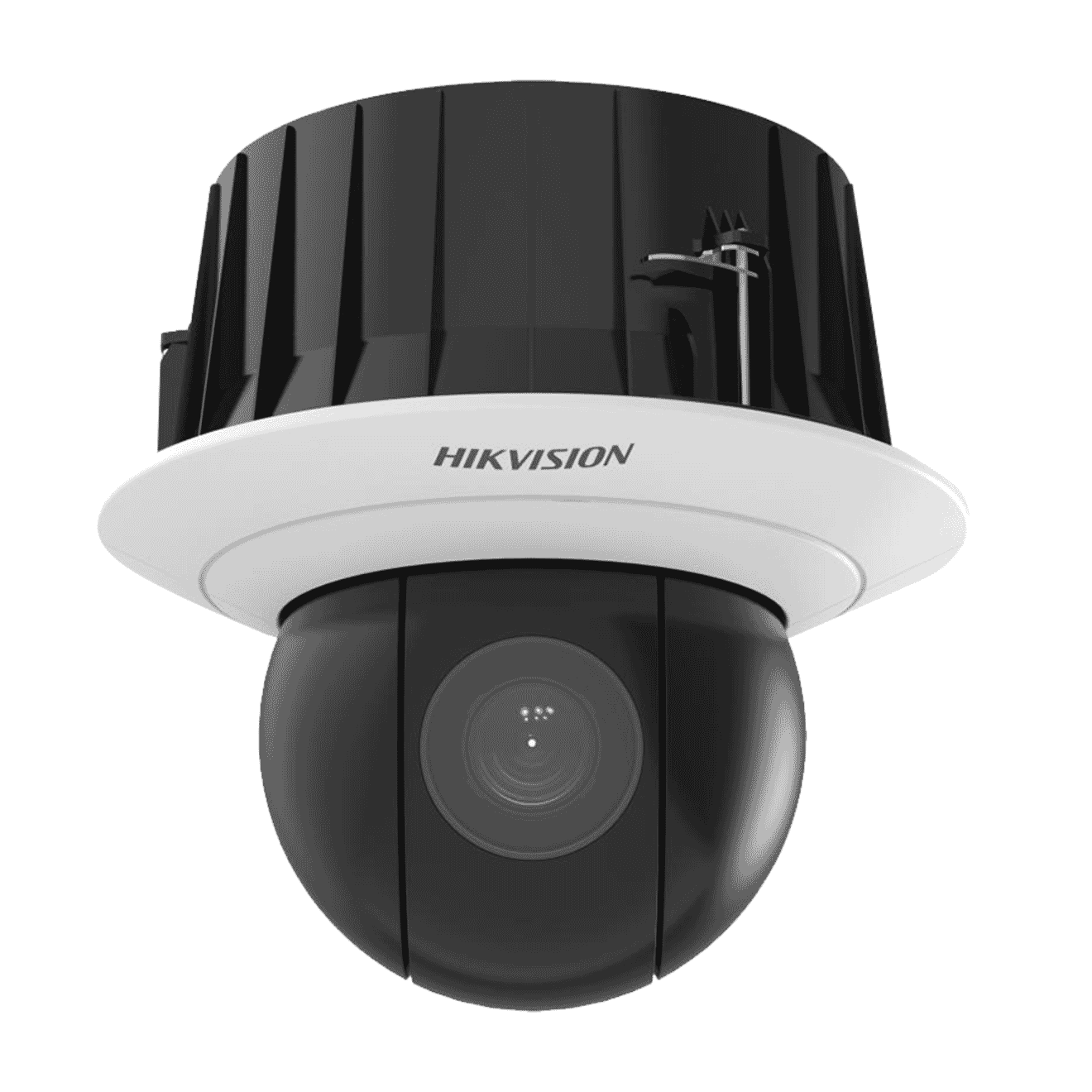

Hikvision DS-2DF6A832X-DE3(T5) 4K 32x Darkfighter IP PTZ Camera

Hikvision DS-2DF6A832X-DE3(T5) 4K 32x Darkfighter IP PTZ Camera

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 8MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2DF6A832X-DE3(T5) 4K 32x Darkfighter IP PTZ Camera
Login to View Price

Specifications

  • Image Sensor: 1/1.8＂ progressive scan CMOS
  • Max. Resolution: 3840 x 2160
  • Min. Illumination: colour: 0.002Lux @ (F1.5:AGC ON)||B/W: 0.0002Lux @(F1.5:AGC ON)
  • Day & Night: ICR
  • Aperture: F1.5
  • DORI: Detect (25px/m): 2690 mObserve (63px/m): 1067 mRecognize (125px/m): 538 mIdentify (250px/m): 269 m
  • Main Stream: 50Hz: 25fps (3840 x 2160, 2560 x 1440, 1920x1080, 1280 x 960, 1280x720)60Hz: 24fps (3840 x 2160,2560 x 1440, 1920x1080, 1280 x 960, 1280x720)
  • Sub-Stream: 50Hz: 25fps (704 x 576, 640 x 480, 352 x 288)60Hz: 24fps (704 x 480, 640 x 480, 352 x 240)
  • Third Stream: 50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288),60Hz: 24fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
  • Video Compression: H.265||H.264||MJPEG
  • H.264 Type: baseline profile||main profile||high profile
  • H.265 Type: main profile
  • Scalable Video Coding (SVC): yes
  • Client: iVMS-4200||Hik-Connect||Hikcentral
  • Web Browser: IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
  • Wide Dynamic Range (WDR): 140 dB WDR
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: up to 24 masks||polygon region ||mosaic mask ||mask colour configurable
  • Ethernet Interface: 1 RJ45 10 M/100 M Ethernet Interface; Hi-PoE
  • Basic Event: motion detection||video tampering alarm||alarm input and output
  • Smart Event: unattended baggage detection||object removal detection||Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection
  • Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
  • Face Capture: yes
  • Power: 12 VDC, PoE
  • Dimension: Ø 290 mm x 274.8 mm (Ø 11.42" x 10.82")
  • Weight: Approx. 3.8 kg (8.38 lb.)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: mirror, password protection, watermark, IP address filter
  • EMC: FCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC VoC (ICES-003: Issue 6, 2019);
  • Safety: UL (UL 60950-1);CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);CE-LVD (EN 60950-1:2006+A2:2013, IEC 62368-1:2014+A11:2017);LOA (SANS IEC60950-1)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
  • Protection: Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5
  • Shutter Speed: 1/1 s to 1/30,000 s
  • Zoom: 16x digital
  • HLC: yes
  • 3D DNR: yes
  • Optical Zoom: 32x
  • Focal Length: 6.7 mm to 214.4 mm, 32x optical
  • FOV: Horizontal field of view: 56.6° to 2.0° (wide-tele),Vertical field of view: 33.7° to 1.2° (wide-tele),Diagonal field of view: 63.4° to 2.3° (wide-tele)
  • Focus: Auto, semi-auto, manual, rapid focus
  • Zoom Speed: approx. 4.5 s
  • Movement Range (Pan): 360°
  • Movement Range (Tilt): -20° to 90° (auto flip)
  • Pan Speed: pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
  • Tilt Speed: tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
  • Proportional Pan: yes
  • Presets: 300
  • Preset Freezing: yes
  • Patrol Scan: 8 patrols
  • Pattern Scan: 4 pattern scans
  • Park Action: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
  • 3D Positioning: yes
  • PTZ Status Display: yes
  • Scheduled Task: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
  • Power-off Memory: yes
  • Audio Compression: G.711alaw||G.711ulaw||G.722.1||G.726||MP2L2||PCM
  • Regional Focus: yes
  • Regional Exposure: yes
  • On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
  • Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KO ± 10%,1 output (line out), line level, output impedance: 600 O
  • Alarm: 7 alarm inputs, 2 alarm outputs
  • RS-485: HIKVISION, Pelco-P, Pelco-D, self-adaptive
  • Smart Tracking: manual tracking||event tracking
  • Operating Condition: -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)

Camera
  • Image Sensor: 1/1.8＂ progressive scan CMOS
  • Max. Resolution: 3840 x 2160
  • Min. Illumination: colour: 0.002Lux @ (F1.5:AGC ON)||B/W: 0.0002Lux @(F1.5:AGC ON)
  • Day & Night: ICR

Lens
  • Aperture: F1.5

DORI
  • DORI: Detect (25px/m): 2690 mObserve (63px/m): 1067 mRecognize (125px/m): 538 mIdentify (250px/m): 269 m

Video
  • Main Stream: 50Hz: 25fps (3840 x 2160, 2560 x 1440, 1920x1080, 1280 x 960, 1280x720)60Hz: 24fps (3840 x 2160,2560 x 1440, 1920x1080, 1280 x 960, 1280x720)
  • Sub-Stream: 50Hz: 25fps (704 x 576, 640 x 480, 352 x 288)60Hz: 24fps (704 x 480, 640 x 480, 352 x 240)
  • Third Stream: 50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288),60Hz: 24fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
  • Video Compression: H.265||H.264||MJPEG
  • H.264 Type: baseline profile||main profile||high profile
  • H.265 Type: main profile
  • Scalable Video Coding (SVC): yes
  • Client: iVMS-4200||Hik-Connect||Hikcentral
  • Web Browser: IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

  • Wide Dynamic Range (WDR): 140 dB WDR
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: up to 24 masks||polygon region ||mosaic mask ||mask colour configurable

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M Ethernet Interface; Hi-PoE

Event
  • Basic Event: motion detection||video tampering alarm||alarm input and output
  • Smart Event: unattended baggage detection||object removal detection||Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection
  • Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Deep Learning Function
  • Face Capture: yes

General
  • Power: 12 VDC, PoE
  • Dimension: Ø 290 mm x 274.8 mm (Ø 11.42" x 10.82")
  • Weight: Approx. 3.8 kg (8.38 lb.)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: mirror, password protection, watermark, IP address filter

Approval
  • EMC: FCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC VoC (ICES-003: Issue 6, 2019);
  • Safety: UL (UL 60950-1);CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);CE-LVD (EN 60950-1:2006+A2:2013, IEC 62368-1:2014+A11:2017);LOA (SANS IEC60950-1)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
  • Protection: Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5

Other
  • Shutter Speed: 1/1 s to 1/30,000 s
  • Zoom: 16x digital
  • HLC: yes
  • 3D DNR: yes
  • Optical Zoom: 32x
  • Focal Length: 6.7 mm to 214.4 mm, 32x optical
  • FOV: Horizontal field of view: 56.6° to 2.0° (wide-tele),Vertical field of view: 33.7° to 1.2° (wide-tele),Diagonal field of view: 63.4° to 2.3° (wide-tele)
  • Focus: Auto, semi-auto, manual, rapid focus
  • Zoom Speed: approx. 4.5 s
  • Movement Range (Pan): 360°
  • Movement Range (Tilt): -20° to 90° (auto flip)
  • Pan Speed: pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
  • Tilt Speed: tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
  • Proportional Pan: yes
  • Presets: 300
  • Preset Freezing: yes
  • Patrol Scan: 8 patrols
  • Pattern Scan: 4 pattern scans
  • Park Action: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
  • 3D Positioning: yes
  • PTZ Status Display: yes
  • Scheduled Task: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
  • Power-off Memory: yes
  • Audio Compression: G.711alaw||G.711ulaw||G.722.1||G.726||MP2L2||PCM
  • Regional Focus: yes
  • Regional Exposure: yes
  • On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
  • Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KO ± 10%,1 output (line out), line level, output impedance: 600 O
  • Alarm: 7 alarm inputs, 2 alarm outputs
  • RS-485: HIKVISION, Pelco-P, Pelco-D, self-adaptive
  • Smart Tracking: manual tracking||event tracking
  • Operating Condition: -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
