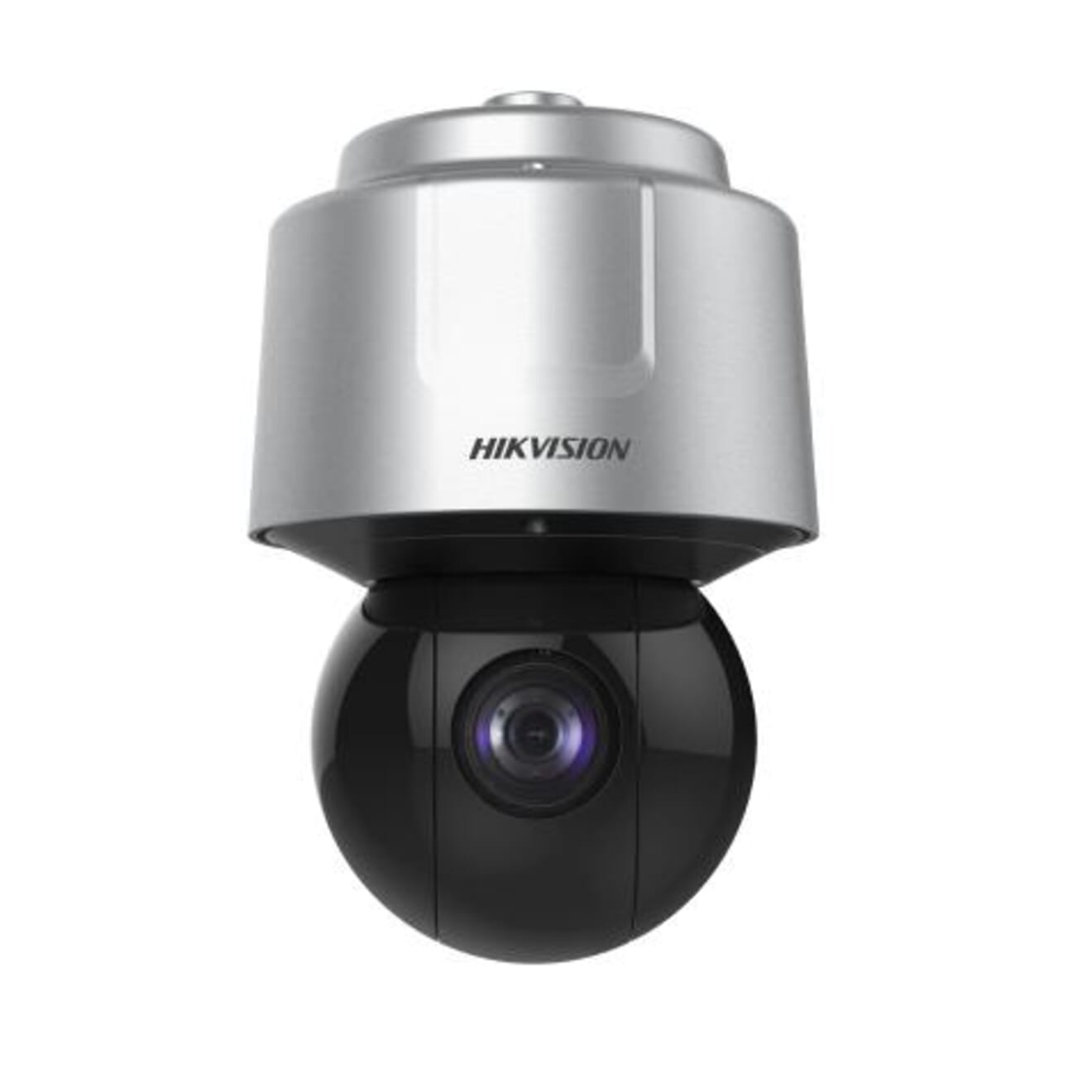

Hikvision DS-2DF6A836X-AEL(T5) 8MP PTZ IP Camera 36× Optical Zoom CCTV Security

Hikvision DS-2DF6A836X-AEL(T5) 8MP PTZ IP Camera 36× Optical Zoom CCTV Security

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 8MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2DF6A836X-AEL(T5) 8MP PTZ IP Camera 36× Optical Zoom CCTV Security
Login to View Price

Specifications

  • Image Sensor: 1/1.8＂ progressive scan CMOS
  • Max. Resolution: 3840 x 2160
  • Min. Illumination: colour: 0.005Lux @ (F1.2:AGC ON),B/W: 0.0005Lux @ (F1.2:AGC ON)
  • Day & Night: ICR
  • Aperture: F1.2
  • DORI: Detect (25px/m): 4300 mObserve (63px/m): 1706.3 mRecognize (125px/m): 860 mIdentify (250px/m): 430 m
  • Main Stream: 50 Hz: 25 fps (3840 x 2160, 2560x1440, 1920x1080, 1280x960, 1280x720)60 Hz: 24 fps (3840 x 2160, 2560x1440, 1920x1080, 1280x960, 1280x720)
  • Sub-Stream: 50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288)60 Hz: 24 fps (704 x 480, 640 x 480, 352 x 240)
  • Third Stream: 50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)60 Hz: 24 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
  • Video Compression: H.265;H.264;MJPEG
  • Video Bit Rate: 32 Kbps to 16384 Kbps
  • H.264 Type: baseline profile; main profile; high profile
  • H.265 Type: main profile
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
  • Simultaneous Live View: Up to 20 channels
  • API: ISAPI; Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);Open-ended API; Third-party management platform; ISUP; Ehome
  • User/Host: Up to 32 users. 3 levels: Administrator, Operator and User
  • Network Storage: NAS (NFS, SMB/ CIFS);ANR
  • Client: Hikcentral;iVMS-4200;Hik-Connect
  • Web Browser: IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
  • Day/Night Switch: day, night, auto, scheduled-switch
  • SNR: =52dB
  • Privacy Mask: up to 24 masks; polygon region ;mosaic mask ;mask colour configurable
  • Basic Event: alarm input and output; motion detection; video tampering alarm; exception
  • Smart Event: object removal detection; unattended baggage detection; vandal-proof alarm; parking detection; region entrance detection; region exiting detection; line crossing detection; intrusion detection; audio exception detection
  • Face Capture: Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
  • Power: 24 VAC±25% (Max. 45 W, including max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 6 W for heater)
  • Weight: Approx. 6 kg (13.23 lb.)
  • General Function: mirror, password protection, watermark, IP address filter
  • EMC: FCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC VoC (ICES-003: Issue 6, 2019);KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 62368-1)CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);CE-LVD (EN 62368-1:2014+A11:2017),BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);LOA (SANS IEC60950-1)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
  • Protection: IP67 Standard;IK10;Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5
  • Shutter Speed: 1/1 s to 1/30,000 s
  • Slow Shutter: yes
  • Focus: auto; semi-auto; manual
  • BLC: yes
  • WDR: 140 dB WDR
  • HLC: yes
  • 3D DNR: yes
  • Defog: yes
  • EIS: Yes. Built-in gyroscope to improve EIS performance.
  • Regional Exposure: yes
  • Regional Focus: yes
  • White Balance: auto; ATW; sodium lamp; fluorescent lamp; indoor; outdoor; MWB; Locked WB
  • Digital Zoom: 16x
  • Optical Zoom: 36x
  • Optical Defog: yes
  • Focal Length: 6.0 mm to 216 mm, 36x Optical
  • Zoom Speed: approx. 4.5 s
  • FOV: Horizontal field of view: 56.6° to 1.7° (wide-tele),Vertical field of view: 33.7° to 0.9° (wide-tele),Diagonal field of view: 63.4° to 1.9° (wide-tele)
  • Movement Range (Pan): 360°
  • Movement Range (Tilt): -20° to 90° (auto flip)
  • Pan Speed: pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
  • Tilt Speed: tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
  • Proportional Zoom: yes
  • Presets: 300
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
  • Power-off Memory: yes
  • Park Action: preset; pattern scan; patrol scan; auto scan; tilt scan; random scan; frame scan; panorama scan
  • 3D Positioning: yes
  • PTZ Status Display: yes
  • Preset Freezing: yes
  • Scheduled Task: preset; pattern scan; patrol scan; auto scan; tilt scan; random scan; frame scan; panorama scan; dome reboot; dome adjust; aux output
  • H.264+: yes
  • H.265+: yes
  • SVC: yes
  • ROI: fixed region
  • Audio Compression: G.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM
  • Audio Bit rate: 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32~192 Kbps(MP2L2)
  • Smooth Streaming: yes
  • Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Communication Interface: RJ45, self-adaptive 10M/100M Ethernet port
  • On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
  • Alarm Input: 7 alarm inputs
  • Alarm Output: 2 alarm outputs
  • Audio Input: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
  • Audio Output: 1 audio output, line level, impedance: 600 Ω
  • Video Output: NTSC;PAL;1.0V[p-p]/75Ω;BNC connector
  • RS-485: HIKVISION, Pelco-P, Pelco-D, self-adaptive
  • Operating Conditions: Temperature: -40°C to 70°C (-40°F to 158°F):Humidity: ≤ 95%
  • Dimensions: ⌀ 231.1 mm x 355.6 mm (⌀ 9.10" x 14")
  • Web Client Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
  • Road Traffic: Support vehicle detection (license plate number, vehicle model, and vehicle colour recognition)
  • Smart Tracking: manual tracking; auto-tracking; event tracking
  • Smart Record: ANR; Dual-VCA
  • Alarm Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Camera
  • Image Sensor: 1/1.8＂ progressive scan CMOS
  • Max. Resolution: 3840 x 2160
  • Min. Illumination: colour: 0.005Lux @ (F1.2:AGC ON),B/W: 0.0005Lux @ (F1.2:AGC ON)
  • Day & Night: ICR

Lens
  • Aperture: F1.2

DORI
  • DORI: Detect (25px/m): 4300 mObserve (63px/m): 1706.3 mRecognize (125px/m): 860 mIdentify (250px/m): 430 m

Video
  • Main Stream: 50 Hz: 25 fps (3840 x 2160, 2560x1440, 1920x1080, 1280x960, 1280x720)60 Hz: 24 fps (3840 x 2160, 2560x1440, 1920x1080, 1280x960, 1280x720)
  • Sub-Stream: 50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288)60 Hz: 24 fps (704 x 480, 640 x 480, 352 x 240)
  • Third Stream: 50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)60 Hz: 24 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
  • Video Compression: H.265;H.264;MJPEG
  • Video Bit Rate: 32 Kbps to 16384 Kbps
  • H.264 Type: baseline profile; main profile; high profile
  • H.265 Type: main profile
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
  • Simultaneous Live View: Up to 20 channels
  • API: ISAPI; Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);Open-ended API; Third-party management platform; ISUP; Ehome
  • User/Host: Up to 32 users. 3 levels: Administrator, Operator and User
  • Network Storage: NAS (NFS, SMB/ CIFS);ANR
  • Client: Hikcentral;iVMS-4200;Hik-Connect
  • Web Browser: IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

  • Day/Night Switch: day, night, auto, scheduled-switch
  • SNR: =52dB
  • Privacy Mask: up to 24 masks; polygon region ;mosaic mask ;mask colour configurable

Event
  • Basic Event: alarm input and output; motion detection; video tampering alarm; exception
  • Smart Event: object removal detection; unattended baggage detection; vandal-proof alarm; parking detection; region entrance detection; region exiting detection; line crossing detection; intrusion detection; audio exception detection

Deep Learning Function
  • Face Capture: Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.

General
  • Power: 24 VAC±25% (Max. 45 W, including max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 6 W for heater)
  • Weight: Approx. 6 kg (13.23 lb.)
  • General Function: mirror, password protection, watermark, IP address filter

Approval
  • EMC: FCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC VoC (ICES-003: Issue 6, 2019);KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 62368-1)CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);CE-LVD (EN 62368-1:2014+A11:2017),BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);LOA (SANS IEC60950-1)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
  • Protection: IP67 Standard;IK10;Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5

Other
  • Shutter Speed: 1/1 s to 1/30,000 s
  • Slow Shutter: yes
  • Focus: auto; semi-auto; manual
  • BLC: yes
  • WDR: 140 dB WDR
  • HLC: yes
  • 3D DNR: yes
  • Defog: yes
  • EIS: Yes. Built-in gyroscope to improve EIS performance.
  • Regional Exposure: yes
  • Regional Focus: yes
  • White Balance: auto; ATW; sodium lamp; fluorescent lamp; indoor; outdoor; MWB; Locked WB
  • Digital Zoom: 16x
  • Optical Zoom: 36x
  • Optical Defog: yes
  • Focal Length: 6.0 mm to 216 mm, 36x Optical
  • Zoom Speed: approx. 4.5 s
  • FOV: Horizontal field of view: 56.6° to 1.7° (wide-tele),Vertical field of view: 33.7° to 0.9° (wide-tele),Diagonal field of view: 63.4° to 1.9° (wide-tele)
  • Movement Range (Pan): 360°
  • Movement Range (Tilt): -20° to 90° (auto flip)
  • Pan Speed: pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
  • Tilt Speed: tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
  • Proportional Zoom: yes
  • Presets: 300
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
  • Power-off Memory: yes
  • Park Action: preset; pattern scan; patrol scan; auto scan; tilt scan; random scan; frame scan; panorama scan
  • 3D Positioning: yes
  • PTZ Status Display: yes
  • Preset Freezing: yes
  • Scheduled Task: preset; pattern scan; patrol scan; auto scan; tilt scan; random scan; frame scan; panorama scan; dome reboot; dome adjust; aux output
  • H.264+: yes
  • H.265+: yes
  • SVC: yes
  • ROI: fixed region
  • Audio Compression: G.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM
  • Audio Bit rate: 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32~192 Kbps(MP2L2)
  • Smooth Streaming: yes
  • Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Communication Interface: RJ45, self-adaptive 10M/100M Ethernet port
  • On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
  • Alarm Input: 7 alarm inputs
  • Alarm Output: 2 alarm outputs
  • Audio Input: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
  • Audio Output: 1 audio output, line level, impedance: 600 Ω
  • Video Output: NTSC;PAL;1.0V[p-p]/75Ω;BNC connector
  • RS-485: HIKVISION, Pelco-P, Pelco-D, self-adaptive
  • Operating Conditions: Temperature: -40°C to 70°C (-40°F to 158°F):Humidity: ≤ 95%
  • Dimensions: ⌀ 231.1 mm x 355.6 mm (⌀ 9.10" x 14")
  • Web Client Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
  • Road Traffic: Support vehicle detection (license plate number, vehicle model, and vehicle colour recognition)
  • Smart Tracking: manual tracking; auto-tracking; event tracking
  • Smart Record: ANR; Dual-VCA
  • Alarm Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
