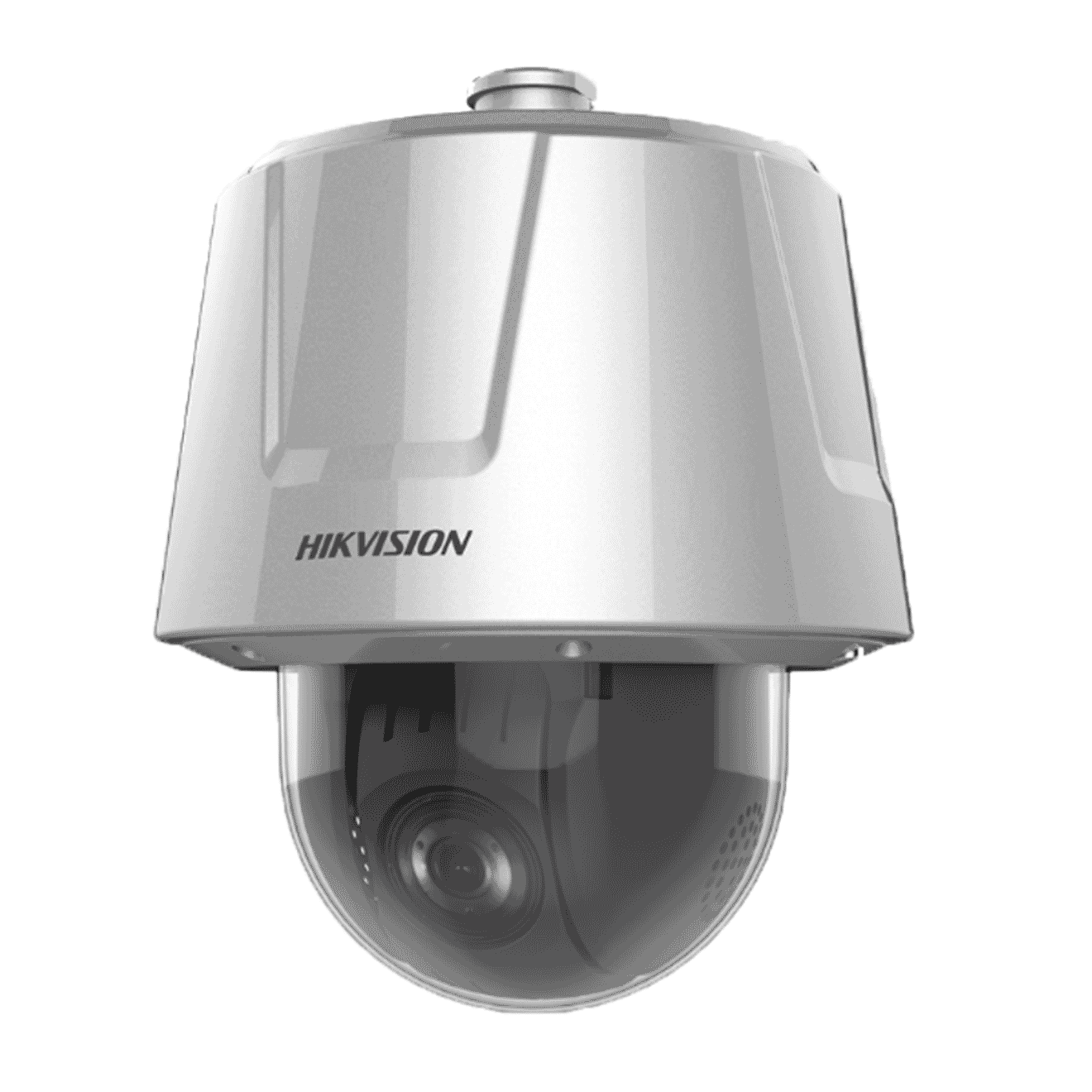

Hikvision DS-2DT6232X-AELY (T5) 2MP 32× Network IR PTZ Camera DarkFighterX Laser Wiper
Hikvision DS-2DT6232X-AELY (T5) 2MP 32× Network IR PTZ Camera DarkFighterX Laser Wiper
- IP CCTV
- 2MP
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-2DT6232X-AELY (T5) 2MP 32× Network IR PTZ Camera DarkFighterX Laser Wiper
Specifications
- Image Sensor: 1/1.8" progressive scan CMOS
- Max. Resolution: 1920 × 1080
- Min. Illumination: Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON)
- Day & Night: ICR
- Aperture: F1.5
- Main Stream: 50Hz:25fps(1920×1080,1280×960,1280×720);60Hz:30fps(1920×1080,1280×960,1280×720);
- Sub-Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression: H.265, H.264, MJPEG
- Video Bit Rate: 32 Kbps ~ 16384 Kbps
- H.264 Type: Baseline profile,Main profile,High profile
- H.265 Type: main profile
- Scalable Video Coding (SVC): yes
- Region of Interest (ROI): fixed region
- Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
- Simultaneous Live View: Up to 20 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
- User/Host: Up to 32 users. 3 levels: Administrator, Operator and User
- Security: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
- Network Storage: NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
- Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
- Web Browser: IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
- Day/Night Switch: day, night, auto, scheduled-switch
- Wide Dynamic Range (WDR): 140 dB WDR
- SNR: =52dB
- Image Enhancement: HLC/BLC/3D DNR/EIS/Regional Exposure/Regional Focus
- Privacy Mask: up to 24 masks,polygon region, mosaic mask, mask color configurable
- Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port
- Basic Event: Motion detection,video tampering alarm,alarm input and output,exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot)
- Smart Event: Motion detection,video tampering alarm,alarm input and output,exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot)
- Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
- Face Capture: Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
- Power: 24 VAC Hi-PoE
- Language: 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General Function: mirror, password protection, watermark, IP address filter
- EMC: FCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC VoC (ICES-003: Issue 6, 2019);KC (KN 32: 2015, KN 35: 2015)
- Safety: UL (UL 62368-1)CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);CE-LVD (EN 62368-1:2014+A11:2017),BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);LOA (SANS IEC60950-1)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
- Protection: Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5||IP67 Standard||IK10
- Shutter Speed: 1/1s ~ 1/30,000s
- Zoom: 32 × optical, 16 × digital
- Slow Shutter: yes
- Focal Length: 5.9mm to 188.8mm, 32× Optical
- FOV: Horizontal field of view: 59.8° to 3.3° (wide-tele),Vertical field of view: 33.7° to 1.9° (wide-tele),Diagonal field of view: 65° to 3.8° (wide-tele)
- Focus: semi-auto,manual,auto
- Zoom Speed: approx. 4.5 s
- Movement Range (Pan): 360°
- Movement Range (Tilt): -15° to 90° (auto flip)
- Pan Speed: pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
- Tilt Speed: tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
- Proportional Pan: yes
- Presets: 300
- Preset Freezing: yes
- Patrol Scan: 8 patrols, up to 32 presets for each patrol
- Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
- Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- 3D Positioning: yes
- PTZ Status Display: yes
- Scheduled Task: Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
- Power-off Memory: yes
- Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
- Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
- Smooth Streaming: yes
- Defog: yes
- On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
- Audio: 1-ch audio input and 1-ch audio output
- Alarm: 7-ch alarm input and 2-ch alarm output
- RS-485: HIKVISION, Pelco-P, Pelco-D, self-adaptive
- Smart Linkage: manual tracking, event tracking, auto-tracking
- Road Traffic: Support vehicle detection (license plate number,vehicle model, and vehicle color recognition)
- Operating Condition: Temperature: -40°C to 70°C (-40°F to 158°F),Humidity: = 95%
