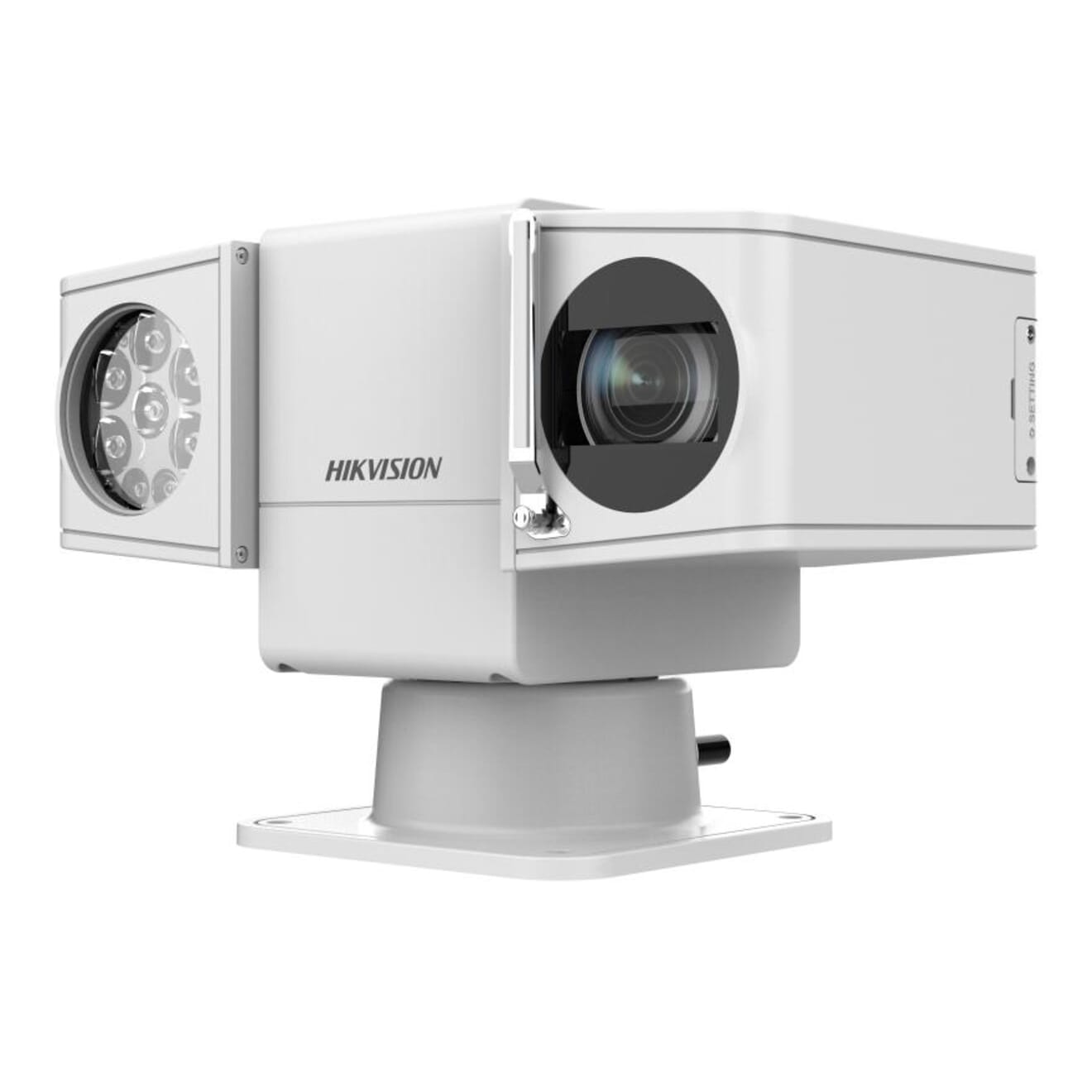

Hikvision DS-2DY5225IX-AE(T5) 2MP PTZ Camera with 25x Zoom
Hikvision DS-2DY5225IX-AE(T5) 2MP PTZ Camera with 25x Zoom
- IP CCTV
- 2MP
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-2DY5225IX-AE(T5) 2MP PTZ Camera with 25x Zoom
Specifications
- Image Sensor: 1/1.8" progressive scan CMOS
- Max. Resolution: 1920 × 1080
- Min. Illumination: color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
- Day & Night: ICR
- Aperture: F1.5
- Supplement Light Type: IR
- Supplement Light Range: 250 m
- Smart Supplement Light: Yes
- Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression: Main Stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird Stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16384 Kbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Scalable Video Coding (SVC): Support
- Region of Interest (ROI): 8 fixed regions for each stream
- Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- Simultaneous Live View: Up to 20 channels
- API: Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/Host: Up to 32 users, 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Client: iVMS-4200, HikCentral Pro, Hik-Connect
- Web Browser: IE11, Chrome 57+, Firefox 52+, Safari 11+
- Image Parameters Switch: Yes
- Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB WDR
- SNR: =52dB
- Image Enhancement: BLC, HLC, 3D DNR
- Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable
- Ethernet Interface: 1 RJ45 10 M/100 M Ethernet
- Basic Event: Motion detection, video tampering alarm, exception, alarm input and output
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
- Face Capture: Support detecting up to 10 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
- Power: 24 VAC, 3 A, max. 45 W, including max. 1.6 W for heater and 10 W for IR36 VDCHi-POE, 42.5~57 V| 1.41 A
- Dimension: Ø332 mm × 182 mm × 222 mm (Ø 13.07" × 7.17" × 8.74")
- Weight: Approx. 7.7 kg (16.98 lb.)
- Protection: IP66, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Shutter Speed: 1/1s~1/30000 s
- Zoom: 25 × optical, 16 × digital
- Slow Shutter: Yes
- Focal Length: 5.9~147.5 mm,25 × optical
- FOV: Horizontal FOV: 55.4° to 2.1° (wide-tele),Vertical FOV: 32.4° to1.2° (wide-tele),Diagonal FOV: 62° to 3.3° (wide-tele)
- Focus: Auto/Semi-automatic/Manual
- Zoom Speed: approx. 4.8 s
- Movement Range (Pan): 360° endless
- Movement Range (Tilt): From +90° to -90° (auto flip)
- Pan Speed: Configurable, from 0.1°/s to 150°/s,Preset speed: 150°/s
- Tilt Speed: Configurable, from 0.1°/s to 80°/sPreset Speed: 80°/s
- Proportional Pan: Yes
- Presets: 300
- Preset Freezing: Yes
- Patrol Scan: 8 patrols, up to 32 presets for each patrol
- Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
- Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- 3D Positioning: Yes
- PTZ Status Display: Yes
- Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
- Power-off Memory: Yes
- Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
- Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering: Yes
- Defog: Digital defog
- Image Stabilization: EIS
- Regional Focus: Yes
- Regional Exposure: Yes
- On-board Storage: support microSD/microSDHC/microSDXC cards, up to 256 GB
- Audio: 1-ch audio input and 1-ch audio output
- Alarm: 7-ch alarm input and 2-ch alarm output
- RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset: Yes
- Smart Tracking: Manual tracking, Event tracking
- Material: ADC12
- Operating Condition: Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F), Humidity: = 90%
- Wiper: Yes
