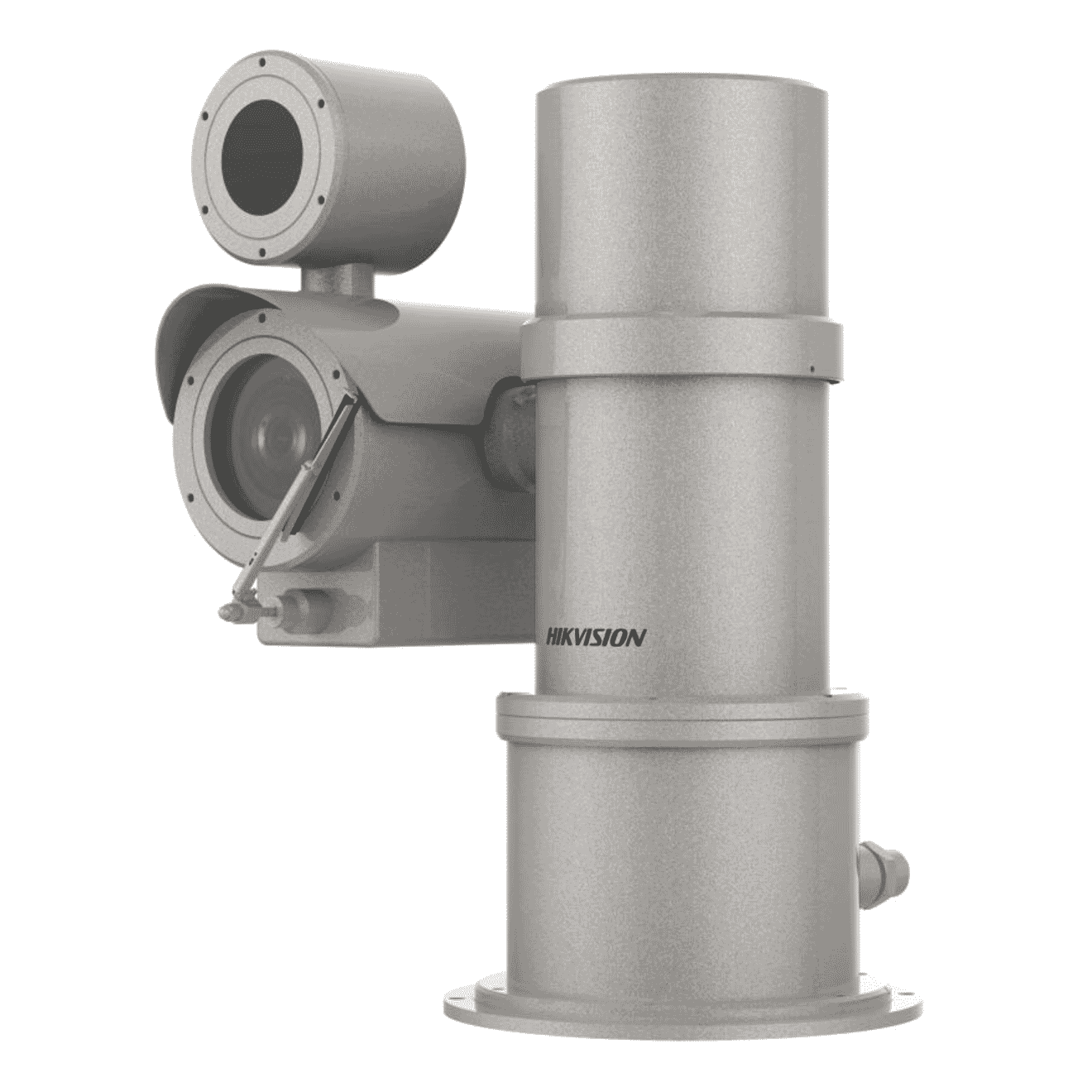

Hikvision DS-2DY9236I-CWX (T5/316L) 2MP 36× Stainless Steel PTZ Camera Laser IR

Hikvision DS-2DY9236I-CWX (T5/316L) 2MP 36× Stainless Steel PTZ Camera Laser IR

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 2MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2DY9236I-CWX (T5/316L) 2MP 36× Stainless Steel PTZ Camera Laser IR
Login to View Price

Specifications

  • Image Sensor: 1/1.8" progressive scan CMOS
  • Max. Resolution: 1920 × 1080
  • Min. Illumination: color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Day & Night: ICR
  • Aperture: F1.2
  • Supplement Light Type: IR
  • Supplement Light Range: 150 m
  • Smart Supplement Light: yes
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video Compression: Main Stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird Stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16384 Kbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Scalable Video Coding (SVC): yes
  • Region of Interest (ROI): 8 fixed regions for each stream
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • Simultaneous Live View: Up to 20 channels
  • API: Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users, 3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, HikCentral Pro, Hik-Connect
  • Web Browser: IE11, Chrome 57+, Firefox 52+, Safari 11+
  • Image Parameters Switch: yes
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Day/Night Switch: auto
  • Wide Dynamic Range (WDR): 120 dB WDR
  • SNR: =52dB
  • Image Enhancement: HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
  • Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable
  • Ethernet Interface: 1 RJ45 10 M/100 M Ethernet
  • Basic Event: Motion detection, video tampering alarm, exception, alarm input and output
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
  • Face Capture: 1. Detects up to 10 faces simultaneously2. Uploads face with background and closed-up face pictures3. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face
  • Power: 100 VAC to 240 VACMax.100 W (Max. 15 W for IR)
  • Dimension: 451 mm × 258 mm × 507.5 mm (17.76" × 10.16" × 19.98")
  • Weight: 37.6 kg (82.91 lb.)
  • General Function: Anti-flicker, heartbeat, mirror, flash log, password reset via e-mail, pixel counter, password protection, one-key reset, three streams
  • EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection: IP68, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Shutter Speed: 1/1s~1/30000 s
  • Zoom: 36 × optical, 16 × digital
  • Slow Shutter: yes
  • Focal Length: 6.0~216 mm,36 × optical
  • FOV: Horizontal field of view: 59° to 1.98° (wide-tele)Vertical field of view: 34.16° to1.12° (wide-tele)Diagonal field of view: 67.1° to 2.3° (wide-tele)
  • Focus: Auto/Semi-automatic/Manual
  • Zoom Speed: approx. 4.6 s
  • Movement Range (Pan): 360° endless
  • Movement Range (Tilt): From -90° to 90° (auto-flip)
  • Pan Speed: Configurable, from 0.1°/s to 50°/s,Preset speed: 50°/s
  • Tilt Speed: Configurable, from 0.1°/s to 40°/s, Preset Speed: 40°/s
  • Proportional Pan: yes
  • Presets: 300
  • Preset Freezing: yes
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
  • Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • 3D Positioning: yes
  • PTZ Status Display: yes
  • Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
  • Power-off Memory: yes
  • Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2,PCM
  • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise Filtering: yes
  • Smooth Streaming: yes
  • Defog: Optical defog
  • On-board Storage: support microSD/microSDHC/microSDXC cards, up to 256 GB
  • Audio: 1-ch audio input and 1-ch audio output
  • Alarm: 7-ch alarm input and 2-ch alarm output
  • RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Smart Tracking: Manual tracking, Event tracking
  • Material: SUS316L with anti-corrosion surface spray treatment
  • Operating Condition: -40°C to 60°C (-40°F to 140°F),Working Humidity= 95%
  • Cable Length: 1.248 m (4.09 ft.)
  • Heater: Yes
  • Wiper: Yes
  • Explosion-Proof Protection: ATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80? Db,IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80? Db,For explosive gas atmospheres, the maximum surface temperature is 85°C;For flammable dust atmospheres, the maximum surface temperature is 80°C;IIC: for explosive gas atmospheres other than mines susceptible to firedamp;For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
  • Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)

Camera
  • Image Sensor: 1/1.8" progressive scan CMOS
  • Max. Resolution: 1920 × 1080
  • Min. Illumination: color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Day & Night: ICR

Lens
  • Aperture: F1.2

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: 150 m
  • Smart Supplement Light: yes
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video Compression: Main Stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird Stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16384 Kbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Scalable Video Coding (SVC): yes
  • Region of Interest (ROI): 8 fixed regions for each stream
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • Simultaneous Live View: Up to 20 channels
  • API: Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users, 3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, HikCentral Pro, Hik-Connect
  • Web Browser: IE11, Chrome 57+, Firefox 52+, Safari 11+

  • Image Parameters Switch: yes
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Day/Night Switch: auto
  • Wide Dynamic Range (WDR): 120 dB WDR
  • SNR: =52dB
  • Image Enhancement: HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
  • Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M Ethernet

Event
  • Basic Event: Motion detection, video tampering alarm, exception, alarm input and output
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function
  • Face Capture: 1. Detects up to 10 faces simultaneously2. Uploads face with background and closed-up face pictures3. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face

General
  • Power: 100 VAC to 240 VACMax.100 W (Max. 15 W for IR)
  • Dimension: 451 mm × 258 mm × 507.5 mm (17.76" × 10.16" × 19.98")
  • Weight: 37.6 kg (82.91 lb.)
  • General Function: Anti-flicker, heartbeat, mirror, flash log, password reset via e-mail, pixel counter, password protection, one-key reset, three streams

Approval
  • EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection: IP68, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Other
  • Shutter Speed: 1/1s~1/30000 s
  • Zoom: 36 × optical, 16 × digital
  • Slow Shutter: yes
  • Focal Length: 6.0~216 mm,36 × optical
  • FOV: Horizontal field of view: 59° to 1.98° (wide-tele)Vertical field of view: 34.16° to1.12° (wide-tele)Diagonal field of view: 67.1° to 2.3° (wide-tele)
  • Focus: Auto/Semi-automatic/Manual
  • Zoom Speed: approx. 4.6 s
  • Movement Range (Pan): 360° endless
  • Movement Range (Tilt): From -90° to 90° (auto-flip)
  • Pan Speed: Configurable, from 0.1°/s to 50°/s,Preset speed: 50°/s
  • Tilt Speed: Configurable, from 0.1°/s to 40°/s, Preset Speed: 40°/s
  • Proportional Pan: yes
  • Presets: 300
  • Preset Freezing: yes
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
  • Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • 3D Positioning: yes
  • PTZ Status Display: yes
  • Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
  • Power-off Memory: yes
  • Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2,PCM
  • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise Filtering: yes
  • Smooth Streaming: yes
  • Defog: Optical defog
  • On-board Storage: support microSD/microSDHC/microSDXC cards, up to 256 GB
  • Audio: 1-ch audio input and 1-ch audio output
  • Alarm: 7-ch alarm input and 2-ch alarm output
  • RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Smart Tracking: Manual tracking, Event tracking
  • Material: SUS316L with anti-corrosion surface spray treatment
  • Operating Condition: -40°C to 60°C (-40°F to 140°F),Working Humidity= 95%
  • Cable Length: 1.248 m (4.09 ft.)
  • Heater: Yes
  • Wiper: Yes
  • Explosion-Proof Protection: ATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80? Db,IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80? Db,For explosive gas atmospheres, the maximum surface temperature is 85°C;For flammable dust atmospheres, the maximum surface temperature is 80°C;IIC: for explosive gas atmospheres other than mines susceptible to firedamp;For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
  • Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
