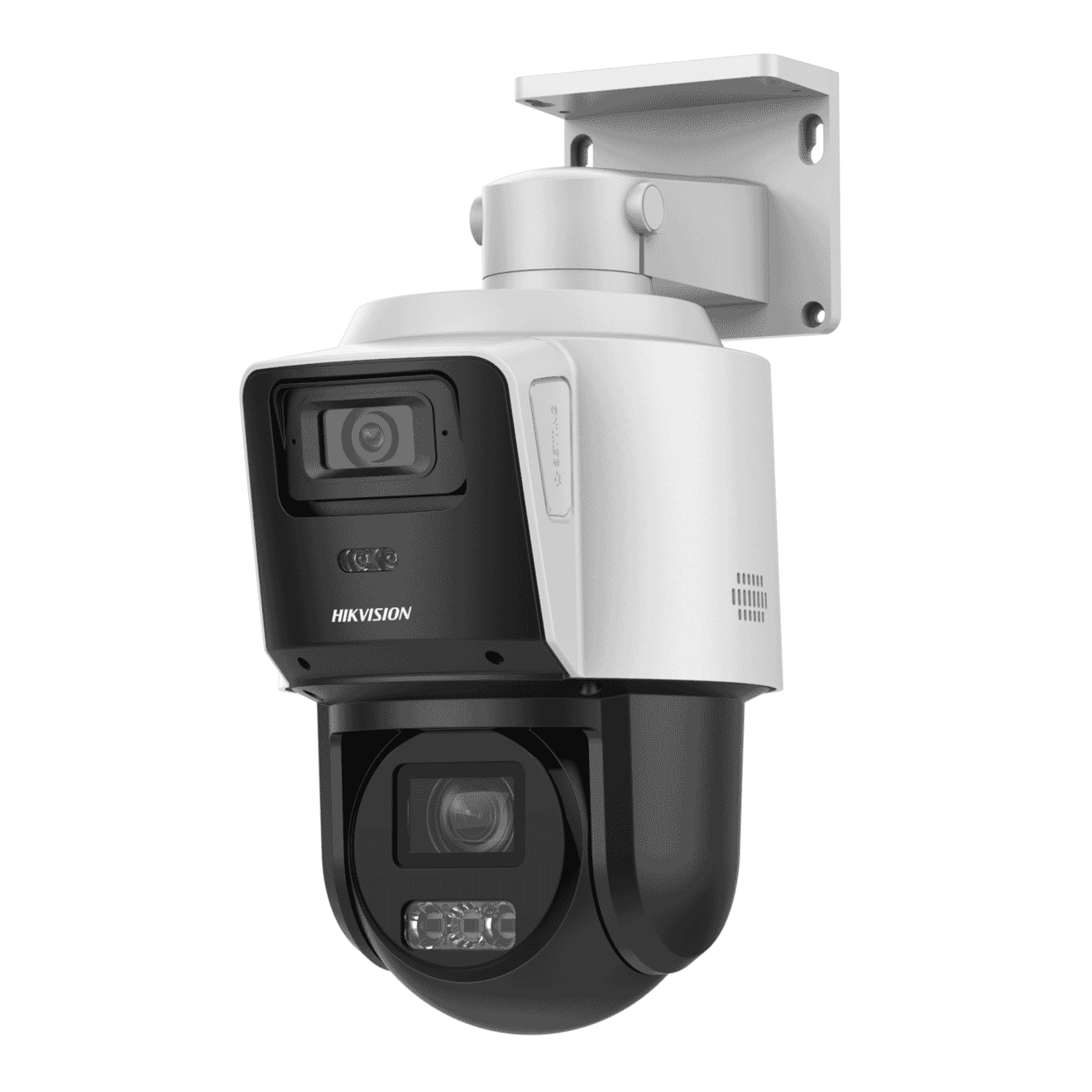

Hikvision DS-2SE3C404MWG-E/14 (2.8mm) TandemVu 4MP+4MP 4X POE PTZ Network Camera
Hikvision DS-2SE3C404MWG-E/14 (2.8mm) TandemVu 4MP+4MP 4X POE PTZ Network Camera
- IP CCTV
- 4MP
- Fixed Lens
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-2SE3C404MWG-E/14 (2.8mm) TandemVu 4MP+4MP 4X POE PTZ Network Camera
Specifications
- Image Sensor: [Bullet channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
- Max. Resolution: [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
- Min. Illumination: [Bullet channel]: Color: 0.01 Lux @ (F1.6, AGC ON),B/W: 0.005 Lux @ (F1.6,AGC ON), 0 Lux with IR;[PTZ channel]: Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005Lux @ (F1.5, AGC ON), 0 Lux with IR
- Day & Night: ICR
- Aperture: [Bullet channel]: F1.6; [PTZ channel]: F1.5 to F2.9
- Supplement Light Type: [Bullet channel] Hybrid (IR and White Light), [PTZ channel] IR
- Supplement Light Range: [PTZ channel]: IR Distance: up to 40 m;[Bullet channel]: IR Distance: up to 30 m; White Light Distance: 30 m
- Smart Supplement Light: Yes
- Main Stream: [Bullet channel]:50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)[PTZ channel]:50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream: [Bullet channel]:50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360)[PTZ channel]:50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360)
- Third Stream: [Bullet channel]:50 Hz: 25 fps (1280 × 720,640 × 480,640 × 360)60 Hz: 30 fps (1280 × 720,640 × 480,640 × 360)[PTZ channel]:50 Hz: 25 fps (1280 × 720,640 × 480,640 × 360)60 Hz: 30 fps (1280 × 720,640 × 480,640 × 360)
- Video Compression: H.265,H.264,MJPEG
- Video Bit Rate: 32 kbps to 16384 kbps
- H.264 Type: main profile,baseline profile,high profile
- H.265 Type: main profile
- Scalable Video Coding (SVC): yes
- Region of Interest (ROI): 1 fixed regions for main stream
- Protocols: TCP/IP,SMTP,RTSP,FTP,WebSockets,IGMP,WebSocket,Qos,RTCP,HTTPS,PPPoE,SNMP,NTP,RTP,UDP,DNS,HTTP,DHCP,Bonjour,802.1x,IPv4/IPv6,DDNS,ICMP,UPnP
- Simultaneous Live View: 20
- API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/Host: 32
- Security: 802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption
- Network Storage: NAS (NFS, SMB/ CIFS),ANR, ANR
- Client: iVMS-4200,Hik-Connect
- Web Browser: IE8+, Chrome31 to 44, Firefox 30 to 51, Safari8.0+
- Image Parameters Switch: Yes
- Image Settings: sharpness, saturation, brightness, contrast
- Day/Night Switch: day, night, auto, scheduled-switch
- Wide Dynamic Range (WDR): 120 dB
- SNR: = 52 dB
- Image Enhancement: BLC,HLC,3D DNR
- Privacy Mask: [Bullet channel] 24 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks
- Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port
- Basic Event: Motion detection,video tampering alarm,exception,alarm input and output
- Smart Event: Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection
- Linkage: [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
- Power: 12 VDC, max. 13.5 W,PoE+
- Dimension: 311.5 mm × 223.5 mm × 156 mm (12.26" × 8.80" × 6.14")
- Weight: Approx. 1.37 kg (3.02 lb.)
- General Function: mirror,watermark,IP address filter,password protection
- Protection: IP66 Standard, Surge Protection and Voltage Transient Protection
- Shutter Speed: 1 s to 1/30,000 s
- Slow Shutter: yes
- Zoom: [PTZ channel] 4 × optical, 16 × digital
- Focus: auto,manual,semi-auto
- Focal Length: [Bullet channel]: 2.8 mm; [PTZ channel]: 2.8 to 12 mm, 4 × optical
- Zoom Speed: [PTZ channel]: approx. 3.3 s
- FOV: [Bullet channel] horizontal field of view: 114.9°, vertical field of view: 62.4°, diagonal field of view: 130.7°, [PTZ channel] horizontal field of view: 98° to 34.2°, vertical field of view: 52° to 19.2°, diagonal field of view: 111° to 39°
- Movement Range (Pan): 0° to 350°
- Movement Range (Tilt): [Bullet channel] 7° to 17° (manually adjust), [PTZ channel] -5° to 90°
- Pan Speed: pan speed: configurable from 0.1° to 30°/s; preset speed: 30°/s
- Tilt Speed: tilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s
- Proportional Pan: yes
- Presets: 300
- Patrol Scan: 8 patrols, up to 32 presets for each patrol
- Power-off Memory: yes
- Park Action: preset,patrol scan
- 3D Positioning: yes
- PTZ Status Display: yes
- Preset Freezing: yes
- Scheduled Task: dome reboot,preset,patrol scan,dome adjust,aux output
- Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC
- Audio Bit Rate: MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps; AAC : 16 kbps, 32 kbps, 64 kbps; MP3: 8 kbps, 16 kbps, 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps
- Audio Sampling Rate: MP2L2: 16 kHz,AAC-LC: 16 kHz,PCM: 8 kHz, 16 kHz,MP3: 8 kHz, 16 kHz
- Environment Noise Filtering: yes
- Defog: Digital defog
- Regional Focus: [Bullet channel] No, [PTZ channel] Yes
- Regional Exposure: [Bullet channel] No, [PTZ channel] Yes
- Built-in Microphone: 1 built-in microphone
- Built-in Speaker: 1 built-in speaker
- On-board Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB
- Reset: yes
- Operating Condition: -30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
- Demist: Demist by heating the glass
- Material: PC
