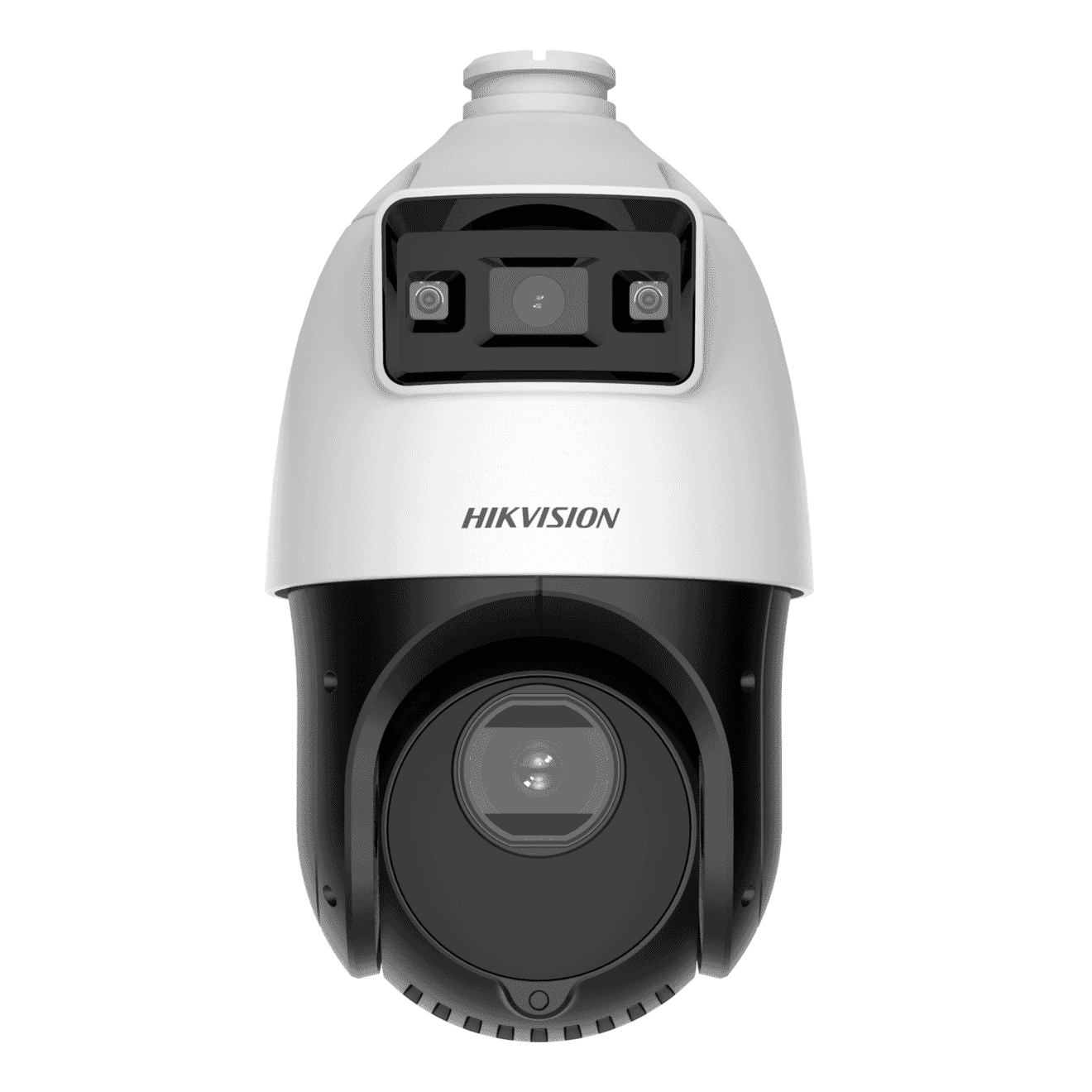

Hikvision DS-2SE4C415MWG-E(14F0) 4MP PTZ Camera with 15x Zoom

Hikvision DS-2SE4C415MWG-E(14F0) 4MP PTZ Camera with 15x Zoom

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2SE4C415MWG-E(14F0) 4MP PTZ Camera with 15x Zoom
Login to View Price

Specifications

  • Image Sensor: [Bullet channel]: 1/3" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
  • Max. Resolution: [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
  • Min. Illumination: [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Day & Night: ICR
  • Aperture: [Bullet channel]: F1.0; [PTZ channel]: F1.6
  • Supplement Light Type: [PTZ channel]: IR; [Bullet channel]: White Light
  • Supplement Light Range: [PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m
  • Smart Supplement Light: Yes
  • Main Stream: [Bullet channel]:50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)[PTZ channel]:50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream: [Bullet channel]:50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)[PTZ channel]:50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream: [Bullet channel]:50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)[PTZ channel]:50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video Compression: H.265||H.264||MJPEG
  • Video Bit Rate: 32 kbps to 16384 kbps
  • H.264 Type: baseline profile||main profile||high profile
  • H.265 Type: main profile
  • Scalable Video Coding (SVC): yes
  • Region of Interest (ROI): 8 fixed regions for each stream
  • Protocols: IPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour||WebSocket||WebSockets
  • Simultaneous Live View: 20
  • API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host: 32
  • Security: Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
  • Network Storage: NAS (NFS, SMB/ CIFS)|| ANR||ANR
  • Client: iVMS-4200||Hik-Connect
  • Web Browser: IE 10+, Chrome 57+, Firefox 52+, Safari 12+
  • Image Parameters Switch: Yes
  • Image Settings: sharpness, saturation, brightness, contrast
  • Day/Night Switch: day, night, auto, scheduled-switch
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: = 52 dB
  • Image Enhancement: BLC,HLC,3D DNR
  • Privacy Mask: [Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
  • Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port
  • Basic Event: Motion detection,video tampering alarm,exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot),alarm input and output
  • Smart Event: Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection
  • Linkage: [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
  • Face Capture: [Bullet channel] no,[PTZ channel] yes
  • Power: 12 VDC, PoE+
  • Dimension: Ø 166 mm × 375 mm (Ø 6.5" × 14.7")
  • Weight: Approx. 2.4kg (13.2 lb.)
  • General Function: mirror,watermark,IP address filter,password protection
  • Protection: IP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Shutter Speed: 1 s to 1/30,000 s
  • Zoom: [PTZ channel] 15 × optical, 16 × digital
  • Slow Shutter: yes
  • Focal Length: [Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 72 mm, 15 × optical
  • FOV: [Bullet channel]: Horizontal field of view: 96.1°, Vertical field of view: 52.1°,Diagonal field of view: 113.3°;[PTZ channel]:Horizontal field of view: 55° to 4° (wide-tele),Vertical field of view: 33° to 2.2° (wide-tele),Diagonal field of view: 61.5° to 4.6° (wide-tele)
  • Focus: semi-auto||manual||auto
  • Zoom Speed: [PTZ channel]: approx. 2.3 s
  • Movement Range (Pan): 360°
  • Movement Range (Tilt): -15° to 90° (auto flip)
  • Pan Speed: pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
  • Tilt Speed: tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
  • Proportional Pan: yes
  • Presets: 300
  • Preset Freezing: yes
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans
  • Park Action: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
  • 3D Positioning: yes
  • PTZ Status Display: yes
  • Scheduled Task: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
  • Power-off Memory: yes
  • Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
  • Audio Bit Rate: 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz,16 kHz,32 kHz,48 kHz
  • Environment Noise Filtering: yes
  • Defog: Digital defog
  • Image Stabilization: EIS
  • Regional Focus: Yes
  • Regional Exposure: Yes
  • On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
  • Audio: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 O
  • Alarm: 1 alarm input, 1 alarm output
  • Reset: yes
  • Material: ADC12
  • Operating Condition: -30? to 65? (-22°F to 149°F) ||humidity lower than 90%RH
  • Demist: Demist by heating the glass
  • Power Consumption and Current: Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light

Camera
  • Image Sensor: [Bullet channel]: 1/3" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
  • Max. Resolution: [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
  • Min. Illumination: [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Day & Night: ICR

Lens
  • Aperture: [Bullet channel]: F1.0; [PTZ channel]: F1.6

Illuminator
  • Supplement Light Type: [PTZ channel]: IR; [Bullet channel]: White Light
  • Supplement Light Range: [PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m
  • Smart Supplement Light: Yes

Video
  • Main Stream: [Bullet channel]:50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)[PTZ channel]:50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream: [Bullet channel]:50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)[PTZ channel]:50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream: [Bullet channel]:50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)[PTZ channel]:50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video Compression: H.265||H.264||MJPEG
  • Video Bit Rate: 32 kbps to 16384 kbps
  • H.264 Type: baseline profile||main profile||high profile
  • H.265 Type: main profile
  • Scalable Video Coding (SVC): yes
  • Region of Interest (ROI): 8 fixed regions for each stream
  • Protocols: IPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour||WebSocket||WebSockets
  • Simultaneous Live View: 20
  • API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host: 32
  • Security: Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
  • Network Storage: NAS (NFS, SMB/ CIFS)|| ANR||ANR
  • Client: iVMS-4200||Hik-Connect
  • Web Browser: IE 10+, Chrome 57+, Firefox 52+, Safari 12+

  • Image Parameters Switch: Yes
  • Image Settings: sharpness, saturation, brightness, contrast
  • Day/Night Switch: day, night, auto, scheduled-switch
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: = 52 dB
  • Image Enhancement: BLC,HLC,3D DNR
  • Privacy Mask: [Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

Interface
  • Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port

Event
  • Basic Event: Motion detection,video tampering alarm,exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot),alarm input and output
  • Smart Event: Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection
  • Linkage: [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function
  • Face Capture: [Bullet channel] no,[PTZ channel] yes

General
  • Power: 12 VDC, PoE+
  • Dimension: Ø 166 mm × 375 mm (Ø 6.5" × 14.7")
  • Weight: Approx. 2.4kg (13.2 lb.)
  • General Function: mirror,watermark,IP address filter,password protection

Approval
  • Protection: IP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection

Other
  • Shutter Speed: 1 s to 1/30,000 s
  • Zoom: [PTZ channel] 15 × optical, 16 × digital
  • Slow Shutter: yes
  • Focal Length: [Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 72 mm, 15 × optical
  • FOV: [Bullet channel]: Horizontal field of view: 96.1°, Vertical field of view: 52.1°,Diagonal field of view: 113.3°;[PTZ channel]:Horizontal field of view: 55° to 4° (wide-tele),Vertical field of view: 33° to 2.2° (wide-tele),Diagonal field of view: 61.5° to 4.6° (wide-tele)
  • Focus: semi-auto||manual||auto
  • Zoom Speed: [PTZ channel]: approx. 2.3 s
  • Movement Range (Pan): 360°
  • Movement Range (Tilt): -15° to 90° (auto flip)
  • Pan Speed: pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
  • Tilt Speed: tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
  • Proportional Pan: yes
  • Presets: 300
  • Preset Freezing: yes
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans
  • Park Action: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
  • 3D Positioning: yes
  • PTZ Status Display: yes
  • Scheduled Task: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
  • Power-off Memory: yes
  • Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
  • Audio Bit Rate: 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz,16 kHz,32 kHz,48 kHz
  • Environment Noise Filtering: yes
  • Defog: Digital defog
  • Image Stabilization: EIS
  • Regional Focus: Yes
  • Regional Exposure: Yes
  • On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
  • Audio: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 O
  • Alarm: 1 alarm input, 1 alarm output
  • Reset: yes
  • Material: ADC12
  • Operating Condition: -30? to 65? (-22°F to 149°F) ||humidity lower than 90%RH
  • Demist: Demist by heating the glass
  • Power Consumption and Current: Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
