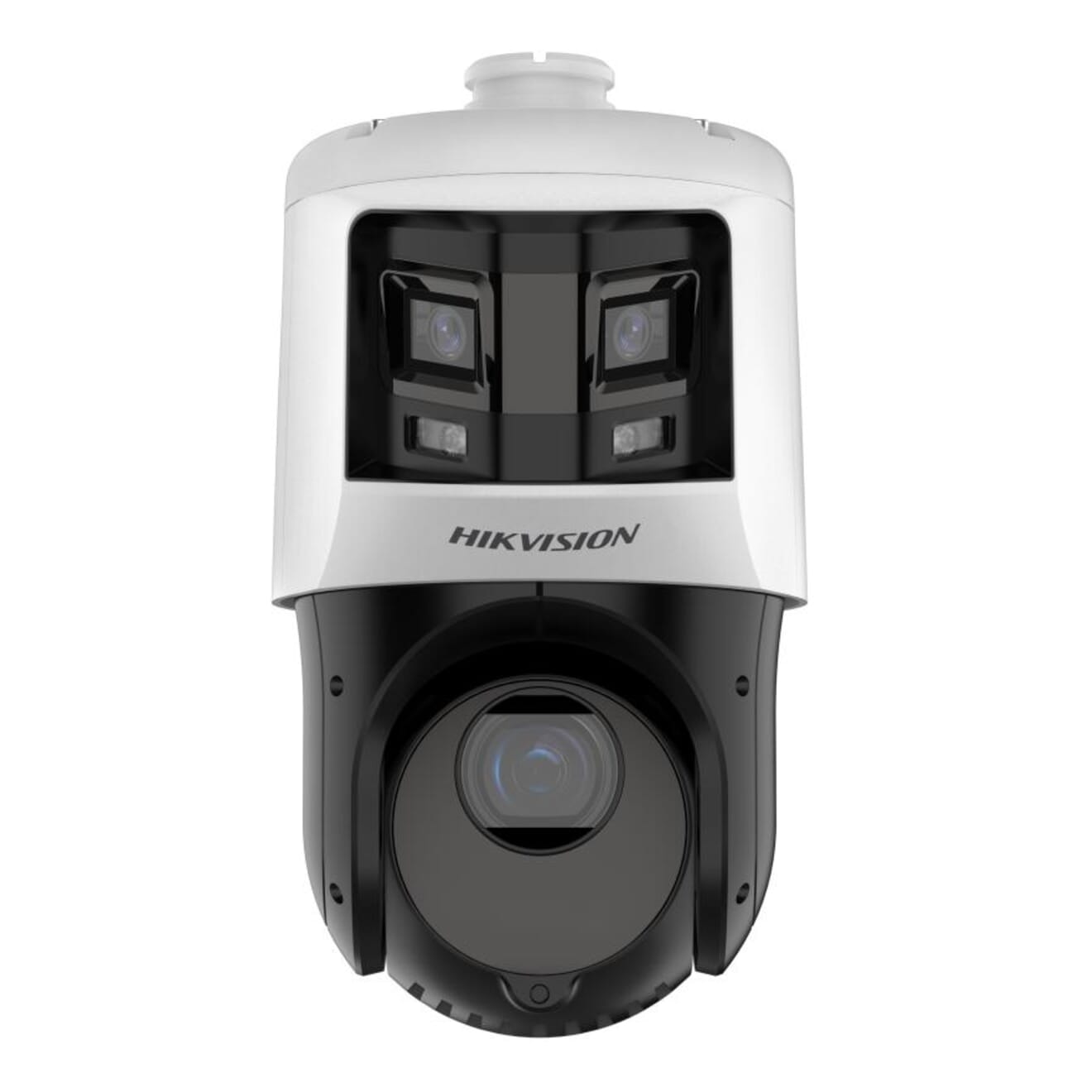

Hikvision DS-2SE4C425MWG-E/26(F0) 4MP PTZ Network Security Camera 25× Zoom CCTV

Hikvision DS-2SE4C425MWG-E/26(F0) 4MP PTZ Network Security Camera 25× Zoom CCTV

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2SE4C425MWG-E/26(F0) 4MP PTZ Network Security Camera 25× Zoom CCTV
Login to View Price

Specifications

  • Image Sensor: [Bullet channel]: 1/2.5" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
  • Max. Resolution: [Bullet channel] 3632 x 1632, [PTZ channel] 2560 x 1440
  • Min. Illumination: [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Day & Night: ICR
  • Aperture: [Bullet channel]: F1.0[PTZ channel]: F1.6
  • Supplement Light Type: [PTZ channel]: IR[Bullet channel]: White Light
  • Supplement Light Range: [PTZ channel]: up to 100 m[Bullet channel]: up to 30 m
  • Smart Supplement Light: Yes
  • Main Stream: [Bullet channel]50 Hz：25 fps（3632 x 1632:3680 x 1656）60 Hz：30 fps（3632 x 1632:3680 x 1656）[PTZ channel]50 Hz：25 fps（2560 x 1440:1920 x 1080:1280 x 960:1280 x 720）60 Hz：30 fps（2560 x 1440:1920 x 1080:1280 x 960:1280 x 720）
  • Sub-Stream: [Bullet channel]50 Hz：25 fps（1200 x 536:960 x 432）60 Hz：30 fps（1200 x 536:960 x 432）[PTZ channel]50 Hz：25 fps（704 x 576:640 x 480:352 x 288）60 Hz：30 fps（704 x 480:640 x 480:352 x 240）
  • Third Stream: [Bullet channel]No[PTZ channel]50 Hz：25 fps（1920 x 1080:1280 x 960:1280 x 720:704 x 576:640 x 480:352 x 288）60 Hz：30 fps（1920 x 1080:1280 x 960:1280 x 720:704 x 480:640 x 480:352 x 240）
  • Video Compression: H.265||H.264||MJPEG
  • Video Bit Rate: 32 kbps to 16384 kbps
  • H.264 Type: baseline profile||main profile||high profile
  • H.265 Type: main profile
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 8 fixed regions for each stream
  • Simultaneous Live View: 20
  • API: ISAPI,SDK,ISUP,ONVIF
  • User/Host: 32
  • Security: Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
  • Network Storage: NAS (NFS, SMB/ CIFS)|| ANR
  • Client: iVMS-4200||Hik-Connect
  • Web Browser: IE11+,Chrome57+,Firefox52+,Safari12+,Edge79.0.309.65+
  • Image Parameters Switch: Yes
  • Image Settings: sharpness, saturation, brightness, contrast
  • Day/Night Switch: day, night, auto, scheduled-switch
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: ≥ 52 dB
  • Image Enhancement: BLC,HLC,3D DNR
  • Privacy Mask: [Bullet channel] 8 programmable polygon privacy masks[PTZ channel] 24 programmable polygon privacy masks; mask colour or mosaic configurable
  • Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port
  • Basic Event: [PTZ channel] motion detection, video tampering alarm[PTZ channel & bullet channel] alarm input and output, exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot)
  • Smart Event: [PTZ channel & bullet channel] audio exception detection[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
  • Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning,and PTZ actions (such as preset, patrol scan, pattern scan)
  • Face Capture: Detects up to 5 faces simultaneously,Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
  • Power: 12VDC, PoE+
  • Dimension: Ø 166 mm x 375 mm (Ø 6.5" x 14.7")
  • Weight: Approx. 2.4 kg (13.2 lb.)
  • General Function: mirror,watermark,password protection
  • Protection: IP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Shutter Speed: 1 s to 1/30,000 s
  • Zoom: [PTZ channel] 25 x optical, 16 x digital
  • Slow Shutter: yes
  • Focal Length: [Bullet channel]: 2.8 mm[PTZ channel]: 4.8 to 120 mm, 25 x optical
  • FOV: [Bullet channel]: Horizontal field of view: 180±10°, Vertical field of view: 80±5°;[PTZ channel]:Horizontal field of view: 55° to 2.4° (wide-tele),Vertical field of view: 33° to 1.4° (wide-tele),Diagonal field of view: 61.5° to 2.8° (wide-tele)
  • Focus: semi-auto||manual||auto
  • Zoom Speed: [PTZ channel]: approx. 3.6 s
  • Movement Range (Pan): 360°
  • Movement Range (Tilt): -15° to 90° (auto flip)
  • Pan Speed: pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
  • Tilt Speed: tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
  • Proportional Pan: yes
  • Presets: 300
  • Preset Freezing: yes
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans
  • Park Action: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
  • 3D Positioning: yes
  • PTZ Status Display: yes
  • Scheduled Task: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
  • Power-off Memory: yes
  • Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
  • Audio Bit Rate: MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC-LC: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
  • Audio Sampling Rate: MP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps, 192 Kbps, AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps , MP3: 8Kbps, 16Kbps, 24Kbps, 32Kbps, 40Kbps, 48Kbps, 56Kbps, 64Kbps, 80Kbps, 96Kbps, 112Kbps, 128Kbps, 160Kbps, 192Kbps, 224Kbps, 256Kbps, 320Kbps
  • Environment Noise Filtering: yes
  • Defog: Digital defog
  • Image Stabilization: EIS
  • Regional Focus: Yes
  • Regional Exposure: Yes
  • On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
  • Audio: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
  • Alarm: 1 alarm input, 1 alarm output
  • Reset: yes
  • Smart Linkage: Panorama Linkage
  • Material: ADC12
  • Operating Condition: -30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH
  • Demist: Demist by heating the glass
  • Power Consumption and Current: Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light

Camera
  • Image Sensor: [Bullet channel]: 1/2.5" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
  • Max. Resolution: [Bullet channel] 3632 x 1632, [PTZ channel] 2560 x 1440
  • Min. Illumination: [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Day & Night: ICR

Lens
  • Aperture: [Bullet channel]: F1.0[PTZ channel]: F1.6

Illuminator
  • Supplement Light Type: [PTZ channel]: IR[Bullet channel]: White Light
  • Supplement Light Range: [PTZ channel]: up to 100 m[Bullet channel]: up to 30 m
  • Smart Supplement Light: Yes

Video
  • Main Stream: [Bullet channel]50 Hz：25 fps（3632 x 1632:3680 x 1656）60 Hz：30 fps（3632 x 1632:3680 x 1656）[PTZ channel]50 Hz：25 fps（2560 x 1440:1920 x 1080:1280 x 960:1280 x 720）60 Hz：30 fps（2560 x 1440:1920 x 1080:1280 x 960:1280 x 720）
  • Sub-Stream: [Bullet channel]50 Hz：25 fps（1200 x 536:960 x 432）60 Hz：30 fps（1200 x 536:960 x 432）[PTZ channel]50 Hz：25 fps（704 x 576:640 x 480:352 x 288）60 Hz：30 fps（704 x 480:640 x 480:352 x 240）
  • Third Stream: [Bullet channel]No[PTZ channel]50 Hz：25 fps（1920 x 1080:1280 x 960:1280 x 720:704 x 576:640 x 480:352 x 288）60 Hz：30 fps（1920 x 1080:1280 x 960:1280 x 720:704 x 480:640 x 480:352 x 240）
  • Video Compression: H.265||H.264||MJPEG
  • Video Bit Rate: 32 kbps to 16384 kbps
  • H.264 Type: baseline profile||main profile||high profile
  • H.265 Type: main profile
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 8 fixed regions for each stream
  • Simultaneous Live View: 20
  • API: ISAPI,SDK,ISUP,ONVIF
  • User/Host: 32
  • Security: Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
  • Network Storage: NAS (NFS, SMB/ CIFS)|| ANR
  • Client: iVMS-4200||Hik-Connect
  • Web Browser: IE11+,Chrome57+,Firefox52+,Safari12+,Edge79.0.309.65+

  • Image Parameters Switch: Yes
  • Image Settings: sharpness, saturation, brightness, contrast
  • Day/Night Switch: day, night, auto, scheduled-switch
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: ≥ 52 dB
  • Image Enhancement: BLC,HLC,3D DNR
  • Privacy Mask: [Bullet channel] 8 programmable polygon privacy masks[PTZ channel] 24 programmable polygon privacy masks; mask colour or mosaic configurable

Interface
  • Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port

Event
  • Basic Event: [PTZ channel] motion detection, video tampering alarm[PTZ channel & bullet channel] alarm input and output, exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot)
  • Smart Event: [PTZ channel & bullet channel] audio exception detection[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
  • Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning,and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function
  • Face Capture: Detects up to 5 faces simultaneously,Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture

General
  • Power: 12VDC, PoE+
  • Dimension: Ø 166 mm x 375 mm (Ø 6.5" x 14.7")
  • Weight: Approx. 2.4 kg (13.2 lb.)
  • General Function: mirror,watermark,password protection

Approval
  • Protection: IP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection

Other
  • Shutter Speed: 1 s to 1/30,000 s
  • Zoom: [PTZ channel] 25 x optical, 16 x digital
  • Slow Shutter: yes
  • Focal Length: [Bullet channel]: 2.8 mm[PTZ channel]: 4.8 to 120 mm, 25 x optical
  • FOV: [Bullet channel]: Horizontal field of view: 180±10°, Vertical field of view: 80±5°;[PTZ channel]:Horizontal field of view: 55° to 2.4° (wide-tele),Vertical field of view: 33° to 1.4° (wide-tele),Diagonal field of view: 61.5° to 2.8° (wide-tele)
  • Focus: semi-auto||manual||auto
  • Zoom Speed: [PTZ channel]: approx. 3.6 s
  • Movement Range (Pan): 360°
  • Movement Range (Tilt): -15° to 90° (auto flip)
  • Pan Speed: pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
  • Tilt Speed: tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
  • Proportional Pan: yes
  • Presets: 300
  • Preset Freezing: yes
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans
  • Park Action: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
  • 3D Positioning: yes
  • PTZ Status Display: yes
  • Scheduled Task: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
  • Power-off Memory: yes
  • Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
  • Audio Bit Rate: MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC-LC: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
  • Audio Sampling Rate: MP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps, 192 Kbps, AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps , MP3: 8Kbps, 16Kbps, 24Kbps, 32Kbps, 40Kbps, 48Kbps, 56Kbps, 64Kbps, 80Kbps, 96Kbps, 112Kbps, 128Kbps, 160Kbps, 192Kbps, 224Kbps, 256Kbps, 320Kbps
  • Environment Noise Filtering: yes
  • Defog: Digital defog
  • Image Stabilization: EIS
  • Regional Focus: Yes
  • Regional Exposure: Yes
  • On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
  • Audio: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
  • Alarm: 1 alarm input, 1 alarm output
  • Reset: yes
  • Smart Linkage: Panorama Linkage
  • Material: ADC12
  • Operating Condition: -30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH
  • Demist: Demist by heating the glass
  • Power Consumption and Current: Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
