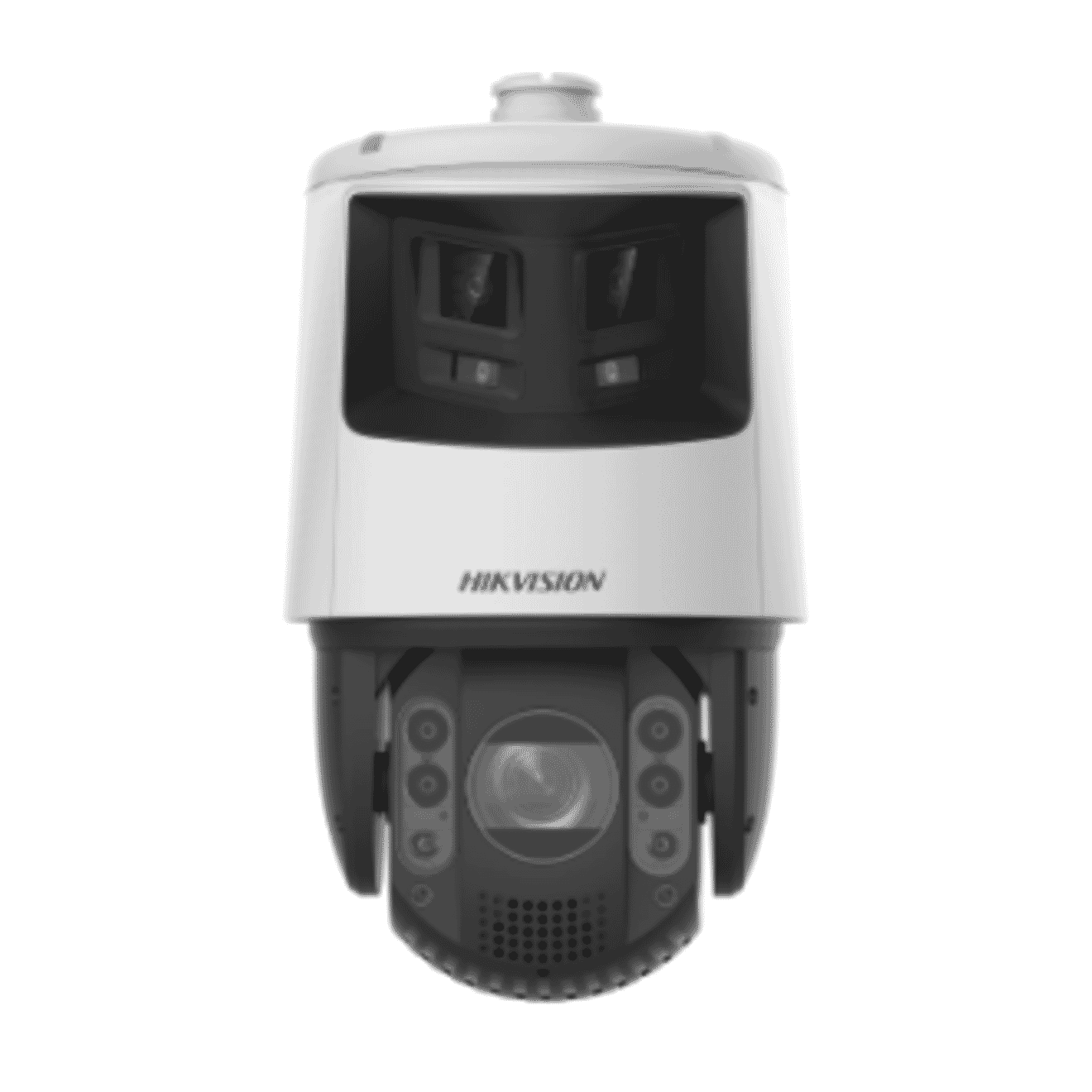

Hikvision DS-2SE7C432MWG-EB/26(F0) 4MP PTZ IP Camera 32× Zoom IR CCTV Security

Hikvision DS-2SE7C432MWG-EB/26(F0) 4MP PTZ IP Camera 32× Zoom IR CCTV Security

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2SE7C432MWG-EB/26(F0) 4MP PTZ IP Camera 32× Zoom IR CCTV Security
Login to View Price

Specifications

  • Image Sensor: [Panoramic channel] 1/2.5" Progressive Scan CMOS, [PTZ channel] 1/2.8" Progressive Scan CMOS
  • Max. Resolution: [Panoramic channel] 3632 x 1632, [PTZ channel] 2560 x 1440
  • Min. Illumination: [PTZ channel] Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 lux with IR,[Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
  • Day & Night: IR cut filter
  • Aperture: [Panoramic channel] F1.0, [PTZ channel] Max. F1.5
  • Supplement Light Range: IR distance: up to 200 m
  • Main Stream: [PTZ channel] 50 Hz: 25 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720), 60 Hz: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)[Panoramic channel] 50 Hz: 25 fps (3632 x 1632, 3680 x 1656), 60 Hz: 30 fps (3632 x 1632, 3680 x 1656)
  • Sub-Stream: [PTZ channel] 50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288), 60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)[Panoramic channel] 50 Hz: 25 fps (1200 x 536, 960 x 432), 60 Hz: 30 fps (1200 x 536, 960 x 432)
  • Third Stream: [PTZ channel] 50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288), 60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)[Panoramic channel] No
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16384 Mbps
  • H.264 Type: Baseline Profile, Main Profile, High Profile
  • H.265 Type: Main Profile
  • Scalable Video Coding (SVC): yes
  • Region of Interest (ROI): fixed region
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, WebSocket, WebSockets, SRTP
  • Simultaneous Live View: 20
  • API: ISUP, SDK, ISAPI, Open Network Video Interface (Profile S, Profile G, Profile T)
  • User/Host: 32
  • Security: Password protection, HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), host authentication (MAC address), IP address filter
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, HikCentral Pro, Hik-Connect
  • Web Browser: IE 11+, Chrome 57+, Firefox 52+, Safari 12+, Edge79.0.309.65+
  • Image Parameters Switch: Yes
  • Image Settings: saturation, brightness, contrast, sharpness
  • Day/Night Switch: Day, night, auto, schedule
  • Wide Dynamic Range (WDR): [Panoramic channel] Digital WDR, [PTZ channel] 120 dB
  • SNR: ＞52dB
  • Image Enhancement: BLC, HLC,3D DNR
  • Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable
  • Ethernet Interface: 1 RJ45 10/100M self-adaptive Ethernet port
  • Basic Event: Motion detection, video tampering alarm, alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart)
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan), audible warning, white light flashing
  • Face Capture: Support detecting up to 5 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face
  • Power: 24 VAC, Max. 60 W, Hi-PoE
  • Dimension: Ø222.3 mm x 387.2 mm (Ø8.75" x 15.2")
  • Weight: Approx. 4.75 kg (10.47 lb.)
  • General Function: mirror, watermark, password protection, IP address filter
  • Protection: IP66 (IEC 60529-2013)
  • Shutter Speed: 1 s to 1/30,000 s
  • Zoom: 32 x optical,16 x digital
  • Slow Shutter: yes
  • HLC: yes
  • 3D DNR: yes
  • Focal Length: [Panoramic channel] 2.8 mm, [PTZ channel] 5.9 to 188.8 mm
  • FOV: [Panoramic channel] horizontal field of view: 180°±10°, vertical field of view: 80°±5° [PTZ channel] horizontal field of view: 60.2° to 2.3°
  • Focus: Auto, semi-auto, manual
  • Zoom Speed: [Panoramic channel] No, [PTZ channel] approx. 5.6 s
  • White Light Distance: Panoramic channel: 30 m
  • Movement Range (Pan): 360°
  • Movement Range (Tilt): -15° to 90°
  • Pan Speed: Pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
  • Tilt Speed: Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
  • Proportional Pan: Yes
  • Presets: 300
  • Preset Freezing: Yes
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
  • Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
  • 3D Positioning: Yes
  • PTZ Status Display: Yes
  • Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, aux output, dome adjust
  • Power-off Memory: Yes
  • Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3
  • Audio Bit Rate: 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3)
  • Audio Sampling Rate: 8 kHz,16 kHz,32 kHz,48 kHz
  • Environment Noise Filtering: yes
  • Defog: yes
  • Image Stabilization: yes
  • Regional Focus: yes
  • Regional Exposure: yes
  • On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
  • Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,1 output (line out), line level, output impedance: 600 Ω
  • Alarm: 2 input(s), 1 output(s)
  • Reset: Yes
  • Smart Tracking: Manual tracking, auto-tracking
  • Smart Linkage: panorama linkage, tracking takeover, track in turn
  • Material: ADC12, Plastic, PC+10%GF
  • Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
  • Demist: Yes

Camera
  • Image Sensor: [Panoramic channel] 1/2.5" Progressive Scan CMOS, [PTZ channel] 1/2.8" Progressive Scan CMOS
  • Max. Resolution: [Panoramic channel] 3632 x 1632, [PTZ channel] 2560 x 1440
  • Min. Illumination: [PTZ channel] Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 lux with IR,[Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
  • Day & Night: IR cut filter

Lens
  • Aperture: [Panoramic channel] F1.0, [PTZ channel] Max. F1.5

Illuminator
  • Supplement Light Range: IR distance: up to 200 m

Video
  • Main Stream: [PTZ channel] 50 Hz: 25 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720), 60 Hz: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)[Panoramic channel] 50 Hz: 25 fps (3632 x 1632, 3680 x 1656), 60 Hz: 30 fps (3632 x 1632, 3680 x 1656)
  • Sub-Stream: [PTZ channel] 50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288), 60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)[Panoramic channel] 50 Hz: 25 fps (1200 x 536, 960 x 432), 60 Hz: 30 fps (1200 x 536, 960 x 432)
  • Third Stream: [PTZ channel] 50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288), 60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)[Panoramic channel] No
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16384 Mbps
  • H.264 Type: Baseline Profile, Main Profile, High Profile
  • H.265 Type: Main Profile
  • Scalable Video Coding (SVC): yes
  • Region of Interest (ROI): fixed region
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, WebSocket, WebSockets, SRTP
  • Simultaneous Live View: 20
  • API: ISUP, SDK, ISAPI, Open Network Video Interface (Profile S, Profile G, Profile T)
  • User/Host: 32
  • Security: Password protection, HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), host authentication (MAC address), IP address filter
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, HikCentral Pro, Hik-Connect
  • Web Browser: IE 11+, Chrome 57+, Firefox 52+, Safari 12+, Edge79.0.309.65+

  • Image Parameters Switch: Yes
  • Image Settings: saturation, brightness, contrast, sharpness
  • Day/Night Switch: Day, night, auto, schedule
  • Wide Dynamic Range (WDR): [Panoramic channel] Digital WDR, [PTZ channel] 120 dB
  • SNR: ＞52dB
  • Image Enhancement: BLC, HLC,3D DNR
  • Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable

Interface
  • Ethernet Interface: 1 RJ45 10/100M self-adaptive Ethernet port

Event
  • Basic Event: Motion detection, video tampering alarm, alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart)
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan), audible warning, white light flashing

Deep Learning Function
  • Face Capture: Support detecting up to 5 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face

General
  • Power: 24 VAC, Max. 60 W, Hi-PoE
  • Dimension: Ø222.3 mm x 387.2 mm (Ø8.75" x 15.2")
  • Weight: Approx. 4.75 kg (10.47 lb.)
  • General Function: mirror, watermark, password protection, IP address filter

Approval
  • Protection: IP66 (IEC 60529-2013)

Other
  • Shutter Speed: 1 s to 1/30,000 s
  • Zoom: 32 x optical,16 x digital
  • Slow Shutter: yes
  • HLC: yes
  • 3D DNR: yes
  • Focal Length: [Panoramic channel] 2.8 mm, [PTZ channel] 5.9 to 188.8 mm
  • FOV: [Panoramic channel] horizontal field of view: 180°±10°, vertical field of view: 80°±5° [PTZ channel] horizontal field of view: 60.2° to 2.3°
  • Focus: Auto, semi-auto, manual
  • Zoom Speed: [Panoramic channel] No, [PTZ channel] approx. 5.6 s
  • White Light Distance: Panoramic channel: 30 m
  • Movement Range (Pan): 360°
  • Movement Range (Tilt): -15° to 90°
  • Pan Speed: Pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
  • Tilt Speed: Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
  • Proportional Pan: Yes
  • Presets: 300
  • Preset Freezing: Yes
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
  • Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
  • 3D Positioning: Yes
  • PTZ Status Display: Yes
  • Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, aux output, dome adjust
  • Power-off Memory: Yes
  • Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3
  • Audio Bit Rate: 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3)
  • Audio Sampling Rate: 8 kHz,16 kHz,32 kHz,48 kHz
  • Environment Noise Filtering: yes
  • Defog: yes
  • Image Stabilization: yes
  • Regional Focus: yes
  • Regional Exposure: yes
  • On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
  • Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,1 output (line out), line level, output impedance: 600 Ω
  • Alarm: 2 input(s), 1 output(s)
  • Reset: Yes
  • Smart Tracking: Manual tracking, auto-tracking
  • Smart Linkage: panorama linkage, tracking takeover, track in turn
  • Material: ADC12, Plastic, PC+10%GF
  • Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
  • Demist: Yes
