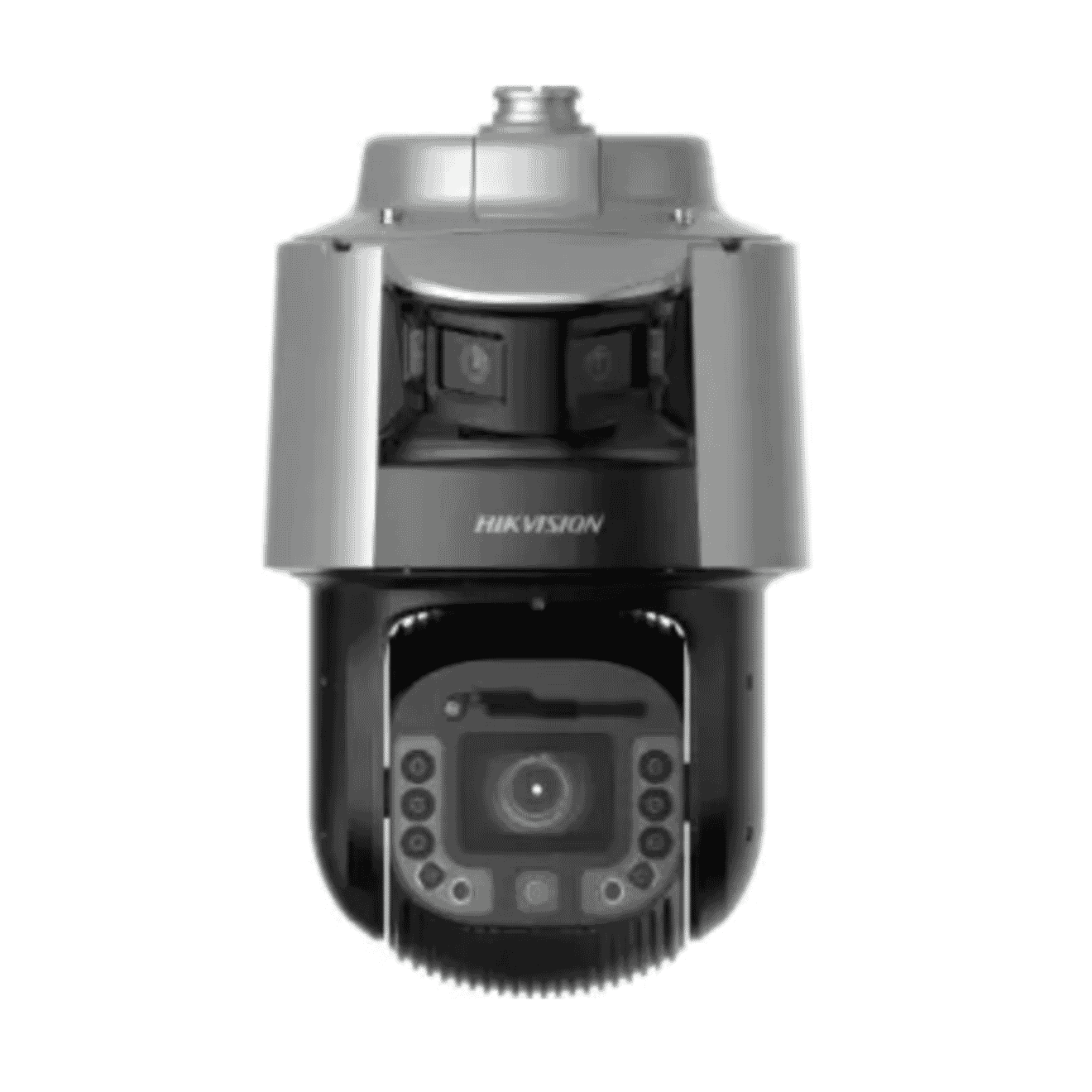

Hikvision DS-2SF8C442MXG1-ELWY/26(F0) Tandemvu 8C Series Panoramic 4MP 42X Darkfighter

Hikvision DS-2SF8C442MXG1-ELWY/26(F0) Tandemvu 8C Series Panoramic 4MP 42X Darkfighter

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2SF8C442MXG1-ELWY/26(F0) Tandemvu 8C Series Panoramic 4MP 42X Darkfighter
Login to View Price

Specifications

  • Image Sensor: [Bullet channel] 1/2.5" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
  • Max. Resolution: [Panoramic channel] 3680 × 1656, [PTZ channel] 2688 × 1520
  • Min. Illumination: [Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light,[PTZ channel] Color: 0.0003 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 lux with IR
  • Day & Night: [Panoramic channel] Day,Night,Schedule,Auto, [PTZ channel] Day,Night,Schedule,Auto
  • Aperture: [Panoramic channel] F1.0, [PTZ channel] F1.3
  • Supplement Light Range: [Panoramic channel] white light: up to 30 m, [PTZ channel] IR: up to 300 m
  • Smart Supplement Light: Yes
  • Main Stream: [Panoramic channel] 50 Hz: 25 fps (3680 × 1656,3632 × 1632), 60 Hz: 30 fps (3680 × 1656,3632 × 1632)[PTZ channel] 50 Hz: 50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)*High frame rate is supported under monitoring mode only.
  • Sub-Stream: [PTZ channel] 50 Hz: 25 fps (704 × 576,640 × 480,352 × 288), 60 Hz: 30 fps (704 × 576,640 × 480,352 × 288),[Panoramic channel] 50 Hz: 25 fps (1200 × 536?960x432), 60 Hz: 30 fps (1200 × 536?960x432)
  • Third Stream: [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[Panoramic channel] No
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline profile,Main profile,High profile
  • H.265 Type: Main profile
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 8 fixed regions for each stream
  • Protocols: IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
  • Simultaneous Live View: Up to 20 channels
  • API: ONVIF (Profile S, Profile G, Profile T, Profile M),ISUP,ISAPI,SDK,OTAP
  • User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
  • Security: Password protection,complicated password,HTTPS encryption,IP address filter,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2)
  • Network Storage: NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
  • Client: iVMS-4200,HikCentral Pro,Hik-Connect
  • Web Browser: Plug-in required live view: IE8+Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+Local service: Chrome 41.0+, Firefox 30.0+
  • Image Parameters Switch: Yes
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Day/Night Switch: Day,night,auto,schedule
  • Wide Dynamic Range (WDR): [Bullet channel] 120 dB, [PTZ channel] 150 dB
  • SNR: = 52 dB
  • Image Enhancement: HLC,3D DNR
  • Privacy Mask: [Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
  • Ethernet Interface: 1 RJ45 100M self-adaptive Ethernet port
  • Basic Event: [PTZ channel & panoramic channel] alarm input and output, exception,[PTZ channel] motion detection, video tampering alarm
  • Smart Event: [Panoramic channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
  • Linkage: [Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
  • Face Capture: Detects up to 30 faces simultaneously,Uploads face with background and closed-up face pictures
  • Power: 36V, 2.5 A, PoE(802.3 bt), 42.5 to 57 V, 1.76 A
  • Dimension: Ø290 mm × 453.2 mm (Ø11.42" × 17.84")
  • Weight: Approx. 10.5 kg (23.15 lb.)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: mirror,password protection
  • EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7)
  • Safety: CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
  • Environment: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
  • Protection: IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection,IK10 (IEC 62262:2002, excluding glass window)
  • Shutter Speed: 1 s to 1/30000 s
  • Slow Shutter: Yes
  • Zoom: [PTZ channel] 42 × optical, 16 × digital
  • FOV: [Panoramic channel] horizontal field of view: 190° ± 5°, vertical field of view: 80°±5°, [PTZ channel] horizontal field of view: 59° to 2°, vertical field of view: 34.2° to 11°, diagonal field of view: 67.1° to 2.3°
  • Focus: Auto,semi-auto,manual
  • Zoom Speed: [Panoramic channel] No, [PTZ channel] approx. 5.6 s
  • Focal Length: [Panoramic channel] 2.8 mm, [PTZ channel] 6 to 252 mm
  • Movement Range (Pan): 360° endless
  • Movement Range (Tilt): [Panoramic channel] 12° to 24°, [PTZ channel] -20° to 90°
  • Pan Speed: [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
  • Tilt Speed: [PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s,[Panoramic channel] tilt speed configurable
  • Proportional Pan: [Panoramic channel] No, [PTZ channel] Yes
  • Presets: 300
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
  • Power-off Memory: Yes
  • Park Action: Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
  • 3D Positioning: Yes
  • PTZ Status Display: Yes
  • Preset Freezing: Yes
  • Scheduled Task: Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
  • Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
  • Audio Bit Rate: 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),64 Kbps (G.711),16 Kbps (G.726),16 Kbps (G.722.1),8-48 Kbps (PCM)
  • Audio Sampling Rate: 8 kHz,16 kHz,32 kHz,48 kHz
  • Environment Noise Filtering: Yes
  • Defog: Optical defog
  • Image Stabilization: EIS (Built-in gyroscope to improve EIS performance)
  • Regional Exposure: Yes
  • Regional Focus: [Panoramic channel] No, [PTZ channel] Yes
  • Satellite Positioning: No
  • Gyroscope: Yes
  • Compass: No
  • Built-in Speaker: 1 built-in speaker
  • On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB .
  • Alarm: 7 input(s), 2 output(s)
  • Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KO ± 10%,1 output (line out), line level, output impedance: 600 O
  • RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Reset: Yes
  • Face Comparison: Up to 10 face libraries. 30000 faces for each library. 150000 faces in total,Recognizes face identity via face modeling, grading and comparing to those in face library,Supports face library encryption
  • Road Traffic and Vehicle Detection: Smart Function:Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.Support vehicle and non-vehicle countingBlocklist and allowlist: up to 10,000 recordsLPR Countries/Regions:4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regionsAccuracy (Under recommended installation and lighting conditions):License plate recognition rate =98%Capture rate =99%Driving direction accuracy rate =98%Vehicle Capture Speed:Front installation in checkpoint scenario: up to 120 km/hSide installation: up to 80 km/hCapture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
  • Multi-Target-Type Detection: Supports simultaneous detection and capture of human body, face and vehicle,Gets 7 face features, 14 human body features and 8 vehicle features
  • Perimeter Protection: Line crossing detection, region entrance detection, intrusion detection, region exiting detection
  • Smart Tracking: Manual tracking, auto-tracking 3.0
  • Smart Linkage: Manual tracking, tracking takeover, linked tracking capture
  • Object Tracking: Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
  • Operating Condition: -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
  • Wiper: Yes
  • Demist: Yes
  • Material: ADC12
  • Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)

Camera
  • Image Sensor: [Bullet channel] 1/2.5" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
  • Max. Resolution: [Panoramic channel] 3680 × 1656, [PTZ channel] 2688 × 1520
  • Min. Illumination: [Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light,[PTZ channel] Color: 0.0003 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 lux with IR
  • Day & Night: [Panoramic channel] Day,Night,Schedule,Auto, [PTZ channel] Day,Night,Schedule,Auto

Lens
  • Aperture: [Panoramic channel] F1.0, [PTZ channel] F1.3

Illuminator
  • Supplement Light Range: [Panoramic channel] white light: up to 30 m, [PTZ channel] IR: up to 300 m
  • Smart Supplement Light: Yes

Video
  • Main Stream: [Panoramic channel] 50 Hz: 25 fps (3680 × 1656,3632 × 1632), 60 Hz: 30 fps (3680 × 1656,3632 × 1632)[PTZ channel] 50 Hz: 50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)*High frame rate is supported under monitoring mode only.
  • Sub-Stream: [PTZ channel] 50 Hz: 25 fps (704 × 576,640 × 480,352 × 288), 60 Hz: 30 fps (704 × 576,640 × 480,352 × 288),[Panoramic channel] 50 Hz: 25 fps (1200 × 536?960x432), 60 Hz: 30 fps (1200 × 536?960x432)
  • Third Stream: [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[Panoramic channel] No
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline profile,Main profile,High profile
  • H.265 Type: Main profile
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 8 fixed regions for each stream
  • Protocols: IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
  • Simultaneous Live View: Up to 20 channels
  • API: ONVIF (Profile S, Profile G, Profile T, Profile M),ISUP,ISAPI,SDK,OTAP
  • User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
  • Security: Password protection,complicated password,HTTPS encryption,IP address filter,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2)
  • Network Storage: NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
  • Client: iVMS-4200,HikCentral Pro,Hik-Connect
  • Web Browser: Plug-in required live view: IE8+Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+Local service: Chrome 41.0+, Firefox 30.0+

  • Image Parameters Switch: Yes
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Day/Night Switch: Day,night,auto,schedule
  • Wide Dynamic Range (WDR): [Bullet channel] 120 dB, [PTZ channel] 150 dB
  • SNR: = 52 dB
  • Image Enhancement: HLC,3D DNR
  • Privacy Mask: [Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

Interface
  • Ethernet Interface: 1 RJ45 100M self-adaptive Ethernet port

Event
  • Basic Event: [PTZ channel & panoramic channel] alarm input and output, exception,[PTZ channel] motion detection, video tampering alarm
  • Smart Event: [Panoramic channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
  • Linkage: [Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function
  • Face Capture: Detects up to 30 faces simultaneously,Uploads face with background and closed-up face pictures

General
  • Power: 36V, 2.5 A, PoE(802.3 bt), 42.5 to 57 V, 1.76 A
  • Dimension: Ø290 mm × 453.2 mm (Ø11.42" × 17.84")
  • Weight: Approx. 10.5 kg (23.15 lb.)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: mirror,password protection

Approval
  • EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7)
  • Safety: CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
  • Environment: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
  • Protection: IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection,IK10 (IEC 62262:2002, excluding glass window)

Other
  • Shutter Speed: 1 s to 1/30000 s
  • Slow Shutter: Yes
  • Zoom: [PTZ channel] 42 × optical, 16 × digital
  • FOV: [Panoramic channel] horizontal field of view: 190° ± 5°, vertical field of view: 80°±5°, [PTZ channel] horizontal field of view: 59° to 2°, vertical field of view: 34.2° to 11°, diagonal field of view: 67.1° to 2.3°
  • Focus: Auto,semi-auto,manual
  • Zoom Speed: [Panoramic channel] No, [PTZ channel] approx. 5.6 s
  • Focal Length: [Panoramic channel] 2.8 mm, [PTZ channel] 6 to 252 mm
  • Movement Range (Pan): 360° endless
  • Movement Range (Tilt): [Panoramic channel] 12° to 24°, [PTZ channel] -20° to 90°
  • Pan Speed: [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
  • Tilt Speed: [PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s,[Panoramic channel] tilt speed configurable
  • Proportional Pan: [Panoramic channel] No, [PTZ channel] Yes
  • Presets: 300
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
  • Power-off Memory: Yes
  • Park Action: Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
  • 3D Positioning: Yes
  • PTZ Status Display: Yes
  • Preset Freezing: Yes
  • Scheduled Task: Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
  • Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
  • Audio Bit Rate: 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),64 Kbps (G.711),16 Kbps (G.726),16 Kbps (G.722.1),8-48 Kbps (PCM)
  • Audio Sampling Rate: 8 kHz,16 kHz,32 kHz,48 kHz
  • Environment Noise Filtering: Yes
  • Defog: Optical defog
  • Image Stabilization: EIS (Built-in gyroscope to improve EIS performance)
  • Regional Exposure: Yes
  • Regional Focus: [Panoramic channel] No, [PTZ channel] Yes
  • Satellite Positioning: No
  • Gyroscope: Yes
  • Compass: No
  • Built-in Speaker: 1 built-in speaker
  • On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB .
  • Alarm: 7 input(s), 2 output(s)
  • Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KO ± 10%,1 output (line out), line level, output impedance: 600 O
  • RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Reset: Yes
  • Face Comparison: Up to 10 face libraries. 30000 faces for each library. 150000 faces in total,Recognizes face identity via face modeling, grading and comparing to those in face library,Supports face library encryption
  • Road Traffic and Vehicle Detection: Smart Function:Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.Support vehicle and non-vehicle countingBlocklist and allowlist: up to 10,000 recordsLPR Countries/Regions:4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regionsAccuracy (Under recommended installation and lighting conditions):License plate recognition rate =98%Capture rate =99%Driving direction accuracy rate =98%Vehicle Capture Speed:Front installation in checkpoint scenario: up to 120 km/hSide installation: up to 80 km/hCapture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
  • Multi-Target-Type Detection: Supports simultaneous detection and capture of human body, face and vehicle,Gets 7 face features, 14 human body features and 8 vehicle features
  • Perimeter Protection: Line crossing detection, region entrance detection, intrusion detection, region exiting detection
  • Smart Tracking: Manual tracking, auto-tracking 3.0
  • Smart Linkage: Manual tracking, tracking takeover, linked tracking capture
  • Object Tracking: Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
  • Operating Condition: -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
  • Wiper: Yes
  • Demist: Yes
  • Material: ADC12
  • Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
