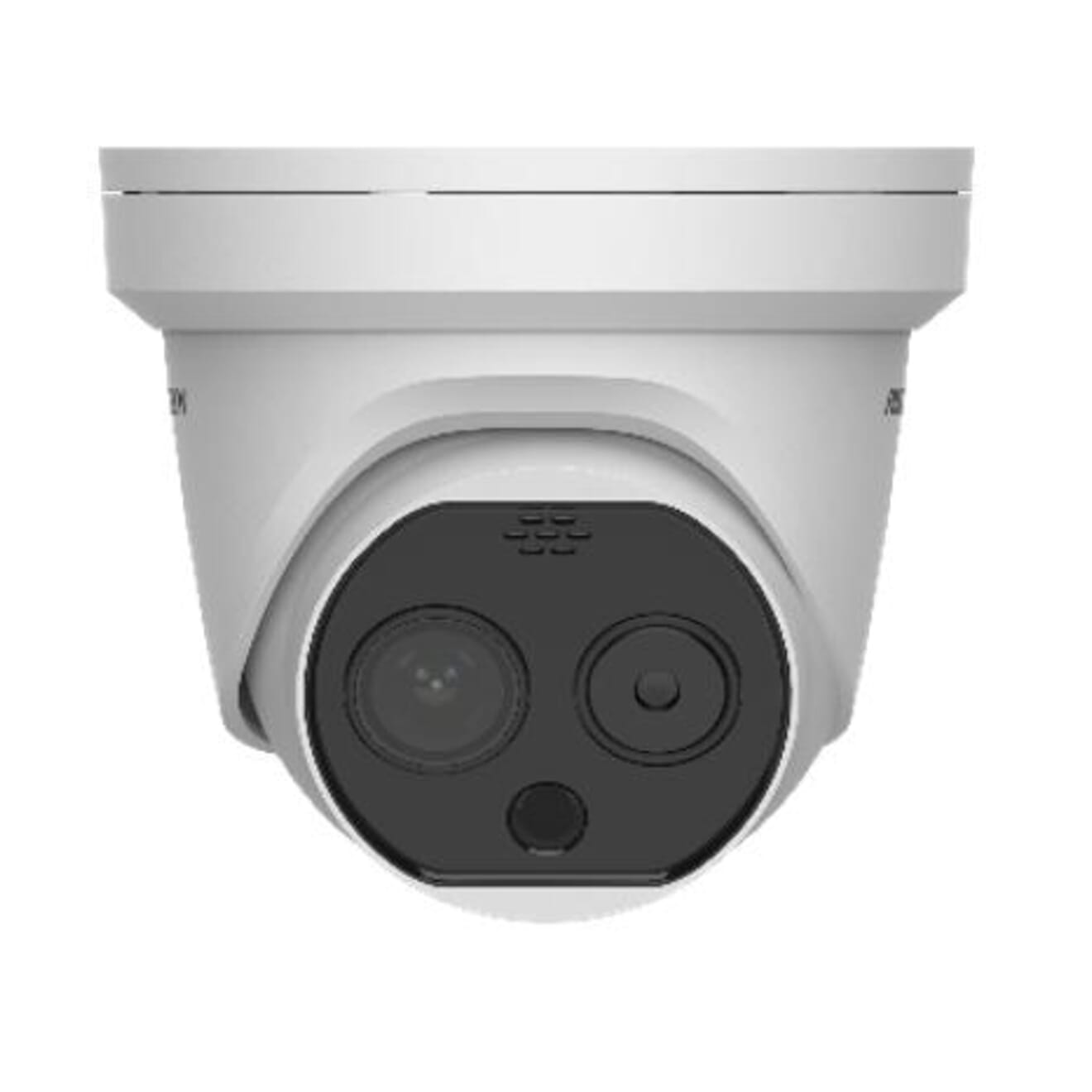

Hikvision DS-2TB1217-3/QA TEMPERATURE SCREENING THERMOGRAPHIC CAMERA

Hikvision DS-2TB1217-3/QA TEMPERATURE SCREENING THERMOGRAPHIC CAMERA

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 2MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2TB1217-3/QA TEMPERATURE SCREENING THERMOGRAPHIC CAMERA
Login to View Price

Specifications

  • Image Sensor: 1/2.7" Progressive Scan CMOS
  • Min. Illumination: Color: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
  • Aperture: F1.1
  • Main Stream: Thermal:25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);Optical:60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Video Compression: H.264 (Baseline/Main/High Profile) /MJPEG/H.265
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Simultaneous Live View: Up to 20 channels
  • API: Open-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform, open network video interface
  • Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • Client: iVMS-4200, Hik-Connect
  • Web Browser: Plug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
  • Power: PoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.5A
  • Dimension: 138.3 mm × 138.3 mm × 123.1 mm (5.45 " × 5.45" × 4.85 ")
  • Weight: 940 g (2.07 lb)
  • Resolution: 2688 × 1520, 4 MP
  • Pixel Interval: 17 µm
  • Response Waveband: 8 µm to 14 µm
  • NETD: Less than 40 mK (@ 25 °C,F#=1.1)
  • Focal Length: 4 mm
  • IFOV: 5.48 mrad
  • Field of View: 84° × 44.8°(H × V)
  • Min. Focusing Distance: 0.2 m
  • Shutter Speed: 1s to 1/100,000s
  • White Balance: Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
  • Day & Night Mode: IR cut filter with auto switch
  • WDR: 120 dB
  • Picture in Picture: Display partial image of thermal channel on the full screen of optical channel
  • IR Distance: Up to 15 m
  • IR Intensity and Angle: Automatically adjusted
  • Temperature Range: 30 °C to 45 °C (86 °F to 113 °F)
  • Temperature Accuracy: ± 0.5 °C
  • Sub Stream: Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical:50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical:60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
  • Audio Compression: G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • Alarm Input: 1-ch inputs (0-5 VDC)
  • Alarm Output: 1-ch relay outputs, alarm response actions configurable
  • Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input: 1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KO ± 10%
  • Audio Output: Linear Level; Impedance: 600 O
  • Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface
  • On-board Storage: Built-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording
  • Web Client Language: 32 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
  • Power Consumption: PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W12 VDC ± 20%: 0.5 A, max. 6 W
  • Work Temperature/Humidity: From 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
  • Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Camera
  • Image Sensor: 1/2.7" Progressive Scan CMOS
  • Min. Illumination: Color: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)

Lens
  • Aperture: F1.1

Video
  • Main Stream: Thermal:25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);Optical:60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Video Compression: H.264 (Baseline/Main/High Profile) /MJPEG/H.265
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Simultaneous Live View: Up to 20 channels
  • API: Open-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform, open network video interface
  • Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • Client: iVMS-4200, Hik-Connect
  • Web Browser: Plug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51

General
  • Power: PoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.5A
  • Dimension: 138.3 mm × 138.3 mm × 123.1 mm (5.45 " × 5.45" × 4.85 ")
  • Weight: 940 g (2.07 lb)

Other
  • Resolution: 2688 × 1520, 4 MP
  • Pixel Interval: 17 µm
  • Response Waveband: 8 µm to 14 µm
  • NETD: Less than 40 mK (@ 25 °C,F#=1.1)
  • Focal Length: 4 mm
  • IFOV: 5.48 mrad
  • Field of View: 84° × 44.8°(H × V)
  • Min. Focusing Distance: 0.2 m
  • Shutter Speed: 1s to 1/100,000s
  • White Balance: Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
  • Day & Night Mode: IR cut filter with auto switch
  • WDR: 120 dB
  • Picture in Picture: Display partial image of thermal channel on the full screen of optical channel
  • IR Distance: Up to 15 m
  • IR Intensity and Angle: Automatically adjusted
  • Temperature Range: 30 °C to 45 °C (86 °F to 113 °F)
  • Temperature Accuracy: ± 0.5 °C
  • Sub Stream: Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical:50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical:60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
  • Audio Compression: G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • Alarm Input: 1-ch inputs (0-5 VDC)
  • Alarm Output: 1-ch relay outputs, alarm response actions configurable
  • Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input: 1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KO ± 10%
  • Audio Output: Linear Level; Impedance: 600 O
  • Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface
  • On-board Storage: Built-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording
  • Web Client Language: 32 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
  • Power Consumption: PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W12 VDC ± 20%: 0.5 A, max. 6 W
  • Work Temperature/Humidity: From 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
  • Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
