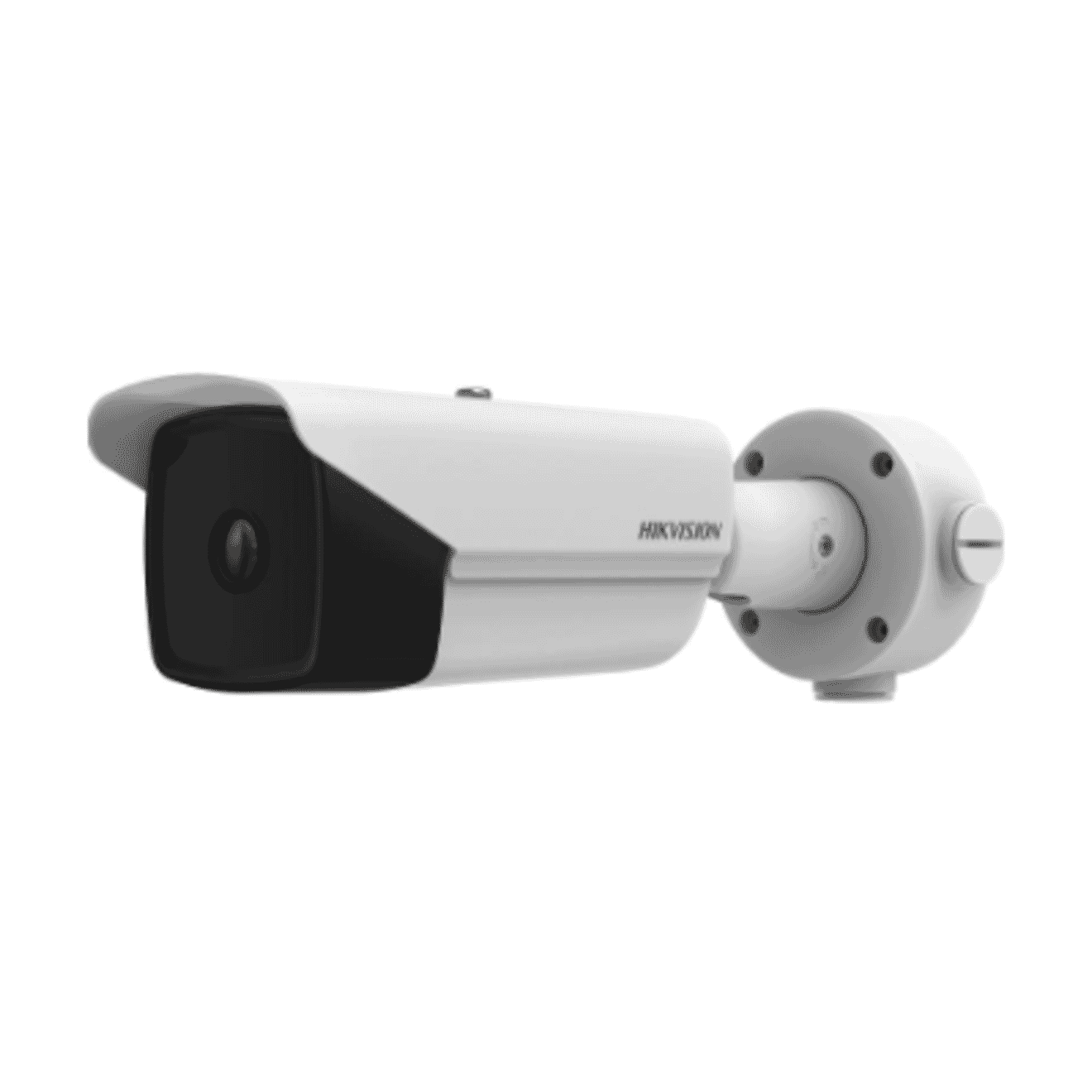

Hikvision DS-2TD2137T-4/QY 384 × 288 4.4mm Thermography Bullet Camera

Hikvision DS-2TD2137T-4/QY 384 × 288 4.4mm Thermography Bullet Camera

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 2MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2TD2137T-4/QY 384 × 288 4.4mm Thermography Bullet Camera
Login to View Price

Specifications

  • Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
  • Aperture: F1.0
  • Main Stream: 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288, 384 × 288)
  • Third Stream: 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288, 384 × 288)
  • Video Compression: Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEGThird Stream: H.265/H.264/MJPEG
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,SSL
  • Simultaneous Live View: Up to 20 channels
  • API: ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
  • Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect
  • Weight: Approx. 1.77 kg (3.90 lb)
  • Resolution: 384 x 288
  • Pixel Pitch: 17 µm
  • Spectral Range: 8 µm to 14 µm
  • NETD: = 35 mK (@25° C,F# = 1.0)
  • Focal Length: 4.4 mm
  • IFOV: 3.86 mrad
  • Field of View: 90° × 65.3° (H × V)
  • Min. Focusing Distance: 0.3 m
  • Digital Zoom: ×2, ×4, ×8
  • Target Coloration: Yes. Supported in white hot and black hot mode.
  • VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
  • Temperature Range: -20°C to 550°C (-4°F to 1022°F);
  • Temperature Accuracy: Max (±2°C, ±2 %)
  • Sub-stream: 50 Hz: 25 fps (704 × 576, 352 × 288, 384 × 288)
  • Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
  • User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
  • Alarm Input: 2, alarm input (0-5 VDC)
  • Alarm Output: 2, alarm output (alarm response actions configurable)
  • Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input: 1, 3.5 mm Mic in/Line in interfaceLine input: 2 - 2.4 V [p-p], output impedance: 1 KO ± 10%
  • Audio Output: Linear level, impedance: 600 O
  • Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)
  • Analog Output: 1.0V [p-p]/75O, PAL/NTSC/BNC
  • Menu Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply: 24 VAC ± 25%, 12 VDC ± 25%, two-core terminal blockPoE (802.3af, class 3)
  • Power Consumption: 24 VAC ± 25%: 0.13 A to 0.22 A, max 5 W12 VDC ± 25%: 0.37 A to 0.61 A, max 5 W24VDC: 0.21A, max 5 WPoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A, max. 5.5 W
  • Working Temperature/Humidity: Temperature: -40°C to 65°C (-40°F to 149°F)Humidity: 95% or less
  • Protection Level: IP67 StandardTVS 4000V lightning protection, surge protection, voltage transient protectionIK10-rated housing
  • Dimensions: 351.3 mm × 113.5 mm × 115.2 mm (13.83" × 4.47" × 4.53")
  • VCA Range for Humans: 28 m
  • VCA Range for Vehicles: 84 m

Camera
  • Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays

Lens
  • Aperture: F1.0

Video
  • Main Stream: 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288, 384 × 288)
  • Third Stream: 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288, 384 × 288)
  • Video Compression: Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEGThird Stream: H.265/H.264/MJPEG
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,SSL
  • Simultaneous Live View: Up to 20 channels
  • API: ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
  • Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect

General
  • Weight: Approx. 1.77 kg (3.90 lb)

Other
  • Resolution: 384 x 288
  • Pixel Pitch: 17 µm
  • Spectral Range: 8 µm to 14 µm
  • NETD: = 35 mK (@25° C,F# = 1.0)
  • Focal Length: 4.4 mm
  • IFOV: 3.86 mrad
  • Field of View: 90° × 65.3° (H × V)
  • Min. Focusing Distance: 0.3 m
  • Digital Zoom: ×2, ×4, ×8
  • Target Coloration: Yes. Supported in white hot and black hot mode.
  • VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
  • Temperature Range: -20°C to 550°C (-4°F to 1022°F);
  • Temperature Accuracy: Max (±2°C, ±2 %)
  • Sub-stream: 50 Hz: 25 fps (704 × 576, 352 × 288, 384 × 288)
  • Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
  • User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
  • Alarm Input: 2, alarm input (0-5 VDC)
  • Alarm Output: 2, alarm output (alarm response actions configurable)
  • Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input: 1, 3.5 mm Mic in/Line in interfaceLine input: 2 - 2.4 V [p-p], output impedance: 1 KO ± 10%
  • Audio Output: Linear level, impedance: 600 O
  • Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)
  • Analog Output: 1.0V [p-p]/75O, PAL/NTSC/BNC
  • Menu Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply: 24 VAC ± 25%, 12 VDC ± 25%, two-core terminal blockPoE (802.3af, class 3)
  • Power Consumption: 24 VAC ± 25%: 0.13 A to 0.22 A, max 5 W12 VDC ± 25%: 0.37 A to 0.61 A, max 5 W24VDC: 0.21A, max 5 WPoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A, max. 5.5 W
  • Working Temperature/Humidity: Temperature: -40°C to 65°C (-40°F to 149°F)Humidity: 95% or less
  • Protection Level: IP67 StandardTVS 4000V lightning protection, surge protection, voltage transient protectionIK10-rated housing
  • Dimensions: 351.3 mm × 113.5 mm × 115.2 mm (13.83" × 4.47" × 4.53")
  • VCA Range for Humans: 28 m
  • VCA Range for Vehicles: 84 m
