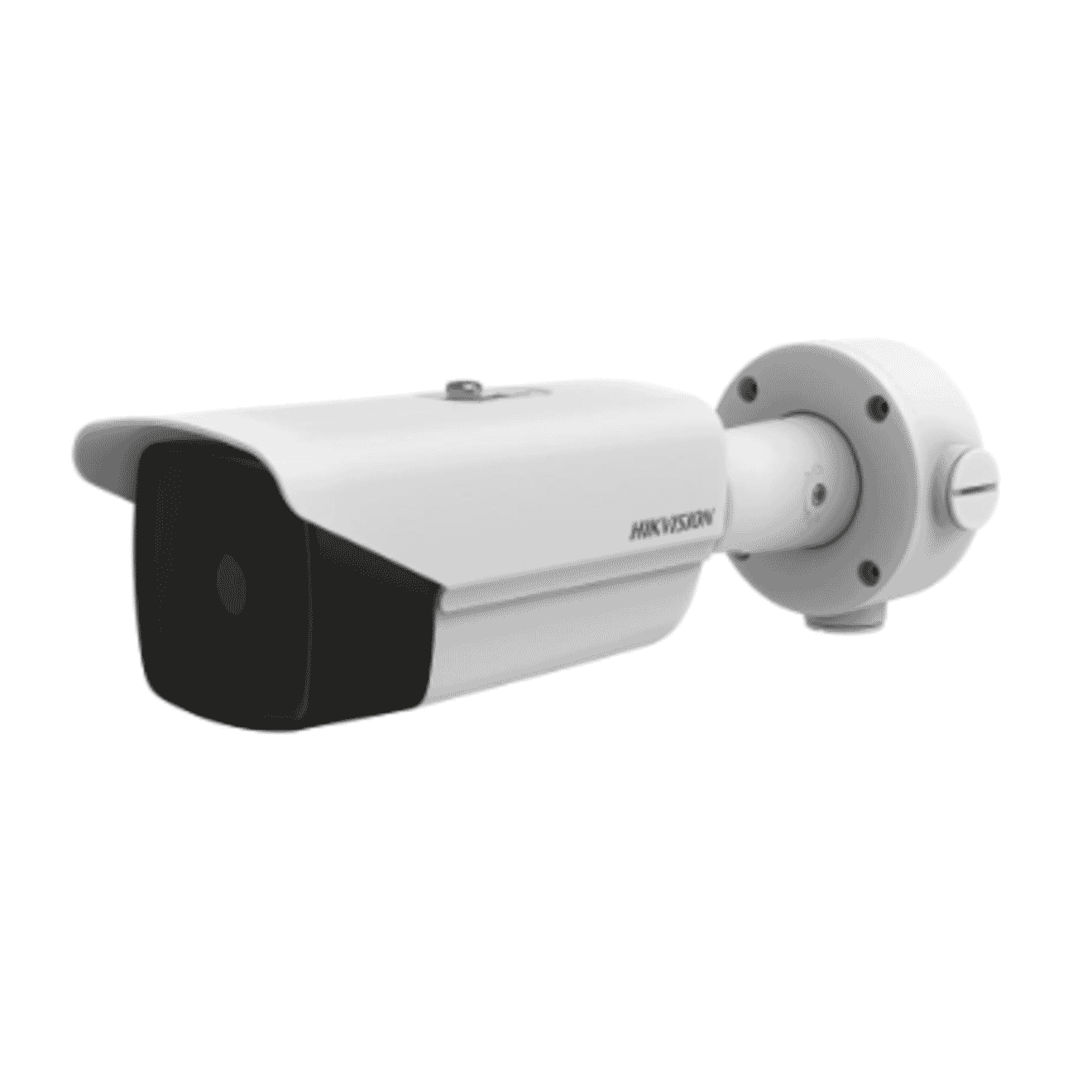

Hikvision DS-2TD2138-25/QY, 384×288, 25 mm Bi-spectrum Bullet Camera
Hikvision DS-2TD2138-25/QY, 384×288, 25 mm Bi-spectrum Bullet Camera
- IP CCTV
- 2MP
- Fixed Lens
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-2TD2138-25/QY, 384×288, 25 mm Bi-spectrum Bullet Camera
Specifications
- Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
- Aperture: F1.0
- Main Stream: 25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288)
- Third Stream: 25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288)
- Video Compression: Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEGThird Stream: H.265/H.264/MJPEG
- Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, SRTP, SFTP
- Simultaneous Live View: Up to 20 channels
- API: ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
- Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
- Network Storage: MicroSD/SDHC/SDXC card (up to 256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Client: iVMS-4200, Hik-Connect
- Web Browser: Live view (plug-in allowed): Internet Explorer 11Live view (plug-in free): Chrome 57.0 +, Firefox 52.0 +Local service: Chrome 57.0 +, Firefox 52.0 +
- Weight: Approx. 1.77 kg (3.90 lb)
- Resolution: 384 × 288
- Pixel Pitch: 12 µm
- Spectral Range: 8 µm to 14 µm
- NETD: < 35 mK (25°C, F1.0)
- Focal Length: 25 mm
- IFOV: 0.48 mrad
- Field of View: 11.0° × 8.0° (H × V)
- Min. Focusing Distance: 13 m
- Digital Zoom: 2×, 4×, 8×
- Target Coloration: Yes. Supported in white hot and black hot mode.
- VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total
- Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature Range: -20°C to 150°C (-4°F to 302°F)
- Temperature Accuracy: ± 8°C (± 14.4°F)
- Sub-stream: 25 fps (704 × 576, 640 × 512, 352 × 288)
- Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
- Analog Output: 1.0V [p-p]/75O, PAL/NTSC/BNC
- Alarm Input: 2, alarm input (0 to 5 VDC)
- Alarm Output: 2, alarm output (alarm response actions configurable)
- Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
- Audio Input: 1, 3.5 mm Mic in/Line in interfaceLine input: 2 to 2.4 V [p-p], output impedance: 1 KO ± 10%
- Audio Output: Linear level, impedance: 600 O
- Communication Interface: 1, RJ45 10 M/100 M self-adaptive Ethernet interface1, RS-485 interface (half duplex)
- Web Client Language: 32 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply: 24 VAC ± 25%, 12 VDC ± 25%, two-core terminal blockPoE (802.3af, class 3)
- Power Consumption: 24 VAC ± 25%: 0.13 A to 0.22 A, Max. 5 W12 VDC ± 25%: 0.37 A to 0.61 A, Max. 5 WPoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A, Max. 5.5 W
- Working Temperature/Humidity: Temperature: -40 °C to 65 °C (-40 °F to 149 °F)Humidity: 90% or less
- Protection Level: IP67 StandardTVS 6000V lightning protection, surge protection, voltage transient protection
- Dimensions: 351.3 mm × 113.5 mm × 115.2 mm (13.83" × 4.47" × 4.53")
