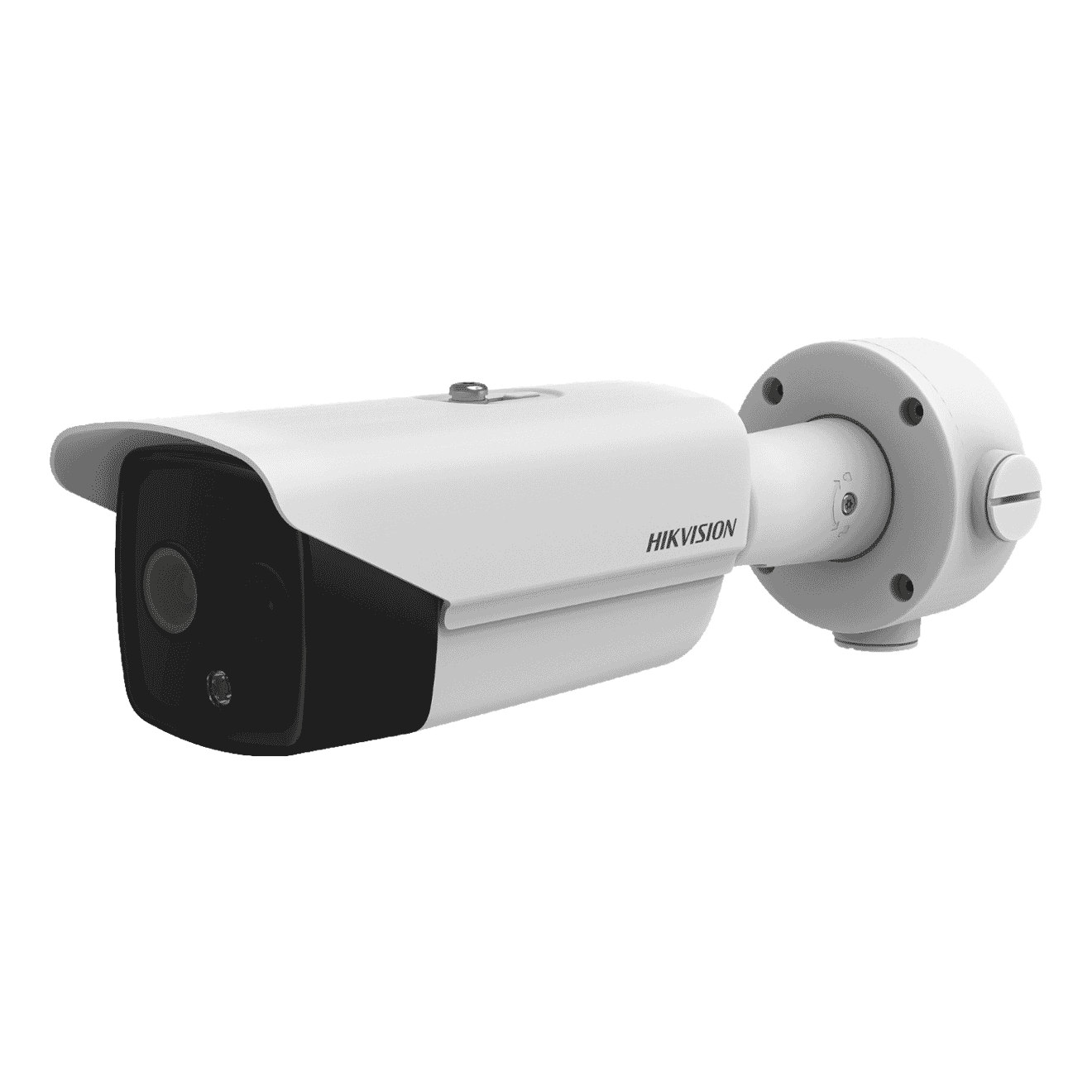

Hikvision DS-2TD2628-10/QA, 256×192, 10 mm Bi-spectrum Bullet Camera
Hikvision DS-2TD2628-10/QA, 256×192, 10 mm Bi-spectrum Bullet Camera
- IP CCTV
- 2MP
- Fixed Lens
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-2TD2628-10/QA, 256×192, 10 mm Bi-spectrum Bullet Camera
Specifications
- Image Sensor: 1/2.7" Progressive Scan CMOS
- Min. Illumination: 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
- Aperture: F1.0
- Main Stream: Thermal:25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Video Compression: Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG
- Protocols: IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,TLS
- Simultaneous Live View: Up to 20 channels
- API: ISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
- Security: User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Client: iVMS-4200, Hik-Connect
- Web Browser: Live view (plug-in allowed) : Internet Explorer 11Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +Local service : Chrome 57.0 +, Firefox 52.0 +
- Weight: 1550 g (3.41 lb)
- General Function: Fire detection, smoking detection, sun-reflection filter
- Resolution: 2688 × 1520
- Pixel Pitch: 12 µm
- Spectral Range: 8 µm to 14 µm
- NETD: < 40 mK (25°C, F1.0)
- Focal Length: 8.0 mm
- IFOV: 1.24 mrad
- Field of View: 39.4° × 22.1° (H × V)
- Min. Focusing Distance: 1.5 m
- Digital Zoom: ×2, ×4
- Shutter Speed: 1 s to 1/100,000 s
- Aperture (Range): F1.6
- WDR: 120 dB
- Target Coloration: Yes. Supported in white hot and black hot mode.
- IR Distance: Up to 30 m
- IR Intensity and Angle: Automatically adjusted
- White Light Range: Up to 30 m
- Visual Alarm: Yes. White light alarm with adjustable flashing frequencies
- Audio alarm: Yes, for two types of audible alarm (VCA and Temperature Exception)2 preset voice alerts (one for each)6 importable user-defined voice alerts (6 options shared in the two types)
- VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature Range: -20°C to 150°C (-4°F to 302°F)
- Temperature Accuracy: ± 8°C (± 14.4°F)
- Sub-stream: Thermal:25 fps (704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (704 × 576, 352 × 288)60 Hz: 30 fps (704 × 480, 352 × 240)
- Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
- Alarm Input: 2, alarm input (0-5 VDC)
- Alarm Output: 2, alarm output (alarm response actions configurable)
- Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
- Audio Input: 1, 3.5 mm Mic in/Line in interfaceLine input: 2 to 2.4 V [p-p], output impedance: 1 KO ± 10%
- Audio Output: Linear level, impedance: 600 O
- Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)
- Analog Output: 1.0V [p-p]/75O, PAL/NTSC/BNC
- Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply: 24 VAC ± 25%, 12 VDC ± 25%, two-core terminal blockPoE (802.3af, class 3)
- Power Consumption: 24 VAC ± 25%: 0.8 A, Max.8.5 W12 VDC ± 25%: 0.7 A, Max.8.5 WPoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
- Working Temperature/Humidity: Temperature: -40°C to 65°C (-40°F to 149°F)Humidity: 95% or less
- Protection Level: IP67 StandardTVS 6000V lightning protection, surge protection, voltage transient protectionIK10-rated housing
- Dimensions: 321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
- VCA Range for Humans: 80 m
- VCA Range for Vehicles: 240 m
