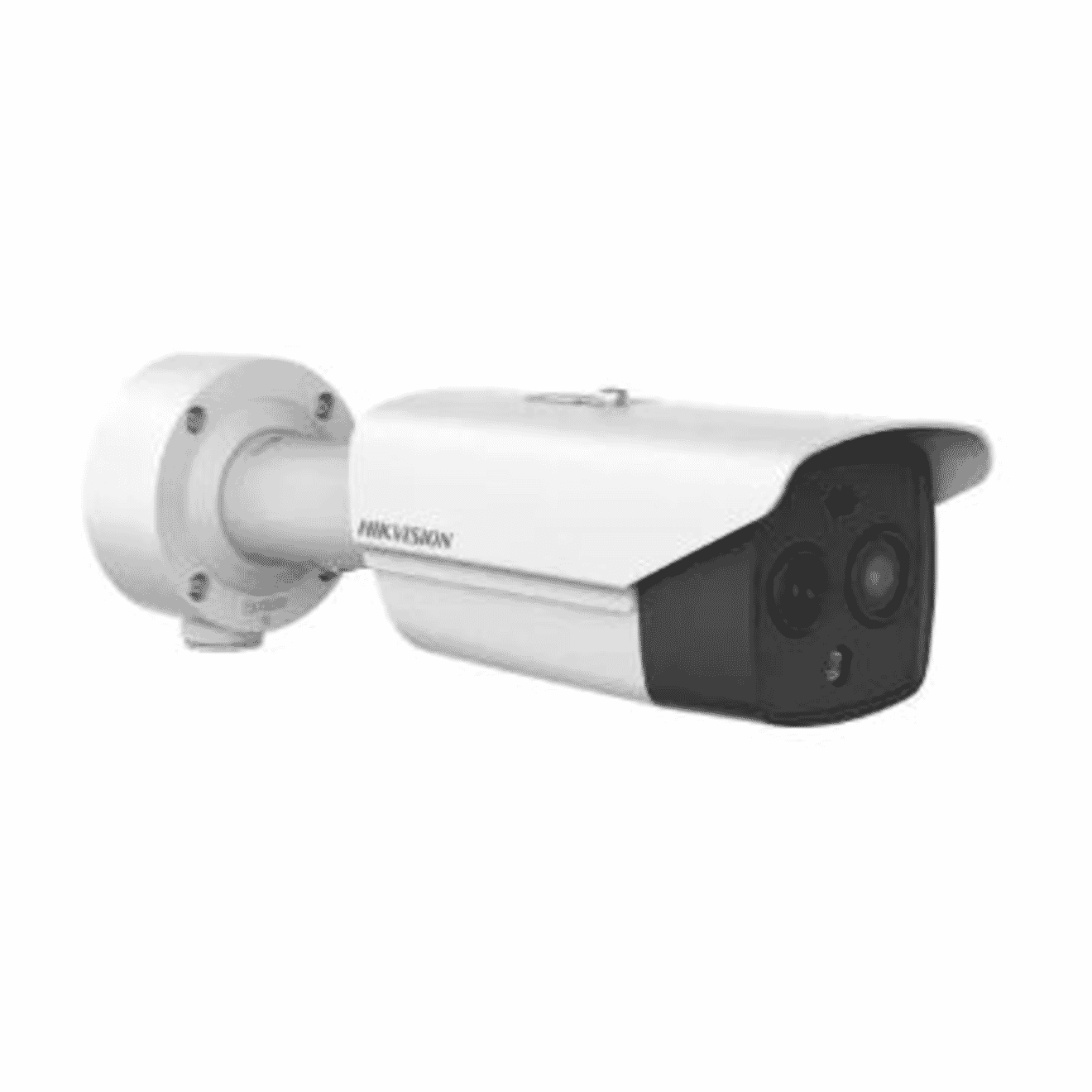

Hikvision DS-2TD2628T-3/QA, 256×192, 3 mm Bi-spectrum Thermography Bullet Camera

Hikvision DS-2TD2628T-3/QA, 256×192, 3 mm Bi-spectrum Thermography Bullet Camera

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 2MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2TD2628T-3/QA, 256×192, 3 mm Bi-spectrum Thermography Bullet Camera
Login to View Price

Specifications

  • Image Sensor: 1/2.7" Progressive Scan CMOS
  • Min. Illumination: 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
  • Aperture: F 1.6
  • Main Stream: Thermal:25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Video Compression: Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTPP,TLS
  • Simultaneous Live View: Up to 20 channels
  • API: ISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T), OTAP
  • Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect
  • Weight: 1550 g (3.41 lb)
  • General Function: Fire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter
  • EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 7)KC (KSC9832: 2019; KSC9835: 2019)FCC (ANSI C63.4;FCC Part15 sub B)
  • Safety: CB: IEC 62368-1: 2014+A11;CE-LVD: EN 62368-1: 2014/A11: 2017;UL: (CSA C22.2 No. 62368-1-14, 2nd Ed.)
  • Environment: CE-RoHS:2011/65/EU,WEEE: 2012/19/EU,Reach:Regulation(EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013IK10: IEC 62262-2002
  • Resolution: 2688 × 1520
  • Pixel Pitch: 12 µm
  • Spectral Range: 8 µm to 14 µm
  • NETD: = 40 mK (@25° C,F# = 1.0)
  • Focal Length: 4.3 mm
  • IFOV: 3.33 mrad
  • Field of View: 84.0° ×43.1° (H × V)
  • Min. Focusing Distance: 0.5 m
  • Digital Zoom: ×2, ×4
  • Shutter Speed: 1 s to 1/100,000 s
  • White Balance: MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
  • Day & Night Mode: IR Cut Filter with Auto Switch
  • WDR: 120 dB
  • Bi-spectrum Image Fusion: Display the details of optical channel on thermal channel
  • Target Coloration: Yes. Supported in white hot and black hot mode.
  • IR Distance: Up to 30 m
  • IR Intensity and Angle: Automatically adjusted
  • White Light Range: Up to 30 m
  • Visual Alarm: Yes. White light alarm with adjustable flashing frequencies
  • Audio alarm: Yes, for three types of audible alarm (VCA and Temperature Exception)3 preset voice alerts (one for each)6 importable user-defined voice alerts (6 options shared in the two types)
  • VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
  • Temperature Range: -20°C to 550°C (-4°F to 1022°F);
  • Temperature Accuracy: Max (±2°C, ±2 %)
  • Sub-stream: Thermal:25 fps (704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (704 × 576, 352 × 288)60 Hz: 30 fps (704 × 480, 352 × 240)
  • Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
  • User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
  • Alarm Input: 2, alarm input (0-5 VDC)
  • Alarm Output: 2, alarm output (alarm response actions configurable)
  • Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input: 1, 3.5 mm Mic in/Line in interfaceLine input: 2 - 2.4 V [p-p], output impedance: 1 KO ± 10%
  • Audio Output: Linear level, impedance: 600 O
  • Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)
  • Analog Output: 1.0V [p-p]/75O, PAL/NTSC/BNC
  • Menu Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply: 24 VAC ± 25%, 12 VDC ± 25%, 24VDC ± 25%, two-core terminal blockPoE (802.3af, class 3)
  • Power Consumption: 24 VAC ± 25%: 0.8 A, Max.8.5 W12 VDC ± 25%: 0.7 A, Max.8.5 W24VDC ± 25%: 0.22A to 0.75 A, max. 18WPoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
  • Working Temperature/Humidity: Temperature: -40°C to 65°C (-40°F to 149°F)Humidity: 95% or less
  • Protection Level: IP67 StandardTVS 4000V lightning protection, surge protection, voltage transient protectionIK10-rated housing
  • Dimensions: 321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
  • VCA Range for Humans: 24 m
  • VCA Range for Vehicles: 72 m

Camera
  • Image Sensor: 1/2.7" Progressive Scan CMOS
  • Min. Illumination: 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR

Lens
  • Aperture: F 1.6

Video
  • Main Stream: Thermal:25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Video Compression: Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTPP,TLS
  • Simultaneous Live View: Up to 20 channels
  • API: ISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T), OTAP
  • Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect

General
  • Weight: 1550 g (3.41 lb)
  • General Function: Fire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter

Approval
  • EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 7)KC (KSC9832: 2019; KSC9835: 2019)FCC (ANSI C63.4;FCC Part15 sub B)
  • Safety: CB: IEC 62368-1: 2014+A11;CE-LVD: EN 62368-1: 2014/A11: 2017;UL: (CSA C22.2 No. 62368-1-14, 2nd Ed.)
  • Environment: CE-RoHS:2011/65/EU,WEEE: 2012/19/EU,Reach:Regulation(EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013IK10: IEC 62262-2002

Other
  • Resolution: 2688 × 1520
  • Pixel Pitch: 12 µm
  • Spectral Range: 8 µm to 14 µm
  • NETD: = 40 mK (@25° C,F# = 1.0)
  • Focal Length: 4.3 mm
  • IFOV: 3.33 mrad
  • Field of View: 84.0° ×43.1° (H × V)
  • Min. Focusing Distance: 0.5 m
  • Digital Zoom: ×2, ×4
  • Shutter Speed: 1 s to 1/100,000 s
  • White Balance: MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
  • Day & Night Mode: IR Cut Filter with Auto Switch
  • WDR: 120 dB
  • Bi-spectrum Image Fusion: Display the details of optical channel on thermal channel
  • Target Coloration: Yes. Supported in white hot and black hot mode.
  • IR Distance: Up to 30 m
  • IR Intensity and Angle: Automatically adjusted
  • White Light Range: Up to 30 m
  • Visual Alarm: Yes. White light alarm with adjustable flashing frequencies
  • Audio alarm: Yes, for three types of audible alarm (VCA and Temperature Exception)3 preset voice alerts (one for each)6 importable user-defined voice alerts (6 options shared in the two types)
  • VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
  • Temperature Range: -20°C to 550°C (-4°F to 1022°F);
  • Temperature Accuracy: Max (±2°C, ±2 %)
  • Sub-stream: Thermal:25 fps (704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (704 × 576, 352 × 288)60 Hz: 30 fps (704 × 480, 352 × 240)
  • Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
  • User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
  • Alarm Input: 2, alarm input (0-5 VDC)
  • Alarm Output: 2, alarm output (alarm response actions configurable)
  • Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input: 1, 3.5 mm Mic in/Line in interfaceLine input: 2 - 2.4 V [p-p], output impedance: 1 KO ± 10%
  • Audio Output: Linear level, impedance: 600 O
  • Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)
  • Analog Output: 1.0V [p-p]/75O, PAL/NTSC/BNC
  • Menu Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply: 24 VAC ± 25%, 12 VDC ± 25%, 24VDC ± 25%, two-core terminal blockPoE (802.3af, class 3)
  • Power Consumption: 24 VAC ± 25%: 0.8 A, Max.8.5 W12 VDC ± 25%: 0.7 A, Max.8.5 W24VDC ± 25%: 0.22A to 0.75 A, max. 18WPoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
  • Working Temperature/Humidity: Temperature: -40°C to 65°C (-40°F to 149°F)Humidity: 95% or less
  • Protection Level: IP67 StandardTVS 4000V lightning protection, surge protection, voltage transient protectionIK10-rated housing
  • Dimensions: 321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
  • VCA Range for Humans: 24 m
  • VCA Range for Vehicles: 72 m
