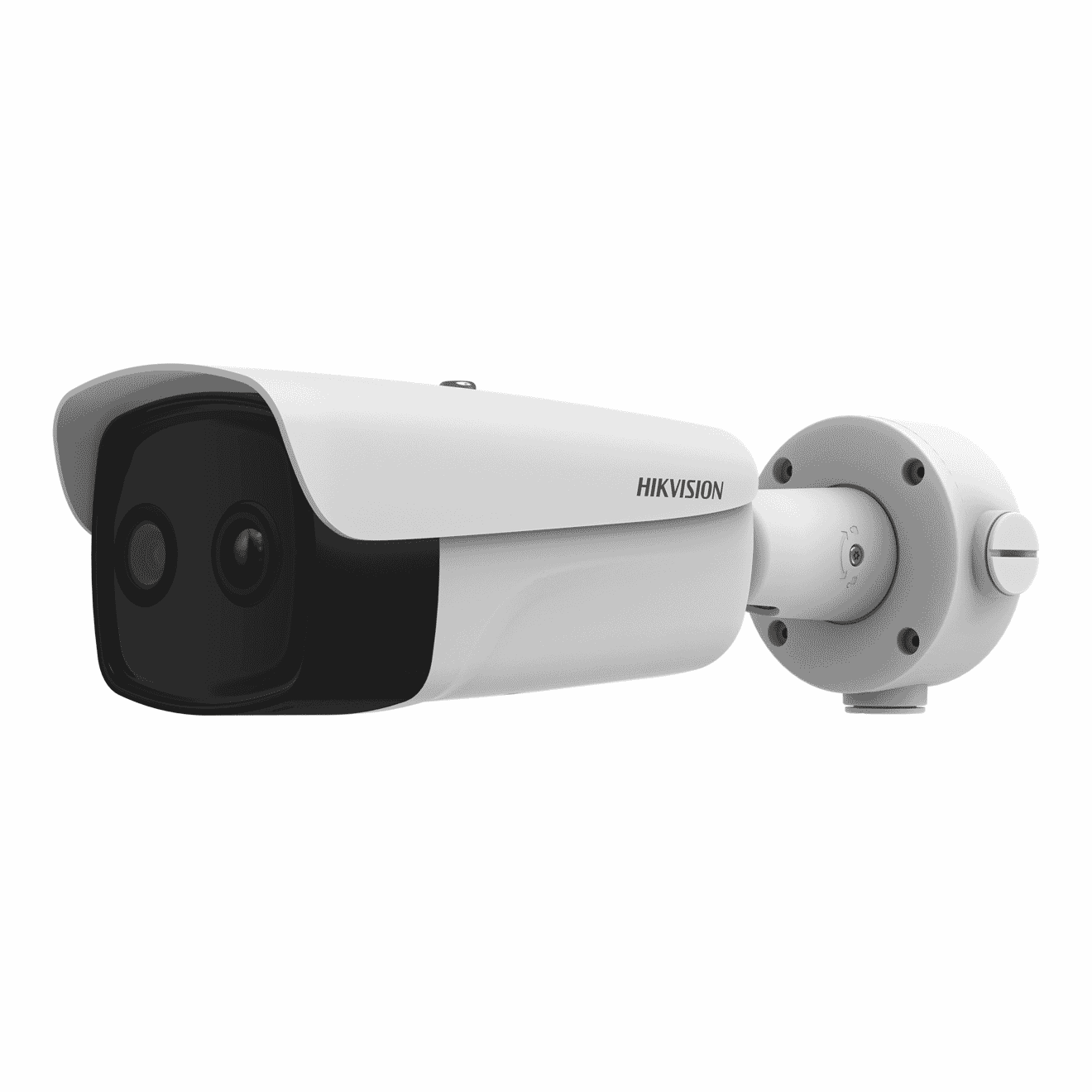

Hikvision DS-2TD2637T-7/QY, 384×288 6.5mm Bi-spectrum Bullet Camera

Hikvision DS-2TD2637T-7/QY, 384×288 6.5mm Bi-spectrum Bullet Camera

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 2MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2TD2637T-7/QY, 384×288 6.5mm Bi-spectrum Bullet Camera
Login to View Price

Specifications

  • Image Sensor: 1/2.7" Progressive Scan CMOS
  • Min. Illumination: 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
  • Aperture: F1.0
  • Main Stream: Optical channel50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)Thermal channel25 fps (1280×720P, 704×576, 352×288, 384×288)
  • Video Compression: Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,SSL
  • Simultaneous Live View: Up to 20 channels
  • API: ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T), OTAP
  • Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • Network Storage: MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect
  • Weight: 1.82 kg (4.01 lb)
  • EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 7)KC (KSC9832: 2019; KSC9835: 2019)FCC (ANSI C63.4;FCC Part15 sub B)
  • Safety: CB: IEC 62368-1: 2014+A11;CE-LVD: EN 62368-1: 2014/A11: 2017;UL: (CSA C22.2 No. 62368-1-14, 2nd Ed.)
  • Environment: CE-RoHS:2011/65/EU,WEEE: 2012/19/EU,Reach:Regulation(EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013IK10: IEC 62262-2002
  • Resolution: 2688 × 1520
  • Pixel Pitch: 17 µm
  • Spectral Range: 8 µm to 14 µm
  • NETD: = 35 mK (@25° C,F# = 1.0)
  • Focal Length: 4 mm
  • IFOV: 2.62 mrad
  • Field of View: 84.4° × 51.1° (H × V)
  • Min. Focusing Distance: 0.6 m
  • Digital Zoom: ×2, ×4
  • Shutter Speed: 1 s to 1/100,000 s
  • White Balance: MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
  • Day & Night Mode: IR Cut Filter with Auto Switch
  • WDR: 120 dB
  • Bi-spectrum Image Fusion: Display the details of optical channel on thermal channel
  • Target Coloration: Yes. Supported in white hot and black hot mode.
  • IR Distance: Up to 40 m
  • IR Intensity and Angle: Automatically adjusted
  • VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
  • Temperature Range: - 20 °C to 550 °C (- 4 °F to 1022 °F)
  • Temperature Accuracy: Max (± 2 °C, ±2 %)
  • Fire Detection: Dynamic fire detection, up to 10 fire points detectable
  • Smoking Detection: Up to 10 smoking points detected
  • Smoke Detection: Support smoke detection on optical channel
  • Sub-stream: Optical channel50 HZ: 25 fps (704 × 576, 352 × 288)60 HZ: 30 fps (704 × 480, 352 × 240)Thermal channel25 fps (704 × 576, 352 × 288, 384 × 288)
  • Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
  • Color Palettes: 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
  • User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
  • Alarm Input: 2, alarm input (0-5 VDC)
  • Alarm Output: 2, alarm output (alarm response actions configurable)
  • Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input: 1, 3.5 mm Mic in/Line in interfaceLine input: 2 - 2.4 V [p-p], output impedance: 1 KO ± 10%
  • Audio Output: Linear level, impedance: 600 O
  • Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)
  • Analog Output: 1.0V [p-p]/75O, PAL/NTSC/BNC
  • Menu Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply: 24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal blockPoE (802.3af, class 3)
  • Power Consumption: 24 VAC ± 25%: 0.8 A to 0.5 A, max. 9.5 W12 VDC ± 25%: 0.63 A to 1.06 A, max. 9 W24VDC: 0.4A, max 9.5WPoE (802.3af, class 3): 36 V to 57 V, 0.28 A to 0.17 A, max. 10 W
  • Working Temperature/Humidity: Temperature: -40°C to 65°C (-40°F to 149°F)Humidity: 95% or less
  • Protection Level: IP67 StandardIK10-rated housingTVS 4000V lightning protection, surge protection, voltage transient protectionNEMA 4X anti-corrosion housing
  • Dimensions: 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
  • VCA Range for Humans: 49 m
  • VCA Range for Vehicles: 147 m
  • Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)

Camera
  • Image Sensor: 1/2.7" Progressive Scan CMOS
  • Min. Illumination: 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR

Lens
  • Aperture: F1.0

Video
  • Main Stream: Optical channel50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)Thermal channel25 fps (1280×720P, 704×576, 352×288, 384×288)
  • Video Compression: Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,SSL
  • Simultaneous Live View: Up to 20 channels
  • API: ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T), OTAP
  • Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • Network Storage: MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect

General
  • Weight: 1.82 kg (4.01 lb)

Approval
  • EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 7)KC (KSC9832: 2019; KSC9835: 2019)FCC (ANSI C63.4;FCC Part15 sub B)
  • Safety: CB: IEC 62368-1: 2014+A11;CE-LVD: EN 62368-1: 2014/A11: 2017;UL: (CSA C22.2 No. 62368-1-14, 2nd Ed.)
  • Environment: CE-RoHS:2011/65/EU,WEEE: 2012/19/EU,Reach:Regulation(EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013IK10: IEC 62262-2002

Other
  • Resolution: 2688 × 1520
  • Pixel Pitch: 17 µm
  • Spectral Range: 8 µm to 14 µm
  • NETD: = 35 mK (@25° C,F# = 1.0)
  • Focal Length: 4 mm
  • IFOV: 2.62 mrad
  • Field of View: 84.4° × 51.1° (H × V)
  • Min. Focusing Distance: 0.6 m
  • Digital Zoom: ×2, ×4
  • Shutter Speed: 1 s to 1/100,000 s
  • White Balance: MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
  • Day & Night Mode: IR Cut Filter with Auto Switch
  • WDR: 120 dB
  • Bi-spectrum Image Fusion: Display the details of optical channel on thermal channel
  • Target Coloration: Yes. Supported in white hot and black hot mode.
  • IR Distance: Up to 40 m
  • IR Intensity and Angle: Automatically adjusted
  • VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
  • Temperature Range: - 20 °C to 550 °C (- 4 °F to 1022 °F)
  • Temperature Accuracy: Max (± 2 °C, ±2 %)
  • Fire Detection: Dynamic fire detection, up to 10 fire points detectable
  • Smoking Detection: Up to 10 smoking points detected
  • Smoke Detection: Support smoke detection on optical channel
  • Sub-stream: Optical channel50 HZ: 25 fps (704 × 576, 352 × 288)60 HZ: 30 fps (704 × 480, 352 × 240)Thermal channel25 fps (704 × 576, 352 × 288, 384 × 288)
  • Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
  • Color Palettes: 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
  • User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
  • Alarm Input: 2, alarm input (0-5 VDC)
  • Alarm Output: 2, alarm output (alarm response actions configurable)
  • Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input: 1, 3.5 mm Mic in/Line in interfaceLine input: 2 - 2.4 V [p-p], output impedance: 1 KO ± 10%
  • Audio Output: Linear level, impedance: 600 O
  • Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)
  • Analog Output: 1.0V [p-p]/75O, PAL/NTSC/BNC
  • Menu Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply: 24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal blockPoE (802.3af, class 3)
  • Power Consumption: 24 VAC ± 25%: 0.8 A to 0.5 A, max. 9.5 W12 VDC ± 25%: 0.63 A to 1.06 A, max. 9 W24VDC: 0.4A, max 9.5WPoE (802.3af, class 3): 36 V to 57 V, 0.28 A to 0.17 A, max. 10 W
  • Working Temperature/Humidity: Temperature: -40°C to 65°C (-40°F to 149°F)Humidity: 95% or less
  • Protection Level: IP67 StandardIK10-rated housingTVS 4000V lightning protection, surge protection, voltage transient protectionNEMA 4X anti-corrosion housing
  • Dimensions: 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
  • VCA Range for Humans: 49 m
  • VCA Range for Vehicles: 147 m
  • Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
