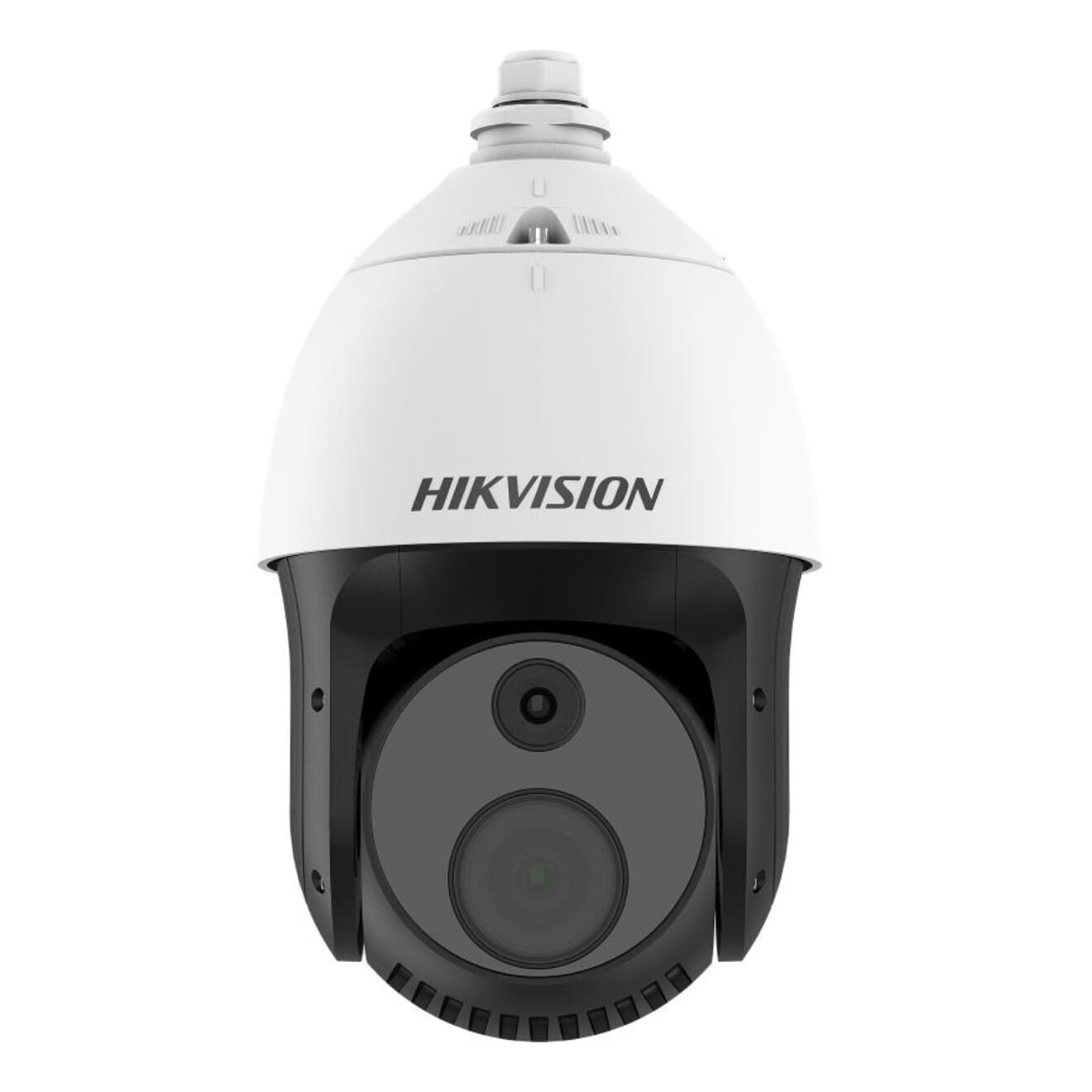

Hikvision DS-2TD4228-7/S2 256 × 192 7mm Thermal & Optical Bi-spectrum Network Speed Dome

Hikvision DS-2TD4228-7/S2 256 × 192 7mm Thermal & Optical Bi-spectrum Network Speed Dome

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 2MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2TD4228-7/S2 256 × 192 7mm Thermal & Optical Bi-spectrum Network Speed Dome
Login to View Price

Specifications

  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Min. Illumination: Color: 0.05 Lux @(F1.2,AGC ON), B/W: 0.01 Lux @(F1.2,AGC ON)
  • Aperture: F1.0
  • Main Stream: Optical channel50 Hz:25 fps (2688 × 1520,1920×1080, 1280×960, 1280×720)60 Hz:30 fps (2688 × 1520,1920×1080, 1280×960, 1280×720)Thermal channel25 fps (1280×720, 704 × 576, 640 ×512, 256× 192)
  • Video Compression: Main stream: H.265+/H.265/H.264+/ H.264Sub-stream: H.265/H.264/MJPEG
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Simultaneous Live View: Up to 20 channels
  • API: ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
  • Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect
  • Web Browser: Live view (plug-in allowed) : Internet Explorer 11Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +Local service : Chrome 57.0+, Firefox 52.0 +
  • Dimension: 305 mm × 185 mm × 163 mm (12.01 " × 7.28 " × 6.42 ")
  • Weight: Approx. 3.9Kg (8.6lb)
  • Resolution: 2688 × 1520, 4 MP
  • Pixel Interval: 12 µm
  • Response Waveband: 8 µm to 14 µm
  • NETD: Less than 35 mK (@25 °C,F#=1.0)
  • Focal Length: 4.8-153 mm, 32x
  • Focus Mode: Auto/Semi-auto/Manual
  • IFOV: 1.71 mrad
  • Field of View: 58.8° × 34.4° (H × V) to 2.18° × 1.2° (H × V)
  • Min. Focusing Distance: 1.0m
  • Digital Zoom: ×2, ×4, ×8
  • Aperture (Range): F1.2-F4.4
  • Shutter Speed: 1s to 1/100,000s
  • WDR: 120 dB
  • Optical Defog: No, support algorithmic defog
  • Picture in Picture: Display partial image of thermal channel on the full screen of optical channel
  • Target Coloration: Supported in white hot and black hot mode.
  • Movement Range: Pan: 360° Continuous Rotate; Tilt: From -5° to + 90° (auto flip)
  • Pan Speed: Configurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s
  • Tilt Speed: Configurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s
  • Proportional Zoom: Yes
  • Presets: 300 in total, 273 are configurable.
  • Patrol Scan: 8; Up to 32 Presets Per Patrol
  • Pattern Scan: 4; More Than 10 Minutes Per Pattern
  • Power Off Memory: Yes
  • Park: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • PT Status: Turn On/Turn Off
  • Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
  • IR Distance: Up to 100m
  • IR Intensity and Angle: Automatically adjusted
  • VCA: Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
  • Temperature Measurement: Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
  • Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F)
  • Temperature Accuracy: ± 8 °C (±14.4 °F)
  • Fire Detection: Dynamic fire detection, up to 10 fire points detectable.
  • Sub-stream: Optical channel50 Hz:25 fps (704 × 576, 352 × 288)60 Hz:30 fps (704 × 576, 352 × 288)Thermal channel25 fps (704 × 576, 640 ×512, 256 × 192)
  • Audio Compression: G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
  • Alarm Input: 7-ch inputs (0-3.3 VDC)
  • Alarm Output: 2-ch relay outputs, alarm response actions configurable
  • Alarm Action: Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
  • Audio Input: LINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KO±10%
  • Audio Output: Linear Level; Impedance: 600 O
  • Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface
  • Analog Video Output: 1.0 V [p-p]/75 O
  • Web Client Language: 32 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply: 24VAC ± 20%, two-core terminal block36VDC ± 20%, two-core terminal block48VDC ± 20%, two-core terminal blockHi-PoE
  • Power Consumption: Max 30 W
  • Working Temperature/Humidity: -40°C to 70°C (-40°F to 158°F), 90% or less
  • Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • VCA Range for Humans: 56 m
  • VCA Range for Vehicles: 168 m

Camera
  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Min. Illumination: Color: 0.05 Lux @(F1.2,AGC ON), B/W: 0.01 Lux @(F1.2,AGC ON)

Lens
  • Aperture: F1.0

Video
  • Main Stream: Optical channel50 Hz:25 fps (2688 × 1520,1920×1080, 1280×960, 1280×720)60 Hz:30 fps (2688 × 1520,1920×1080, 1280×960, 1280×720)Thermal channel25 fps (1280×720, 704 × 576, 640 ×512, 256× 192)
  • Video Compression: Main stream: H.265+/H.265/H.264+/ H.264Sub-stream: H.265/H.264/MJPEG
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Simultaneous Live View: Up to 20 channels
  • API: ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
  • Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect
  • Web Browser: Live view (plug-in allowed) : Internet Explorer 11Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +Local service : Chrome 57.0+, Firefox 52.0 +

General
  • Dimension: 305 mm × 185 mm × 163 mm (12.01 " × 7.28 " × 6.42 ")
  • Weight: Approx. 3.9Kg (8.6lb)

Other
  • Resolution: 2688 × 1520, 4 MP
  • Pixel Interval: 12 µm
  • Response Waveband: 8 µm to 14 µm
  • NETD: Less than 35 mK (@25 °C,F#=1.0)
  • Focal Length: 4.8-153 mm, 32x
  • Focus Mode: Auto/Semi-auto/Manual
  • IFOV: 1.71 mrad
  • Field of View: 58.8° × 34.4° (H × V) to 2.18° × 1.2° (H × V)
  • Min. Focusing Distance: 1.0m
  • Digital Zoom: ×2, ×4, ×8
  • Aperture (Range): F1.2-F4.4
  • Shutter Speed: 1s to 1/100,000s
  • WDR: 120 dB
  • Optical Defog: No, support algorithmic defog
  • Picture in Picture: Display partial image of thermal channel on the full screen of optical channel
  • Target Coloration: Supported in white hot and black hot mode.
  • Movement Range: Pan: 360° Continuous Rotate; Tilt: From -5° to + 90° (auto flip)
  • Pan Speed: Configurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s
  • Tilt Speed: Configurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s
  • Proportional Zoom: Yes
  • Presets: 300 in total, 273 are configurable.
  • Patrol Scan: 8; Up to 32 Presets Per Patrol
  • Pattern Scan: 4; More Than 10 Minutes Per Pattern
  • Power Off Memory: Yes
  • Park: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • PT Status: Turn On/Turn Off
  • Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
  • IR Distance: Up to 100m
  • IR Intensity and Angle: Automatically adjusted
  • VCA: Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
  • Temperature Measurement: Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
  • Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F)
  • Temperature Accuracy: ± 8 °C (±14.4 °F)
  • Fire Detection: Dynamic fire detection, up to 10 fire points detectable.
  • Sub-stream: Optical channel50 Hz:25 fps (704 × 576, 352 × 288)60 Hz:30 fps (704 × 576, 352 × 288)Thermal channel25 fps (704 × 576, 640 ×512, 256 × 192)
  • Audio Compression: G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
  • Alarm Input: 7-ch inputs (0-3.3 VDC)
  • Alarm Output: 2-ch relay outputs, alarm response actions configurable
  • Alarm Action: Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
  • Audio Input: LINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KO±10%
  • Audio Output: Linear Level; Impedance: 600 O
  • Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface
  • Analog Video Output: 1.0 V [p-p]/75 O
  • Web Client Language: 32 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply: 24VAC ± 20%, two-core terminal block36VDC ± 20%, two-core terminal block48VDC ± 20%, two-core terminal blockHi-PoE
  • Power Consumption: Max 30 W
  • Working Temperature/Humidity: -40°C to 70°C (-40°F to 158°F), 90% or less
  • Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • VCA Range for Humans: 56 m
  • VCA Range for Vehicles: 168 m
